Aanbieding!

ACME GO 44 Portable VMix Live Switching And Streaming Solution With VMix HD

Oorspronkelijke prijs was: 328,00 €.Huidige prijs is: 98,99 €.

The Acme GO 44 Portable Live Production Solution is a complete portable live production studio with built-in display for live switching and streaming. Mix HD and NDI video sources including mixed resolutions and framerates, along with embedded and separate analog audio.

All-in-One Live Switching and Streaming
Built-In 17.3″ Screen w/ Removable Cover
4 x HD-SDI + 4 x HDMI
2 XLR/TRS Inputs, 2 XLR Outputs

Artikelnummer: AC-GO44 Categorieën: Encoders for Live Streaming, Live Streaming, Mobile Encoder Systems

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

ACME GO 44 Portable vMix Live Production Solution with vMix HD

Name: Winkel de Beste Deals: Betaalbare ACME GO 44 Portable VMix Live Switching And Streaming Solution With VMix HD in de Uitverkoop bij Beveiligingcamera.com.
SKU: AC-GO44
Price: 98.99 EUR
Availability: InStock

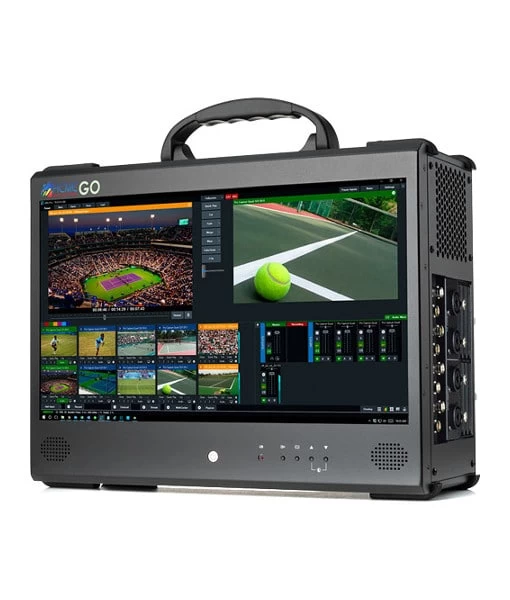

Acme Video Solutions GO 44 Portable Live Production Solution is a complete portable live production studio with built-in 17.3″ LCD. Mix HD video sources including mixed resolutions and framerates, along with embedded and separate analog audio. Stream output live to the Web in widely supported formats. Recording high-quality program feeds is easy, while optional (not included) removable SSDs media storage drives let you record up to eight ISO (isolated) channels from the SDI inputs, giving a producer the ability to re-edit later on.

The Windows-based switcher comes with vMix streaming and mixing software and a 4-port SDI I/O capture device, a 4-port HDMI I/O capture device, plus a two-in / two-out XLR/TRS audio interface. Driving the software is an Intel Core i7 CPU along with an NVIDIA GTX 2060 6GB graphics card, 16GB of RAM, and a 250GB SSD drive. In addition to the built-in display, users can connect additional high-resolution displays via HDMI and DisplayPort outputs. This provides a multiview function, program monitoring, and easy access to other Windows applications. The workstation includes a keyboard and mouse for basic control. For portability, the system comes with a padded, wheeled transit case to conveniently store and transport.

Built-In Display

A built-in display allows for a compact, portable rig on-site with the ability to add one or two additional LCD displays via DVI, HDMI, or DisplayPort for Multiviewer and other application access.

Capture Cards

The Acme GO 4/4 is equipped with four HD-SDI inputs (up to two of which can be used as outputs instead) on an AJA capture card and four HDMI inputs on a Magewell capture card allowing up to eight live sources. You can also group four SDI inputs together to provide a single 4K input. Using two of the SDI ports as outputs, producers can send multiple high-resolution feeds. For example, a “dirty” version complete with overlays for broadcast, and a “clean” version for recording and reuse later. Alternatively, one output can be dedicated to connect a broadcast-grade preview monitor to supplement the GO’s built-in screen.

Removable SSD Slots for ISO Recording

The Acme GO 4/4 gives you four removable SSD storage slots enabling ISO recording of all inputs when fully populated—SSD drives are available separately. When you are finished, simply unplug the drives and easily move your footage to another machine for post-production or archiving.

Balanced XLR/TRS Audio I/O

A pair of balanced XLR/TRS combo jack inputs allow the switcher to bring in additional audio from professional sources, on top of up to 16 channels of embedded SDI audio. These inputs are accompanied by two XLR outputs for local monitoring. There is also an unbalanced 3.5mm audio input, and add external USB audio interfaces to increase the total number of available inputs.

KEY FEATURES ACME GO 4/4

All-in-One Live Switching and Streaming
Up to 4 In/Out HD SDI with all SD/HD/2K x 1080/4K video formats at 48p, 50p and 60p frame rates
4 HDMI 1.4a Input up to 10bit 2048×2160 resolution, with RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Built-In 17.3″ Screen w/ Removable Cover
2 XLR/TRS Inputs, 2 XLR Outputs
SDI Supports 16-Channel Embedded Audio
Removable Drives for data disks
Chroma Key and Live Video Effects
250GB SSD System Drive
Wheeled Transit Case Included
vMix HD Edition included
Including 1 year Premium vMix Support (from Streaming Valley, authorised vMix Partner)

SPECIFICATIONS ACME GO 4/4

Computer
CPU	Intel i7-10700K, 8 Core, 3,8 – 5.10 GHz
GPU	MSI GeForce RTX 3060 Ti 8G
Memory	16 GB DDR4
System Drive	250GB M.2 SSD System Drive
Media Storage	Not Included

Display
Size	17.3″
Brightness	300 cd/m²
Contrast Ratio	400:1
Response Time	8 ms

Connectivity

Inputs

Video:
4 x HD-SDI on BNC with embedded audio
4 x HDMI with embedded audio

Audio:
2x Balanced Neutrik XLR/TRS combo jack audio inputs & outputs, 1/8″ Stereo Line-in, 16-channel SDI embedded; compatible with USB (Focusrite, MOTU, M-Audio, Zoom audio etc.)

Outputs

Video:
2 x HD-SDI on BNC with up to 16-channel embedded audio

GPU:
1 x HDMI
1 x DisplayPort

Audio:
2 x XLR jack
1 x 3.5 mm unbalanced stereo

Supported Formats
Supported Resolutions	4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B 3840 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B 1080p: 23.98, 24, 25, 29.97, 30 1080PsF: 23.98, 24, 25, 29.97, 30 1080i: 25, 29.97, 30 720p: 50, 50.94, 60 525i: 29.97 / 625i 25
