ACME GO 4K Portable Live Production Solution With VMix 4K

ACME GO 4K Portable Live Production Solution with vMix 4K

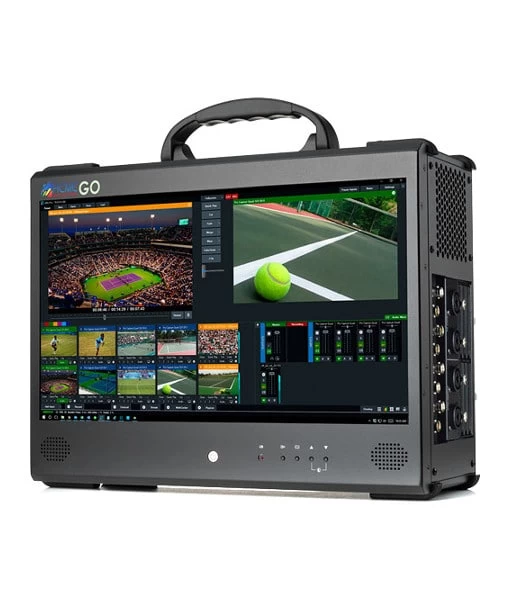

The Acme GO 4K Portable Live Production Solution is a complete portable live production studio with built-in 17.3″ LCD. Mix NDI, HD and 4K video sources including mixed resolutions and framerates, along with embedded and separate analog audio. Stream output live to the Web in RTMP, WMA, Flash, and other widely supported formats. Recording high-quality program feeds is easy, while optional (not included) removable SSDs media storage drives let you record up to eight ISO (isolated) channels from the SDI inputs, giving a producer the ability to re-edit later on.

KEY FEATURES

• All-in-One Live Switching and Streaming
• Up to 4 In/Out HD SDI with all SD/HD/2K x 1080/4K video formats at 48p, 50p and 60p frame rates
• 1x HDMI 1.4 Input up to 10bit 4096×2160 resolution, with RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling 297 MHz
• High Quality, Low Latency NDI sources
• 2 XLR/TRS Inputs, 2 XLR Outputs
• Removable Drives for data disks
• Built In 17.3” TrueColor Screen
• 4 x HD-SDI + 1 x 4K HDMI
• SDI Supports 16 Channel 24 bit Embedded Audio
• Simultaneous streaming, recording and output to SDI, NDI, RTSP, RTMP, Web browser and more
• Up to 8-Channel ISO Recording
• Chroma Key and Live Video Effects
• 250GB SSD System Drive
• Wheeled Transit Case Included
• vMix 4K Edition included
• Including 1 year Premium Support (from Streaming Valley, authorised vMix Partner)

SPECIFICATIONS ACME GO 4K

Computer
CPU	Intel Core i7-8700K
GPU	Nvidia GTX 2060 6GB
Memory	16GB DDR4 Memory
System Drive	250GB M.2 SSD System Drive
Media Storage	Not Included



Display
Size	17.3″
Brightness	300 cd/m²
Contrast Ratio	400:1
Response Time	8 ms



Connectivity

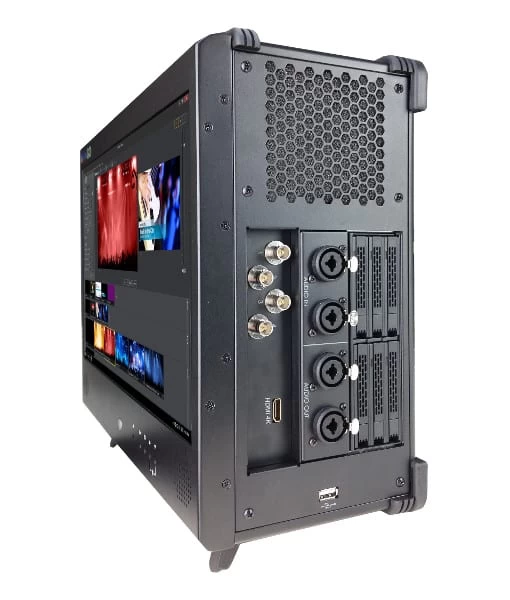

Inputs	Video: 4 x HD-SDI on BNC with embedded audio 1 x 4K HDMI with embedded audioAudio: 2 x balanced XLR/TRS combo jack 1 x 3.5 mm unbalanced stereo
Outputs	Video: 2 x HD-SDI on BNC with up to 16-channel embedded audioGPU: 1 x HDMI 1 x DisplayPortAudio: 2 x XLR jack 1 x 3.5 mm unbalanced stereo



Supported Formats
Supported Resolutions	4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B 3840 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B 1080p: 23.98, 24, 25, 29.97, 30 1080PsF: 23.98, 24, 25, 29.97, 30 1080i: 25, 29.97, 30 720p: 50, 50.94, 60 525i: 29.97 / 625i 25



General
Dimensions	14.1 x 16.5 x 7″ / 35.8 x 41.9 x 17.8 cm
Weight	22 lb / 10 kg

INCLUDED BY DEFAULT

• ACME GO 4K with Windows 10
• Bag with Handle and Wheels
• Wireless Keyboard and Mouse
• Power Cord
• 1 year Premium Support (from Streaming Valley, authorised vMix Partner)
