ACME 3 RU Rackmount vMix 8-Channel Switcher: Powerhouse for Live Video Production

Unleash the full potential of live broadcasting with the ACME 3 RU Rackmount vMix 8-Channel Switcher. Designed for efficiency and high performance, this device integrates seamlessly into any live production environment.

• Integrated Full Windows PC: At its core, a robust Windows PC powered by an Intel Xeon processor and equipped with NVIDIA RTX A5000 graphics, ensuring smooth and reliable video processing.

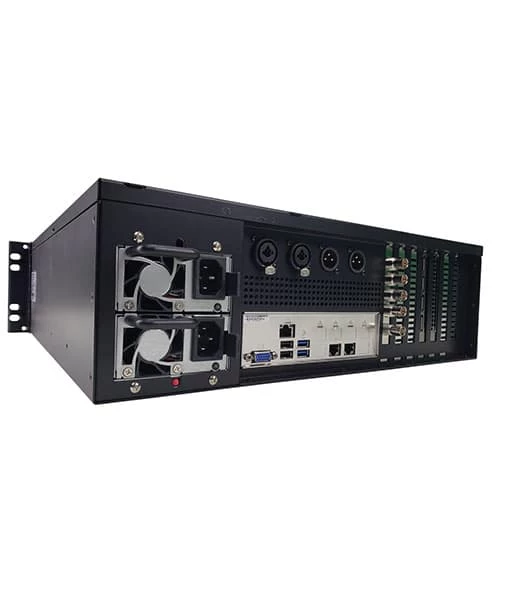

• Extensive I/O Capabilities: Features eight bidirectional SDI inputs/outputs for comprehensive video connectivity. Enhanced networking options with one IPMI LAN, two 10Gb LAN ports, and a VGA output for versatile setups.
• Advanced Audio Integration: Easily embed audio within SDI video inputs/outputs or utilize separate channels via XLR combo jacks. USB I/O supports additional storage and expands control options with extra hardware.
• Broad Software Compatibility: Ready for popular production software like vMix, Wirecast, and LiveStudio. This versatility makes the ACME RACK ideal for various settings, including worship houses, educational institutions, studios, and live events.
• Flexible Input Options: Benefit from eight 3G-SDI inputs allowing long cable runs and secure connections. Includes combo XLR-1/4″ audio inputs and XLR outputs for comprehensive audio management.
• Customizable to Your Needs: Tailor the system to your unique requirements. Contact us for a personalized solution and more information.

Transform your live video production with the ACME 3 RU Rackmount vMix 8-Channel Switcher – a perfect blend of performance and versatility.

KEY FEATURES

• All-in-One Live Switching and Streaming
• 8 x 3G-SDI Bidirectional Inputs/Outputs
• SDI Supports 16-Channel Embedded Audio
• Works with vMix, Wirecast, LiveStudio
• Intel Xeon 4310T 10 Core CPU
• RTX A5000 24 GB graphics card
• 32GB RAM
• 2 TB M2 NVMe disk
• Redundant power supply
• Dual 10Gb LAN Ports, 4 x USB Ports

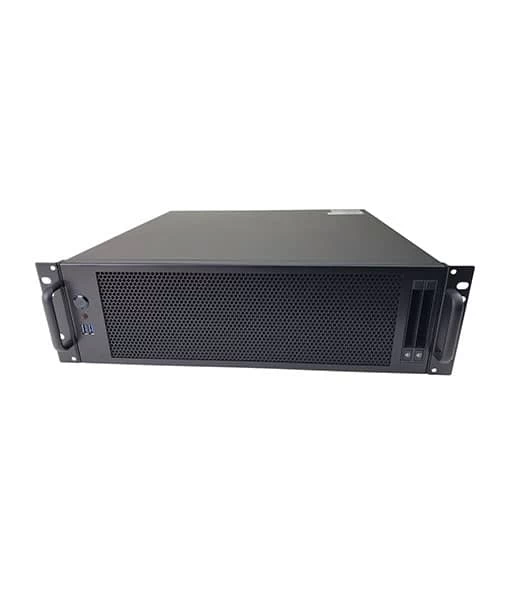

• 3 RU Rackmount Housing
• vMix Pro included
• Including 1 year Premium Support (from Streaming Valley, authorised vMix Partner)

SPECIFICATIONS

Model	ACME Go Rack 3U
Computer
CPU	Intel Xeon 4310T 10 Core CPU
GPU	RTX A5000 24 GB graphics card
Memory	32GB DDR4 Memory (max 2TB RAM)
System Drive	2 TB M2 NVMe disk
Removable Slots for Drives	2
Video and Audio I/O
Video inputs	8 x Bidirectional SD/HD/3G-SDI Single black burst/tri-sync reference input
Resolution	Resolutions up to 1080p60
Output Video Format	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/50/59.94 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 60 fps PAL (768 x 576): 50 fps
Audio inputs	2 x balanced XLR/TRS combo jack Supports 16 channels of embedded audio per input
Audio outputs	2 x balanced XLR/TRS combo jack Supports 16 channels of embedded audio per output
Input Video Format	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 60 fps PAL: 50 fps
Mainboard I/O
Ethernet	2 RJ45 10 Gigabit Ethernet LAN ports
Serial	1 COM Port(s) (1 header)
USB	4 USB 2.0 port(s) (2 rear; 2 via header) 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Display	1 VGA D-Sub Connector port(s)
General
Dimensions	482.6 x 436.12 x 132.59 mm
Warranty	1 year

INCLUDED BY DEFAULT

• ACME VIDEO SOLUTIONS vMix Pro 3U RACK 8-Channel Switcher
• 1 year Premium Support (from Streaming Valley, authorised vMix Partner)
