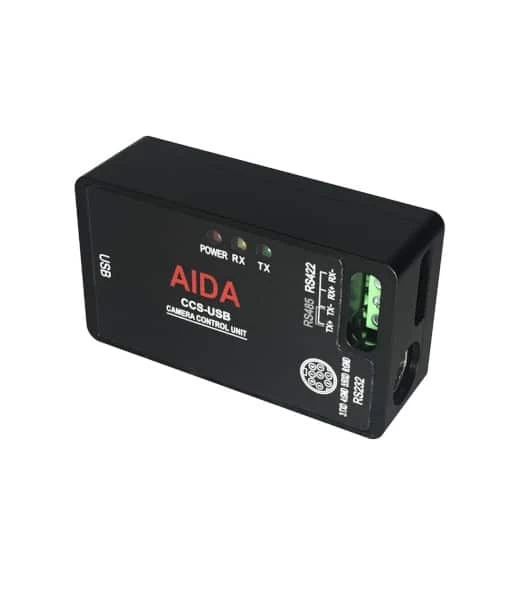

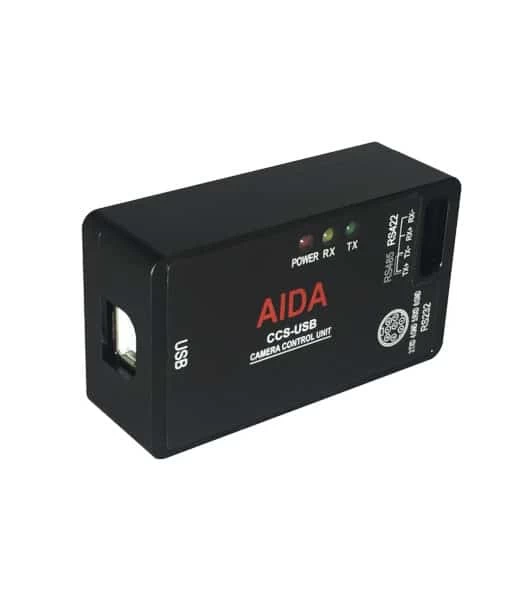

AIDA CCS-USB VISCA Camera Control Unit & Software
The CCS-USB camera control unit and software features multi serial port control (RS232, RS485, and RS422), making this the go-to software for all your camera control needs. Automatically set up your COM ports through connection to computer via USB. Control up to 7 primary cameras utilizing advanced SONY VISCA™ protocol and up to 255 cameras utilizing PELCO™ protocol. Compatible with Windows and Mac OSX™ operating systems. Includes an RS232 to Cross-RJ45 converter for longer communication relays when you need it most. Designed for mobility and versatility, the CCS-USB is the one CCS to control them all.
Features
- SONY VISCA Compatible and work with most of major VISCA protocol products.
- Support PELCO Pan / Tilt / Zoom / Focus protocol.
- Control up to 7 VISCA control cameras and 255 third party control cameras.

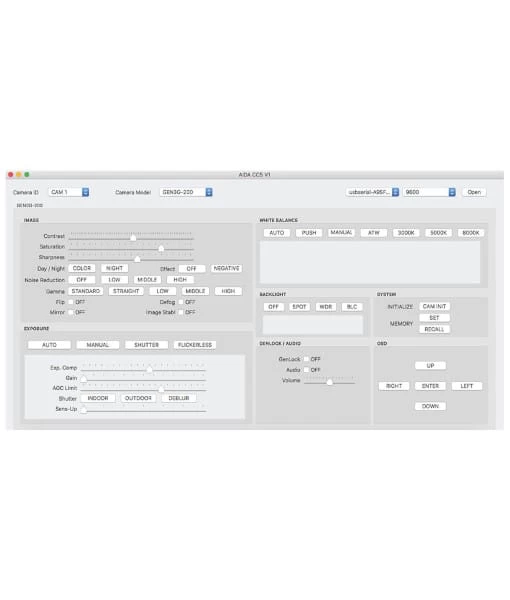

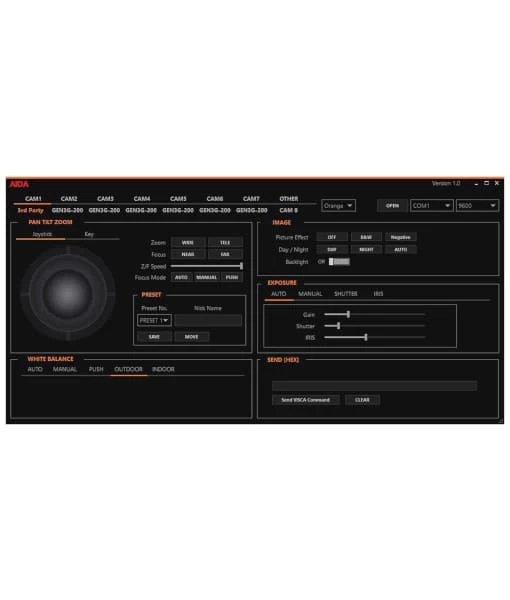

- User friendly software interface.
- Support RS-232, RS-485, RS-422.
- USB interface for easy installation.
- Windows and MAC OSX compatible.
- Compact and rugged design.
Specifications
Control
| Camera Interface | RS-232C RS-485/RS-422: Terminal Block Connector |
| Protocol | VISCA for Camera Settng up to 7 Cameras PELCO for Pan/Tilt/Zoom Control up to 255 Cameras |
| User Interface | Graphic User interface |
| PC interface | USB |
| Compatibility | All VISCA Protocol Camera All PELCO Protocol Camera |
Main Functions on VISCA Control
| Image | Contrast, Saturation, Sharpness, Gamma |
| Exposure | Auto, Shutter Priority, Iris Priority, Manual, Flickerless |
| White Balance | Auto, Manual, ATW |
| Backlight | WDR, BLC |
Physical
| Camera Control | RS-232C: 8 Pin Mini Din Connector RS-485/RS-422: Terminal Block Connector |
| Accessory | CBL-RJ45 (RS232 to Cross-RJ45 converter cable) |
| Operation Temp | 32° F – 104° F |
| Dimension | 62m x 35m x 19mm / 2.44″ x 1.37″ x 0.74″ |
| Weight | 50g / 0.11lbs |
| Power | USB Powered |
Connection
