AIDA GEN3G-200 3G-SDI / HDMI Full HD Genlock Camera With 4mm Fixed Lens

AIDA GEN3G-200 3G-SDI / HDMI FHD Genlock Camera with 4mm fixed lens

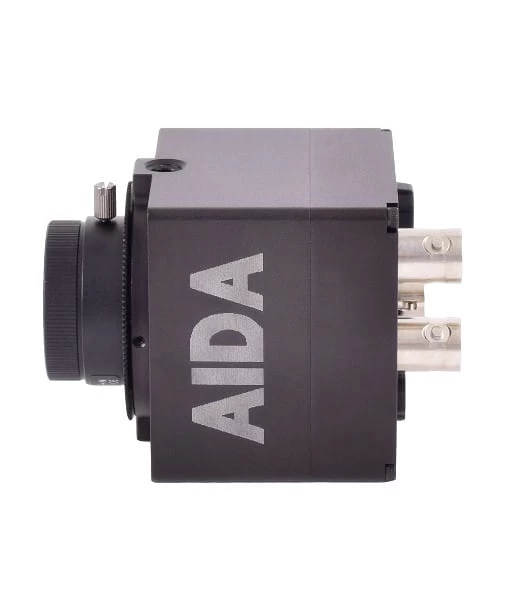

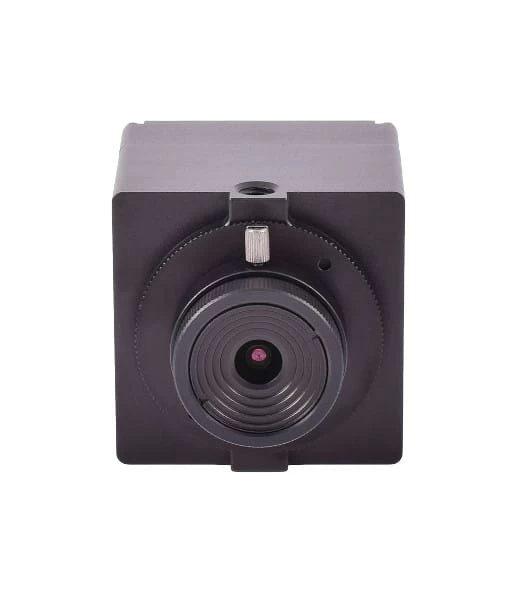

The 3G-SDI/HDMI Full HD Genlock Camera with 4mm Fixed Lens from AIDA Imaging is an ultracompact camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 1.5″ wide by 1.5″ tall and 3″ deep, this tiny camera can fit in a variety of spaces where a small footprint is advantageous such as a dashcam in a race car, or discretely in the corner of a surgical room. The camera captures HD video at up to 1080p60, and it features a C/CS mount for mounting interchangeable lenses and includes a 4mm lens with iris control.

The camera has a sync connector that enables syncing up to the sync signal in a broadcast facility and 3G-SDI and HDMI outputs that allow you to connect to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included breakout cable provides inputs for power, RS-485 control, and mic/line-level audio, which is embedded in the HDMI output. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools such as noise reduction, black-level adjustment, flicker detection as well as selecting the exposure mode. The camera body includes both a power and HDMI indicators, allowing you to confirm its operation at a glance. A 1/4″-20 mounting thread allows you options when mounting the camera.

KEY FEATURES

• Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
• Advanced digital image processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction.
• Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
• Tri level sync Genlock synchronizes GEN3 cameras and other system components for seamless vertical interval switching between sources.
• 3G/HD-SDI & HDMI seamless video performance.
• Compatible with other industry leading products, conforming with SMPTE 424M /292M standard.
• Self-Adaptive Resolution Feature captures your reference feed instantly.
• Black Level Set-up provides the better color transition from digital to analog.
• Auto White Balance and shutter speed provides the optimized performance in a variety of situations.

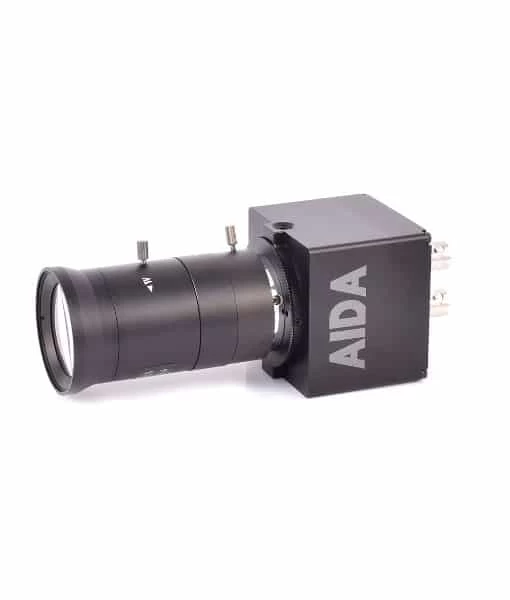

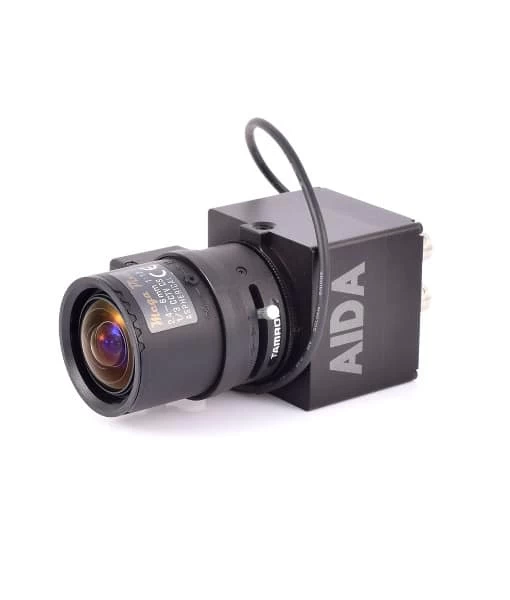

• Interchangeable lens design makes it compatible with auto-iris CS and C mount lenses.
• Flawlessly relays embedded audio via SDI & HDMI.
• Built-in OSD controls for customizable image settings.
• Versatile, compact, and rugged design.

SPECIFICATIONS AIDA GEN3G-200 3G-SDI / HDMI Full HD Genlock Camera

Image Sensor	1/3 inch Progressive CMOS
Sensor Size	5.346mm x 3.003mm (16:9)
Effective Pixels	Horizontal: 1920, Vertical: 1080
Pixel Size	2.75 µm x 2.75 µm
Resolution	1080p & 1080i: 1920 x 1080 720p & 720i: 1280 x 720
Resolution/Rate	1080 60p/59.94p/50p/30p/29.97p/ 25p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/25p
Output	HD-SDI/3G-SDI (1 BNC) HDMI 1.3a
Color Space	4:2:2 (YCbCr) 10bit
Min. Illumination	0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
White Balance	Auto & Manual (19,000 K – 11,000 K)



Lens

Lens	C/CS Mount (Default 3.6mm HD Lens)

Audio

Audio Input	3.5mm Analog Audio Input through I/O Cable
Sample Rate	16 / 24 / 32 Bits



Standard

SMPTE

SMPTE 292M, SMPTE 424M



Synchronization

Genlock

External Tri-Level Input



Physical

Camera Control	RS-485, OSD Button
Operation Temp	32° F – 104° F
Dimension	49mm x 49m x 71mm / 1.92” x 1.92” x 2.79” (With default 3.6mm Lens)
Weight	180g / 0.39Lbs (With default 3.6mm Lens)
Power	6W at 12VDC (+9 – +15VDC)

Connection



INCLUDED BY DEFAULT

• AIDA GEN3G-200 POV CAMERA
