AIDA HD-100A-IP67 FHD HDMI POV Weatherproof Camera With TRS Stereo Audio Input

AIDA HD-100A-IP67 FHD HDMI POV Weatherproof Camera with TRS Stereo Audio Input

The HD-100A-IP67 re-introduces our HD-100A in a hardened, weatherproof shell that protects it from dust, moisture, and the environment for your streaming adventures!

KEY FEATURES AIDA HD-100A-IP67

• Full HD Progressive Scan sensor captures sharp and vivid color under
  different light conditions.
• Advanced digital image processor provides vivid and detailed images
  by utilizing WDR, White Balance, and Noise Reduction.
• Motion-compensated temporal noise reduction filter leads to
  effective noise reduction for motion video without blur.
• HDMI seamless video performance.
• Black Level Set-up provides the better color transition from digital
  to analog.
• Auto White Balance and shutter speed provides the optimized
  performance in a variety of situations.

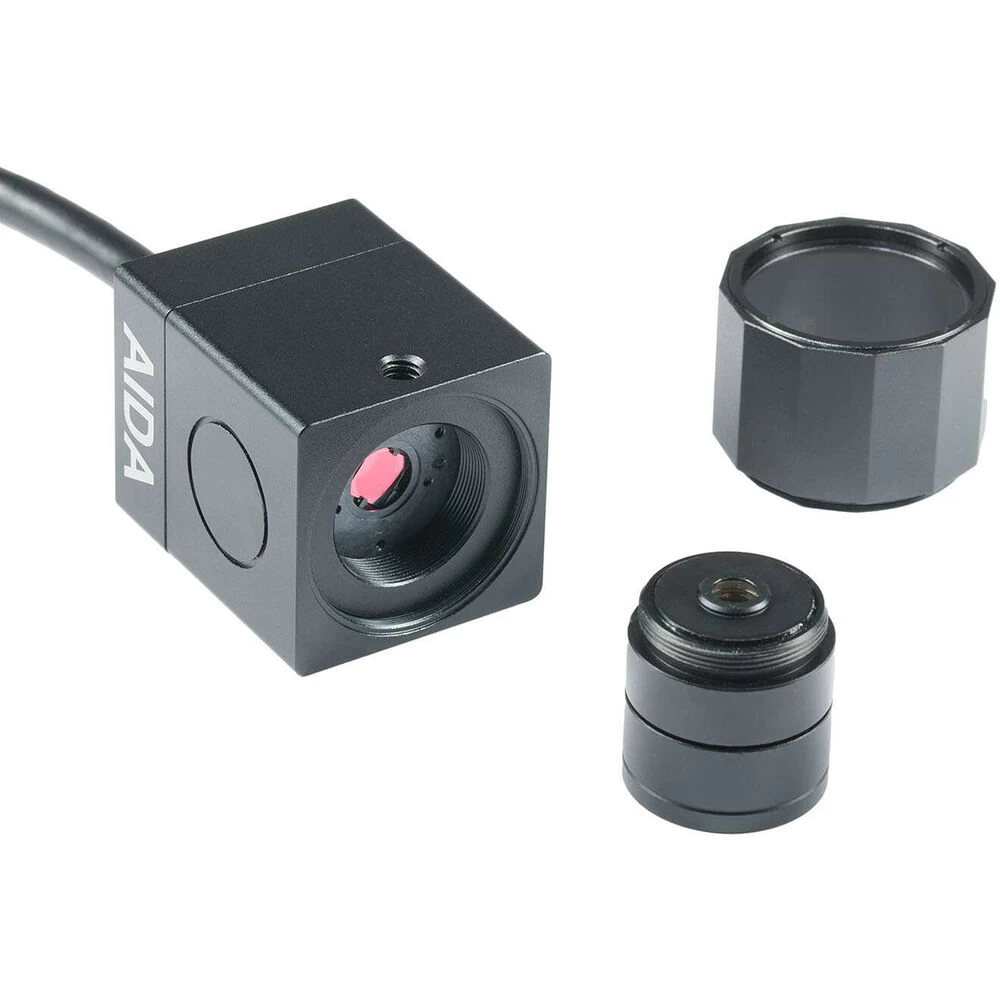

• Interchangeable lens design makes it compatible with auto-iris CS
  and C mount lenses.
• Built-in OSD controls for customizable image settings.
• Versatile, compact, and rugged design.
• With TRS Stereo Audio Input for embedded audio over HDMI.
• Weatherpoof cap and cabling allows IP67 rating of the camera.

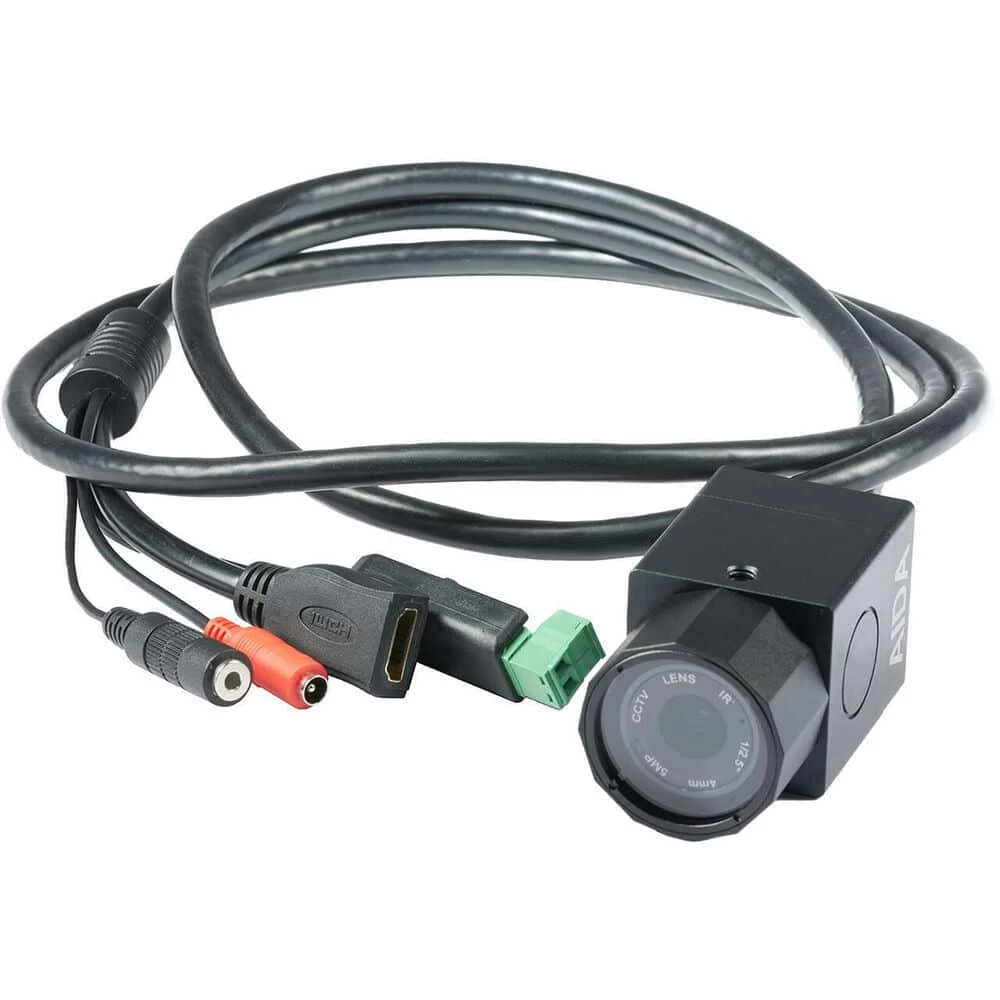

• 2M or 6ft cabling allows to keep non-weatherproof connection ends away
  from outdoor elements and submersion.

SPECIFICATIONS AIDA HD-100A-IP67

Image Sensor	1/3 inch Progressive CMOS
Sensor Size	Diagonal 7.2mm
Effective Pixels	Horizontal: 1920, Vertical: 1080
Pixel Size	2.75 µm x 2.75 µm
Resolution	1080p & 1080i: 1920 x 1080 720p & 720i: 1280 x 720
Resolution/Rate	1080 60p/59.94p/50p/30p/29.97p/25p/24p 1080 60i/59.94i/50i 720 60p/59.94p/50p
Output	HDMI 1.3a
Color Space	4:2:2 (YCbCr) 10bit
Min. Illumination	0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
White Balance	Auto & Manual (9,000 K – 11,000 K)

Audio

Input	3.5mm TRS Stereo Mic-in & Line in over I/O Cable
Sample Rate	16/24/32 Bits

Lens

Lens	C/CS Mount (Default 4mm HD Lens)

Physical

Camera Control	RS-485 VISCA, OSD Button
Operation Temp
Dimension	39mm x 39mm x 50.50mm  (With default 4mm Lens)
Weight	180g / 0.39lbs (With default 4mm Lens)
Power	6W at 12VDC (+9 – +15VDC)

INCLUDED BY DEFAULT

• AIDA HD-100A IP67 FULL HD HDMI POV Camera
• 4MM Lens
