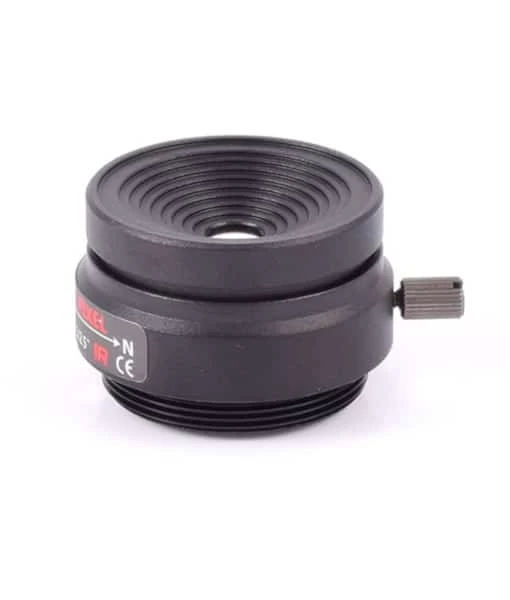

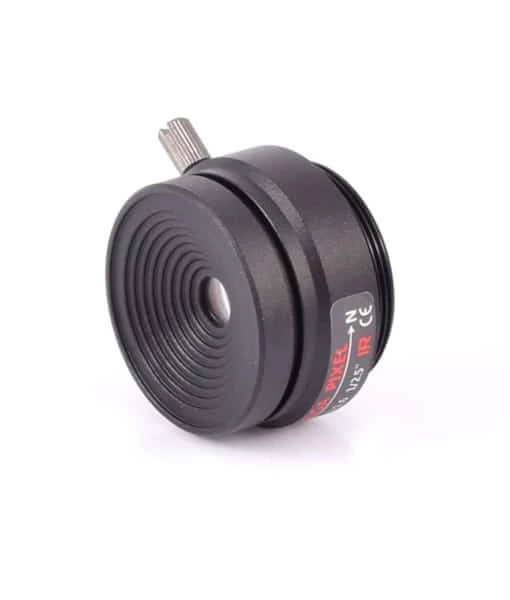

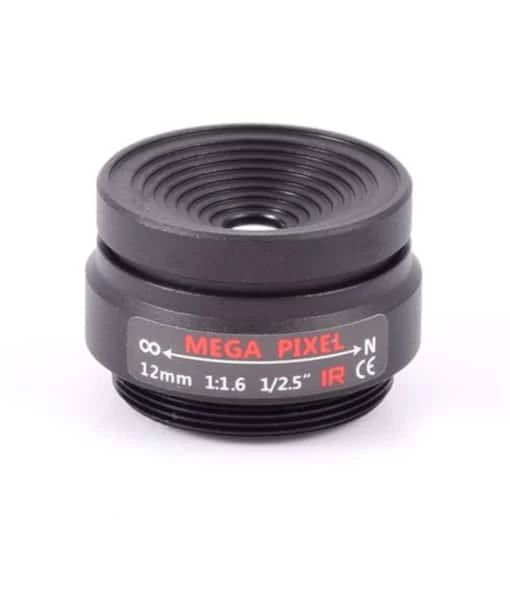

AIDA Imaging CS-12F – 12mm F/1.6 CS-Mount Lens

AIDA Imaging CS-12F – 12mm f/1.6 CS-Mount Lens

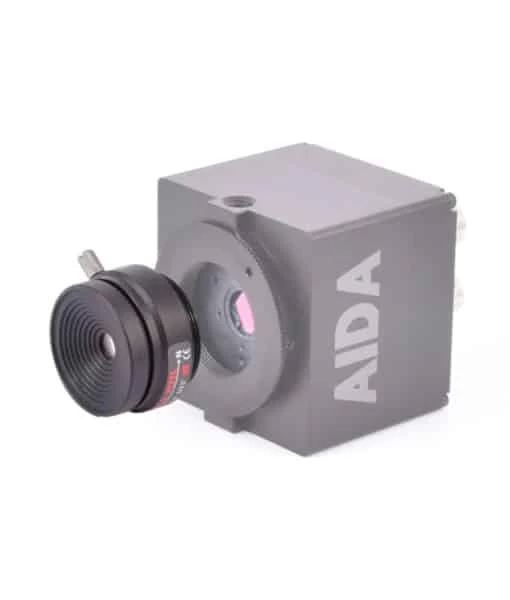

The AIDA Imaging 12mm f/1.6 CS Mount Lens is designed for cameras that use a 1/3″-type sensor and optimized for AIDA Imaging GEN series cameras that use a CS mount. On a camera that uses a 1/2.5″-type sensor, this lens will yield a 30.8° angle-of-view.

KEY FEATURES

• For 1/3″-Type Cameras
• Fixed f/1.6 Aperture
• Optimized for GEN Series Cameras

SPECIFICATIONS

Focal Length	12mm
Aperture	f/1.6
Focus Adjustment	Manual
Iris	Fixed
Horizontal Field-of-View	1/2.5″: 30.8° 1/2.8″: 27° 1/3.2″: 15.4°
Image Format	Max.: 1/2.5″ sensor
Distortion	1.5% (with 1/2.5″ sensor)
Mount Type	CS
Operating Temperature	-20 to 60°C
Dimensions	Length: 0.81″ / 21 mm Diameter: 1.2″ / 30 mm
Weight	27g

INCLUDED BY DEFAULT

• AIDA Imaging CS-12F – 12mm f/1.6 CS-Mount Lens
