AIDA Imaging CS-2812V – CS-Mount 2.8-12mm Varifocal 3 Megapixel Lens

AIDA Imaging CS-2812V – CS-Mount 2.8-12mm Varifocal 3 Megapixel Lens

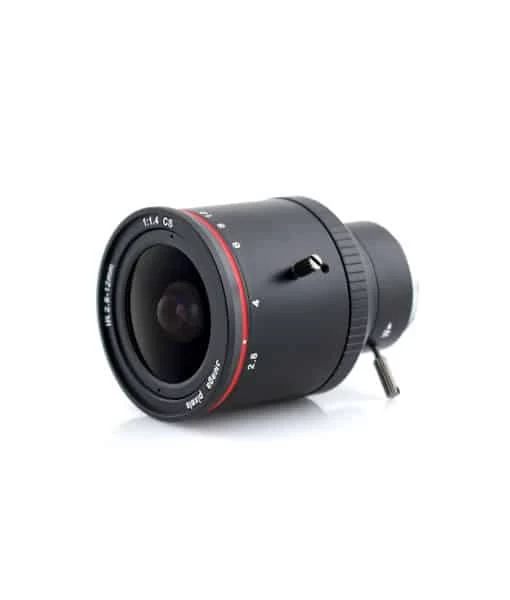

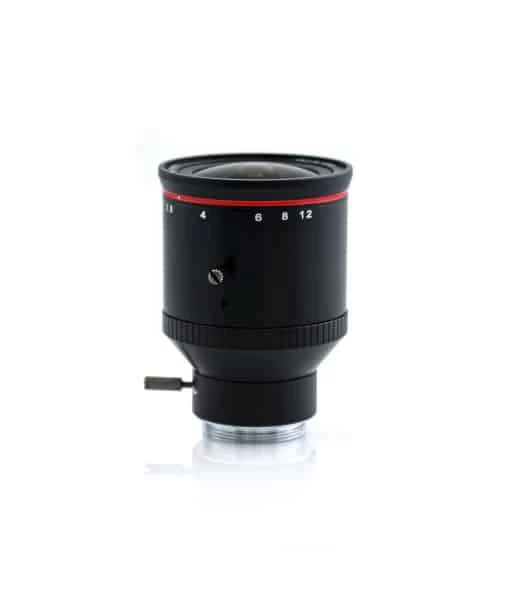

The AIDA Imaging CS-2812V is a CS-Mount 2.8-12mm Varifocal 3 Megapixel Lens. Optimized for use with Full HD AIDA cameras that have 1/3″ CMOS sensors, and is compatible with 3rd-party CS-mount cameras with a 1/2.7″ or 1/3″ sensor. The compact lens features a 2.8 to 12mm focal length with manual focus and offers a 6 to 60° field of view. The iris is also manually adjustable to a maximum aperture of f/1.4.

KEY FEATURES

• 1/2.7″ and 1/3″ Sensor Compatibility
• Manual Focus
• Manual Iris
• f/1.4 Maximum Aperture
• 6 to 60° Horizontal FOV

SPECIFICATIONS

Lens Mount	CS
Sensor Compatibility	1/2.7″, 1/3″ CMOS
Focal Length	2.8 to 12mm
Angle of View	1/3″ Sensor Horizontal: 6 to 60°
Focus Type	Manual Focus
Iris Type	Manual
Operating Temperature	-20 to 60°C
Dimensions (ø x L)	4.7 x 6.9 cm
Weight	4 g





INCLUDED BY DEFAULT

• AIDA CS-2812V – CS-Mount 2.8-12mm Varifocal 3 Megapixel Lens
