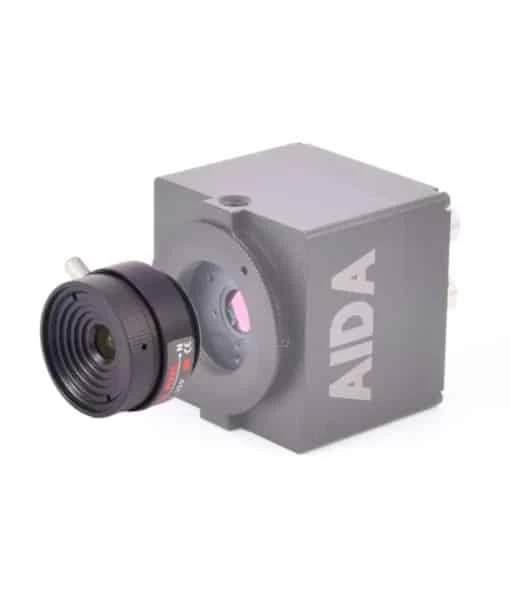

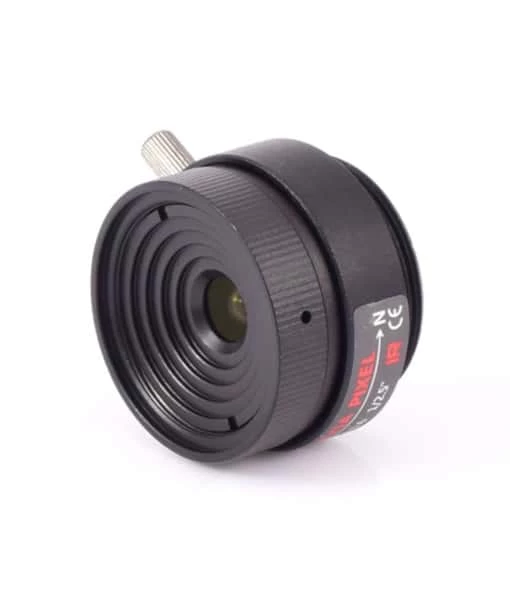

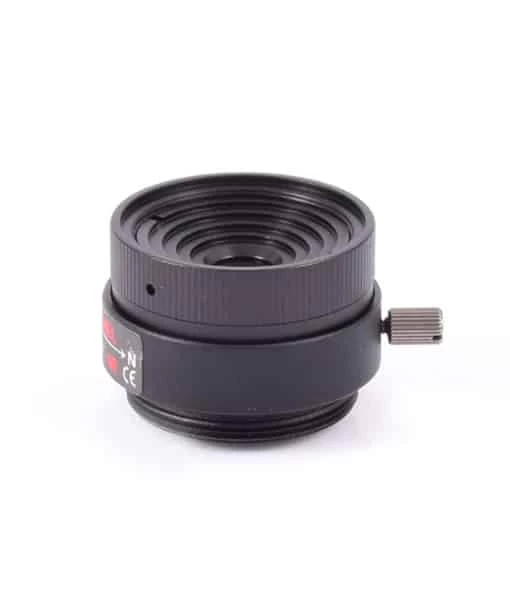

AIDA Imaging CS-6.0F – 6mm f/1.6 CS-Mount Lens

The AIDA Imaging 6mm f/1.6 CS Mount Lens is designed for cameras that use a 1/3″-type sensor and optimized for AIDA Imaging GEN series cameras that use a CS mount. On a camera that uses a 1/2.5″-type sensor, this lens will yield a 54° angle-of-view.

KEY FEATURES

• For 1/3″-Type Cameras
• Fixed f/1.6 Aperture
• Optimized for GEN Series Cameras

SPECIFICATIONS

Focal Length	6mm
Aperture	f/1.6
Focus Adjustment	Manual
Iris	Fixed
Horizontal Field-of-View	1/2.5″: 54° 1/2.8″: 51° 1/3.2″: 42°
Image Format	Max.: 1/2.5″ sensor
Distortion	6% (with 1/2.5″ sensor)
Mount Type	CS
Operating Temperature	-20 to 60°C
Dimensions	Length: 22 mm Diameter: 30 mm
Weight	28 g

INCLUDED BY DEFAULT

• AIDA Imaging 6mm f/1.6 CS-Mount Lens
