AIDA Imaging CS4K-3611V – 3.6-11mm F/1.6 Varifocal 4K Lens (CS-Mount)

AIDA Imaging CS4K-3611V – 3.6-11mm f/1.6 Varifocal 4K Lens (CS-Mount)

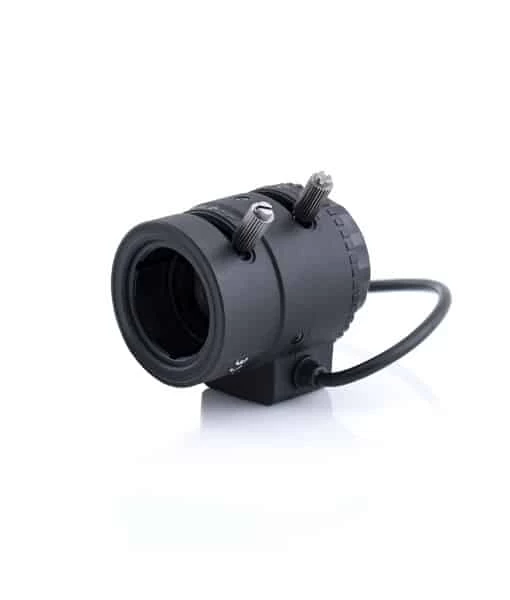

The AIDA Imaging CS4K-3611V is a Varifocal Lens with CS-mount 3.6-11mm. The Varifocal Lens is an automatic DC iris lens that is optimized and tuned for use with AIDA Imaging 4K 1/2.5″ CMOS sensor industrial cameras. Its field of view ranges from 71.4 to 23.37° for 1/2.5″ sensor cameras. Lens features include a fast f/1.6 maximum aperture and manual focus and zoom controls.

KEY FEATURES

• 3.6-11mm varifocal range
• Automatic DC iris control
• Fast f/1.6 maximum aperture
• Optimized for AIDA 4K cameras

SPECIFICATIONS

Lens Mount	CS
Sensor Compatibility	1/2.5″ CMOS
Focal Length	3.6 to 11mm
Angle of View	1/2.5″ Sensor Horizontal: 71.4 to 23.37°
Focus Type	Manual Focus
Iris Type	DC Auto
Distortion	14%
Operating Temperature	-4 to 140°F / -20 to 60°C
Dimensions (ø x L)	1.39 x 1.81″ / 35.4 x 45.9 mm
Weight	0.07 oz / 2 g

INCLUDED BY DEFAULT

• AIDA Imaging CS4K-3611V
