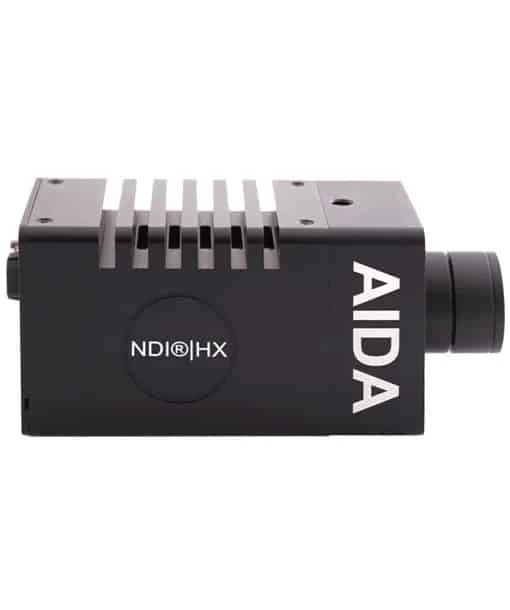

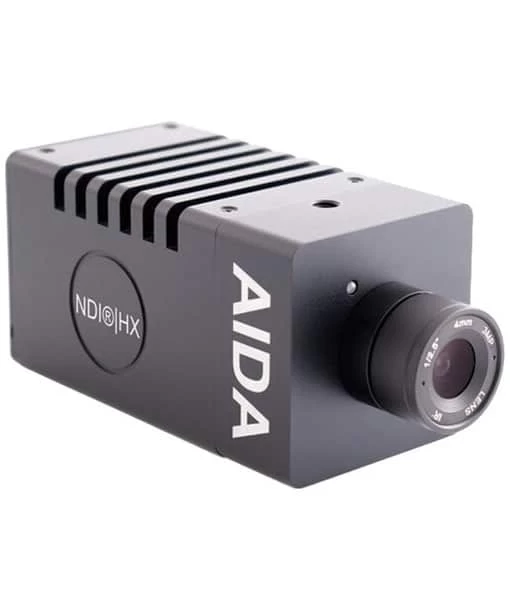

AIDA Imaging HD-NDI-200 Full HD IP / NDI POV Camera With 4mm HD Lens

AIDA Imaging HD-NDI-200 Full HD IP / NDI POV Camera with 4mm HD Lens

The AIDA HD-NDI-200 brings simultaneous IP and NDI|HX output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields.

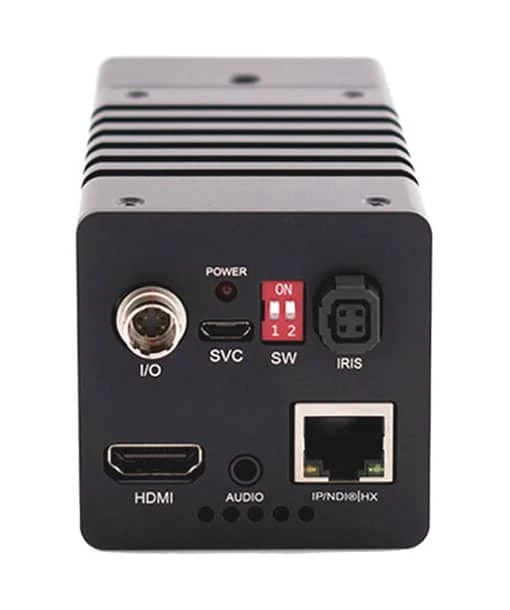

The miniature camera outputs variable-frame rate IP (RTSP/RTMP) and/or NDI in up to 1080p60 as well as up to a 1080p60 local video preview over HDMI. All three signals can be output at the same time. An RJ45 port carries both IP and NDI over a single Ethernet cable to an Ethernet switch. The default setting is to carry IP only, but NDI can also be switched on in a Web GUI, where all other settings, including the variable frame rates, are assignable. An NDI signal is extracted from the IP signal, and the camera will then be discoverable on your NDI network. An Ethernet cable is sold separately. The camera provides mounting threads on the top and bottom for flexible installation.

The HD-NDI-200 also features a 3.5mm audio port for embedding audio into the IP/NDI signals. Audio is not embedded into the HDMI output, so the HDMI output is for video previews only. A breakout cable is included that connects to a Hirose connector on the camera and provides power and RS-485 serial control ports. A USB cable is also included for firmware updates. The camera has a C/CS lens mount and comes with a 4mm HD lens. It also provides a 4-pin IRIS port for lenses that have a matching 4-pin connector on a control cable.

NDI|HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and multichannel audio in real time.

KEY FEATURES

SPECIFICATIONS AIDA HD-NDI-200 Full HD IP / NDI POV Camera

Image Sensor	1/2.8″ Progressive CMOS
Effective Pixels	Horizontal: 1920, Vertical: 1080
Pixel Size	2.9μm x 2.9 μm (V)
Resolution	1080p, 1080i, 720p
Resolution/Rate	1080 60p/59.94/50p/30p/29.97p/25p/24p/23.98p 1080 60i/59.94i/50i/ 720 60p/59.94p/50p/30p/29.97p/25p
Output	HDMI, RJ45, NDI|HX2
IP Rate	1920 x 1080 @ 3~60 1280 x 720 @ 3~60 1024 x 576 @ 3~60 620 x 360 @ 3~60
Color Space	4:2:2 (YCbCr) 10bit

Lens

Lens	C/CS Mount (Default 4mm HD Lens)

Audio

Input	3.5mm TRS Stereo Audio Port
Sample Rate	16/24/32 Bits

Physical

Camera Control	Protocol: VISCA RS485, VISCA Over IP Control: OSD Button or Web UI
Operation Temp	32°F – 104°F
Power	12VDC (+9 – +15VDC)/ POE (IEEE802.3af Standard)

INCLUDED BY DEFAULT

• AIDA HD-NDI-200 POV Camera
