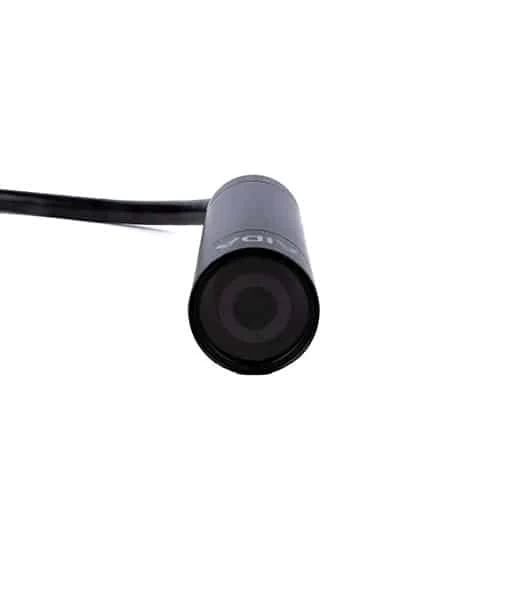

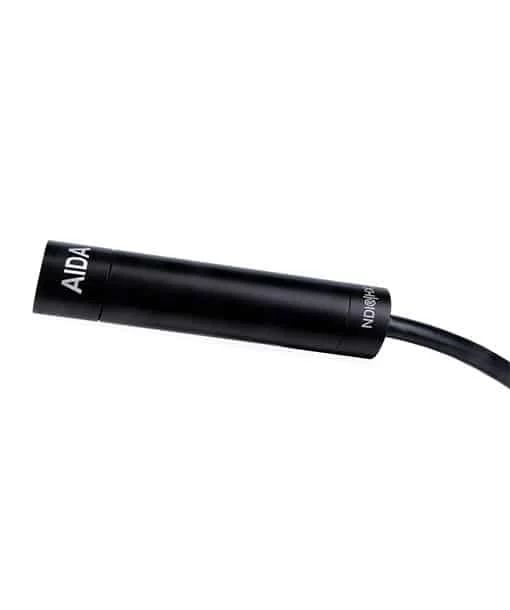

AIDA Imaging HD-NDI-MINI NDI|HX FHD WP Lipstick Camera

AIDA Imaging HD-NDI-MINI NDI|HX Compatible FHD WP Lipstick Camera

The AIDA HD-NDI-MINI is a rugged, weatherproof lipstick camera with NDI|HX, the ultimate addition to any NDI workflow.

KEY FEATURES

SPECIFICATIONS AIDA HD-NDI-MINI

Image Sensor	1/3″ Progressive CMOS
Sensor Size	5.346mm x 3.003mm (16.9)
Effective Pixels	Horizontal: 1920, Vertical: 1080
Pixel Size	2 .75 μm (H) x 2.75 μm (V)
Resolution	1080p, 1080i, 720p
Resolution | Rate	1080 60p/59.94/50p/30p/29.97p/25p 24p 1080 60i/59.94i/50i 720 60p/59.94p/50p
Output	IP (NDI|HX/SRT/RTMP/RTSP)
Color Space	4:2:2 (YCbCr) 10bit
Min Illumination	0.2Lux (day), 0.1Lux (Night)
White Balance	Auto & Manual (9000 – 11,000 K)

Lens	M12 (Default 4mm HD Lens with WP CAP)

IP	UDP|IP, RTSP|RTMP, SRT, NDI|HX
Control	Protocol: VISCA Over IP
Operation Temp	32°F – 104°F
Dimension/Weight	9 0mm x 24mm (with default WP cap) / 180g
Power	1 2VDC (+9 – +15VDC) (PoE Adapter Included)

INCLUDED BY DEFAULT

• AIDA HD-NDI-MINI Lipstick Camera
• 4mm M12 Lens (Pre-Installed)
• POE Dongle Adapter
• DC 12v Power Supply & Sockets Adapter
