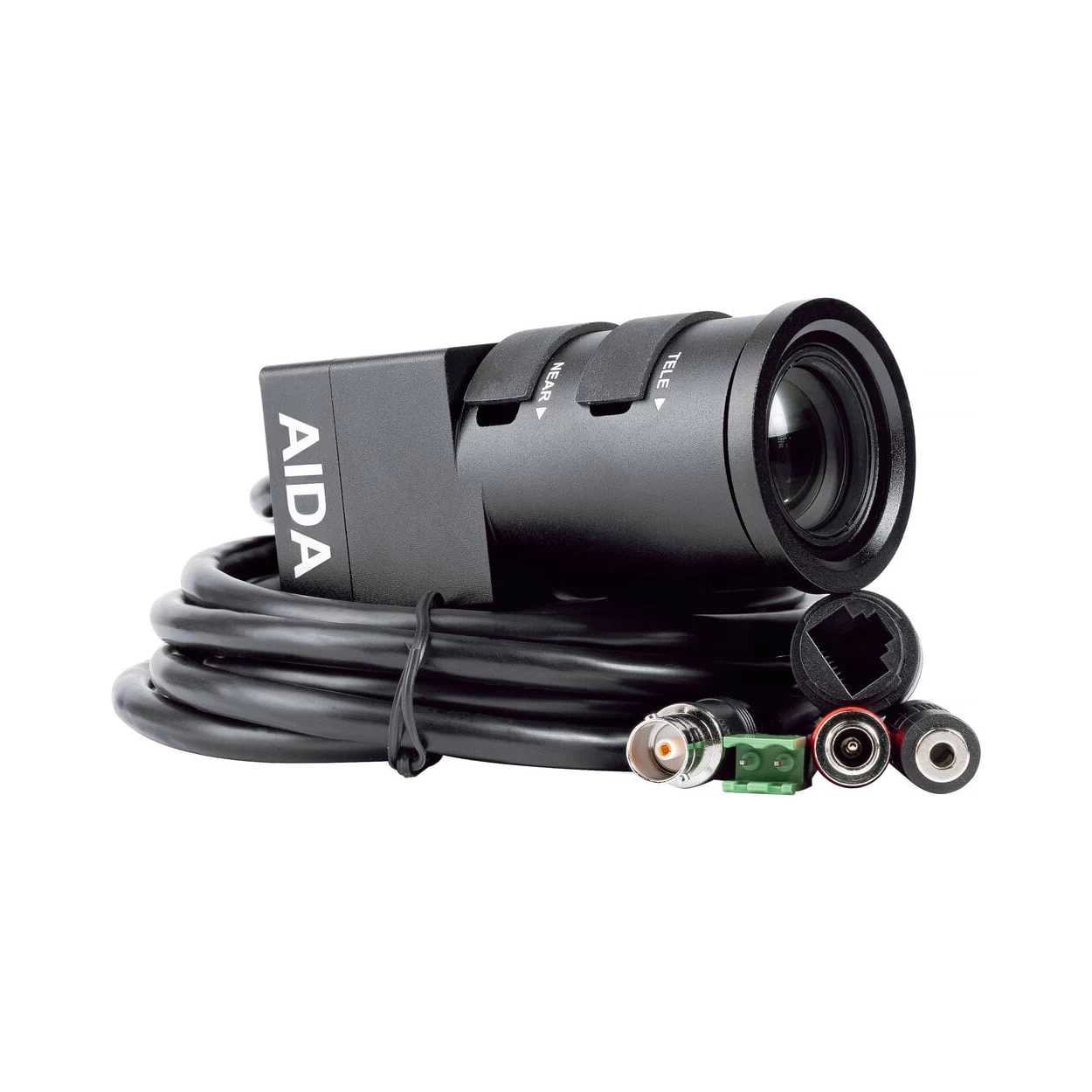

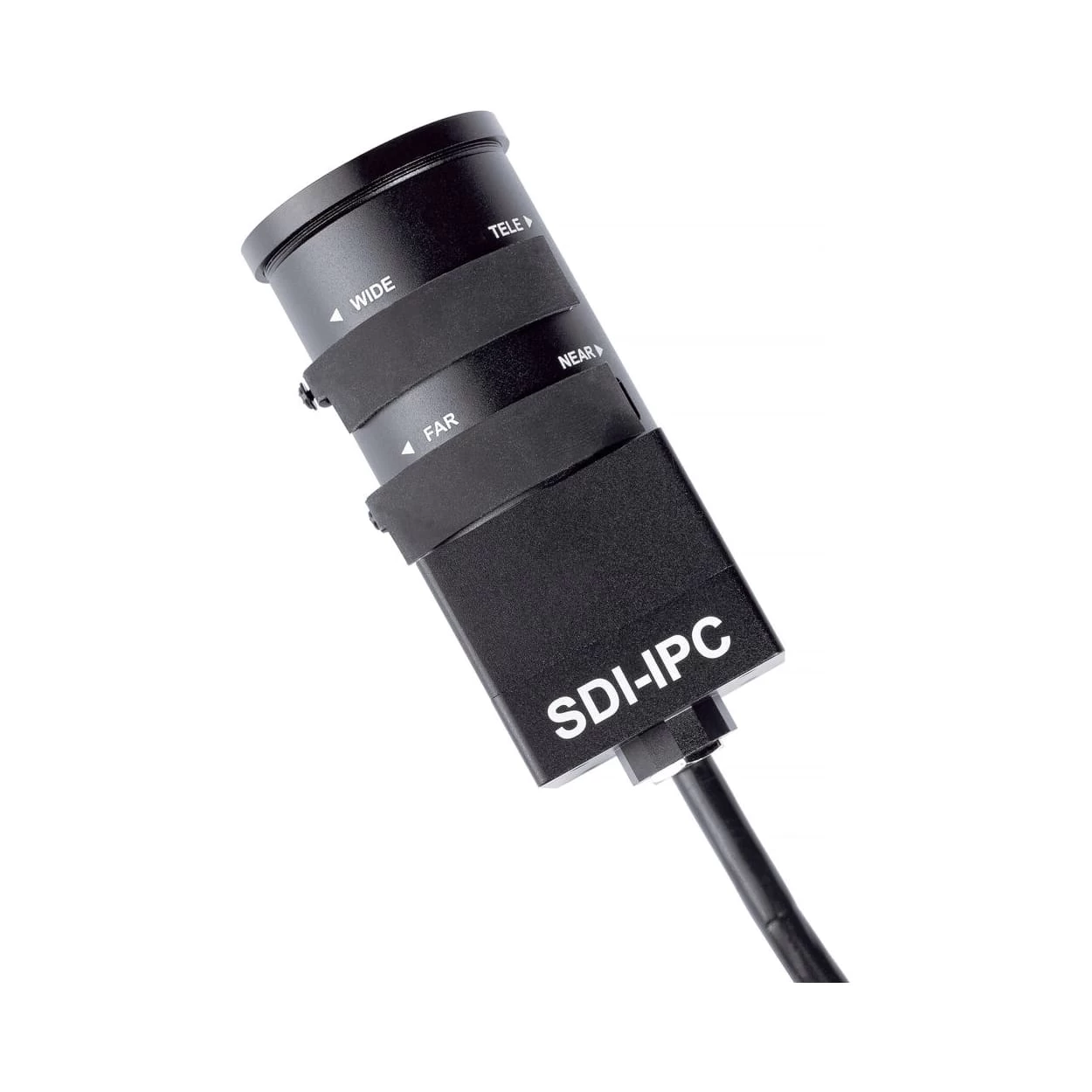

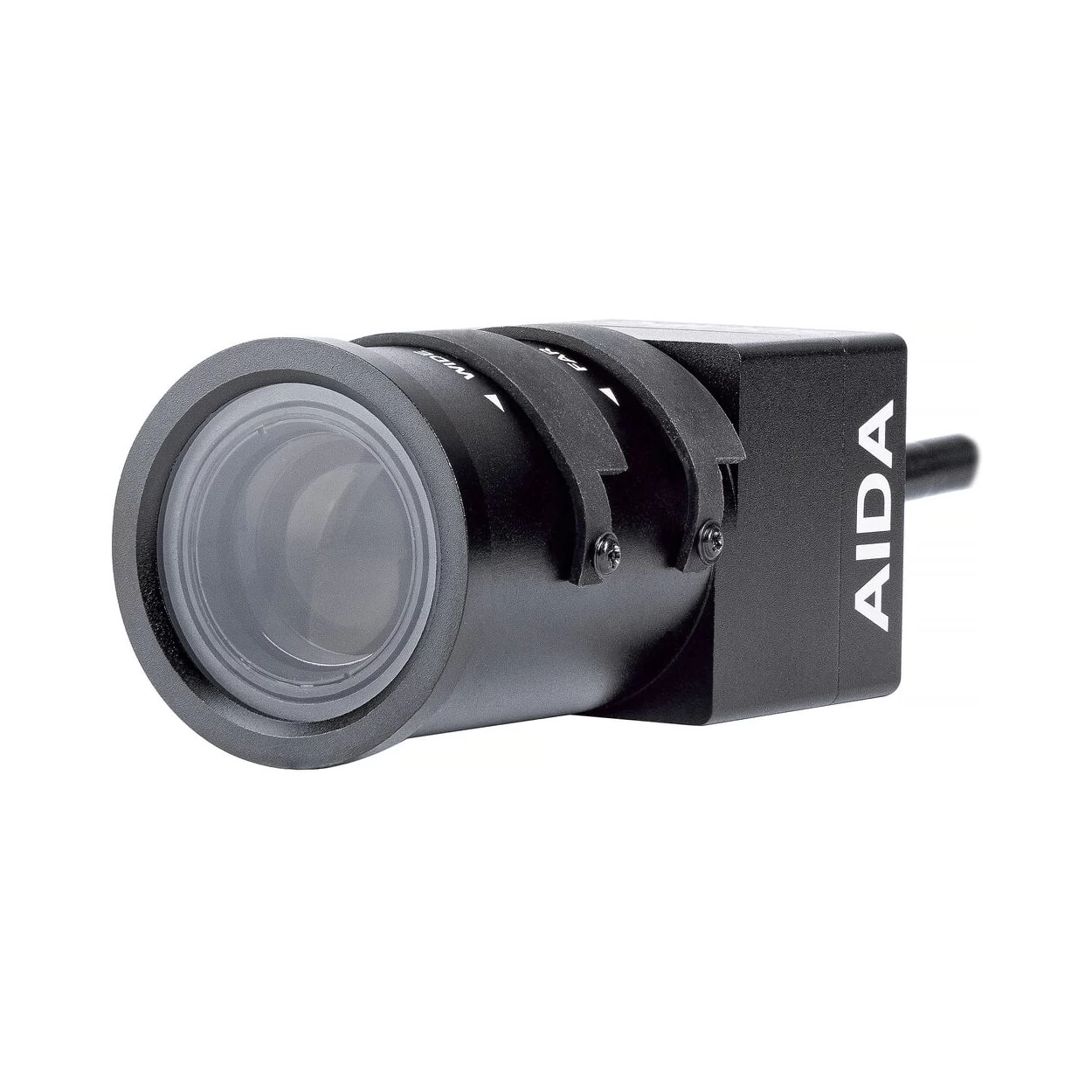

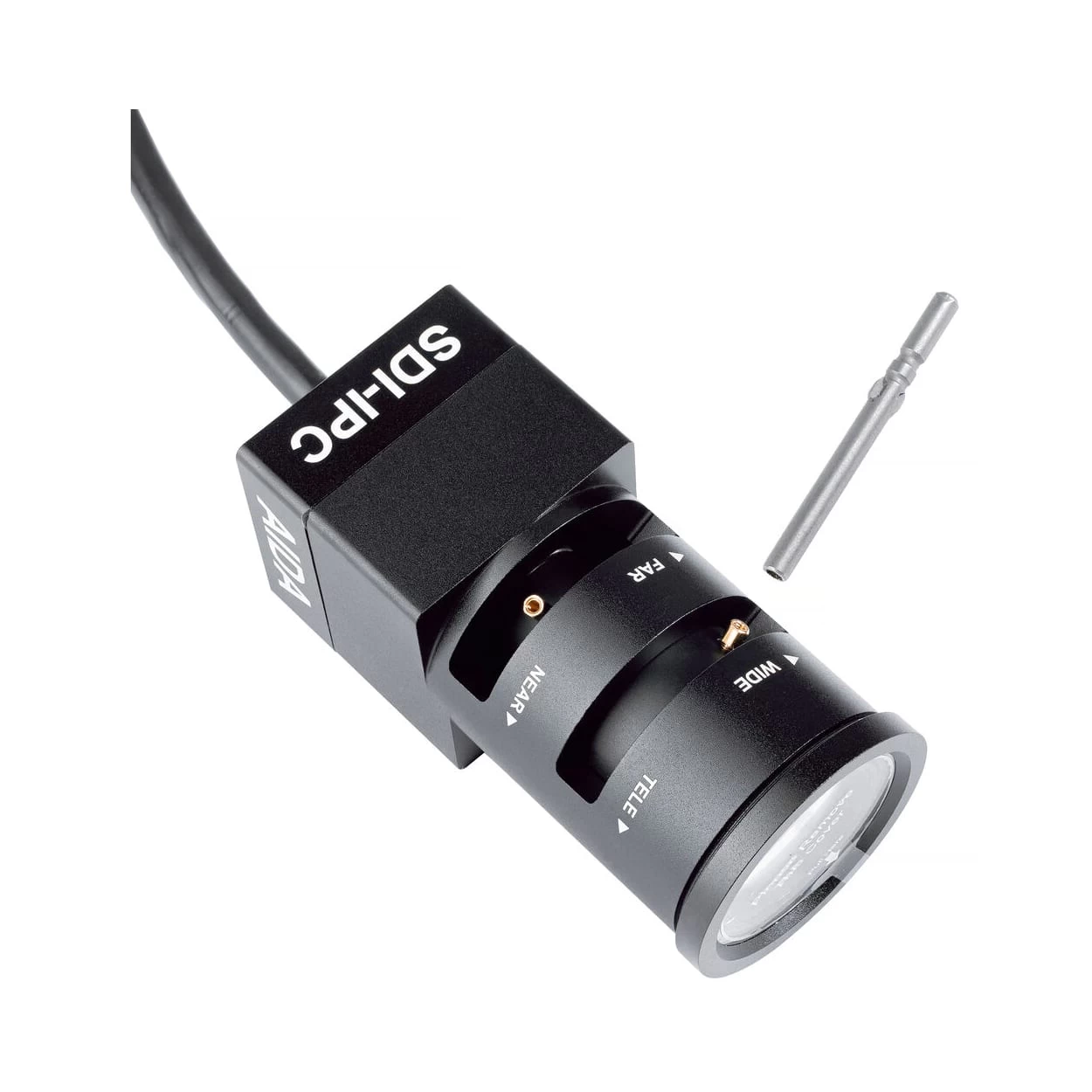

AIDA Imaging HD3G-IPC-TF FHD 3G-SDI with IP Control, Varifocal Lens 05-50mm Weatherproof IP54 POV Camera

Immerse yourself in the realm of IP control with our groundbreaking camera series introducing the SDI IPC Series. Combining our signature small form factor, unbeatable pricing, and unparalleled imaging quality, the SDI-IPC series cameras harness the power of full VISCA over IP control across any network, providing an easier alternative to the prior RS485 Serial Visca. Available in four distinct variations, the SDI-IPC series stands poised to revolutionize both new and established 3G-SDI setups, offering complete mastery over every aspect. Experience the future of control and elevate your streaming game with the SDI IPC Series.

KEY FEATURES AIDA HD3G-IPC-TF

• Full-HD 1/2.8” Sony Progressive Scan CMOS sensor capable of 1080 60p
  through 3G-SDI
• VISCA over IP compatible for hardware and software solutions using that
  protocol. (VISCA UDP, SONY VISCA over IP)
• Versatile designs with tripod mounts for easy and unique shot creation.
• PoE+ adaptable with adapter (comes with purchase of the camera)
• Variants for weatherproofed cameras, capable of IPV54 and above rating.
• CS-mount lens, M12 mount lens, and varifocal weatherproof options
  available.
• Small form-factor and rugged designed makes all video streaming
  applications possible
• Perfectly suited for indoor or outdoor shots for new or existing workflows.

SPECIFICATIONS

Image Sensor	1/2.8” Progressive CMOS
Sensor Size	5.640mm x 3.216mm (16.9)
Effective Pixels	Horizontal: 1920, Vertical: 1080
Pixel Size	2.9 μm (H) x 2.9 μm (V
Resolution	1080p, 1080i, 720p
Resolution/Rate	1080 60p/59.94/50p/30p/29.97p/25p/24p 1080 60i/59.94i/50i 720 60p/59.94p/50p
Output	3G-SDI
Color Space	4:2:2 (YCbCr) 10bit
Min. Illumination	0.2Lux (day), 0.1Lux (Night)
White Balance	Auto & Manual (9000 – 11,000 K)

Audio

Input

3.5mm TRS Stereo Input, Embed over SDI

Lens

Lens	Custom Varifocal 5-50mm Lens HFOV: Wide: 51° Tele’d: 6.1°

Physical

Camera Control	RJ45 (VISCA over IP) RS485 (Serial VISCA)
Operation Temp	-10°C~50°C
Power	12VDC (+9 – +15VDC) (PoE Adapter Included)
Power draw	6W MAX



INCLUDED BY DEFAULT

• AIDA HD3G-IPC-TF
• DC 12v Power Supply & Sockets Adapter
• Lens Hex Adapter (HD3G-IPC-TF Only)
• PoE Dongle Adapter
