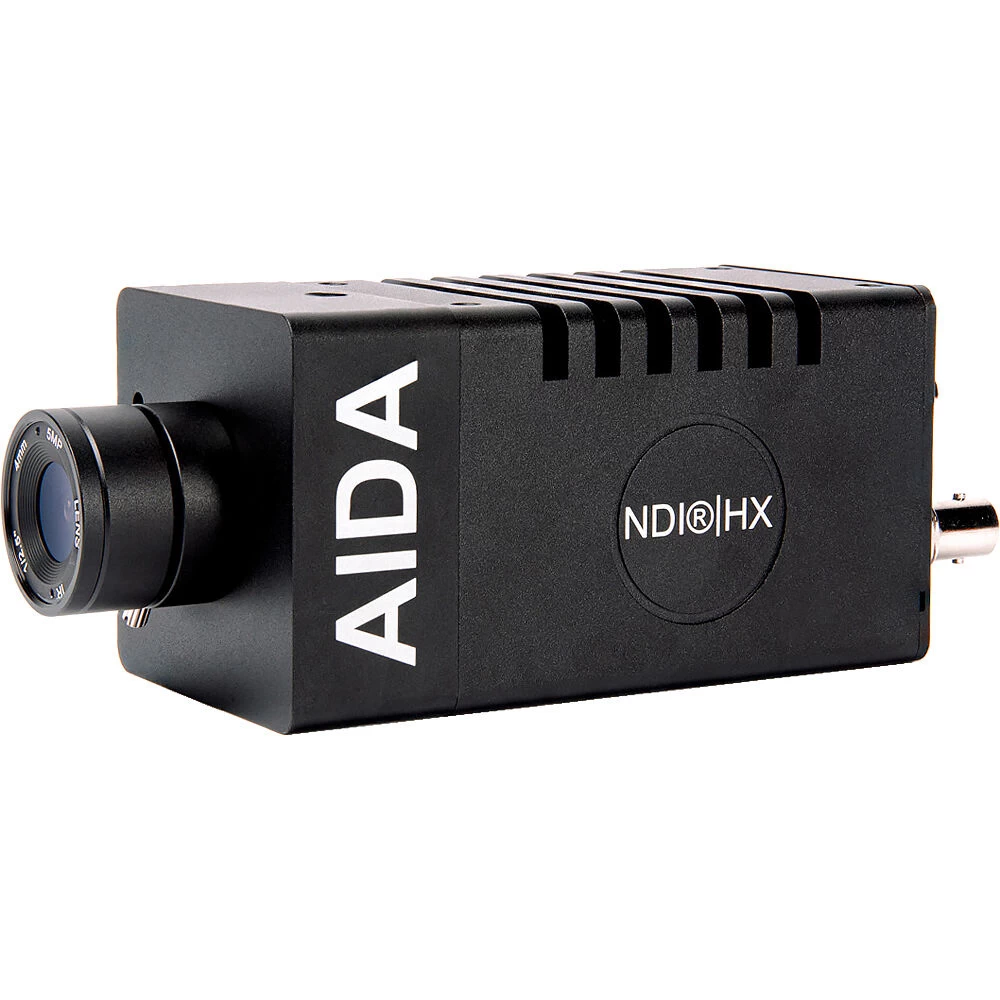

AIDA Imaging HD3G-NDI-200 FHD NDI®|HX/IP/SRT/3G-SDI PoE And IP Control POV Camera

Oorspronkelijke prijs was: 332,00 €.Huidige prijs is: 95,99 €.

The AIDA HD3G-NDI-200 brings simultaneous IP and NDI output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields. The camera is capable of outputting 3G-SDI, IP, SRT and NDI®|HX2 simultaneously.

Miniature POV Streaming Camera
Up to 1080p60 Simultaneous IP, NDI, 3G-SDI
3.5mm Port for IP/NDI Audio Embedding

Artikelnummer: AI-HD3GNDI200 Categorieën: POV Box NDI Cameras, Video Cameras

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

AIDA Imaging HD3G-NDI-200 FHD NDI®|HX/IP/SRT/3G-SDI PoE and IP Control POV Camera

The AIDA HD3G-NDI-200 Full HD NDI|HX/IP/SRT/3G-SDI PoE & IP Control POV Camera provides an effective solution that facilitates any SDI workflow with IP connectivity and NDI. An optional SDI cable and a standard Ethernet cable are all you will need for easy NDI|HX and 3G-SDI connectivity. The unit’s support for PoE+ technology enables power, control, and video to be sent over a single Cat 5e+ cable, further simplifying your setup. The HD3G-NDI-200 comes with top and bottom 1/4″-20 mounting

KEY FEATURES

Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI® HX
and 3G-SDI video.
Accessible Web UI to stream directly to social media platforms
and control image parameters over IP.
Versatile and discreet design perfect for sleek, multi-leveled image capturing
in most scenarios.
OSD breakout cable provides power or control over serial
RS485 communication.
Flawlessly relays multi-channel embedded audio via NDI® HX2
Perfectly suited for upgrading existing 3G-SDI workflows to IP / NDI® HX
capabilities

SPECIFICATIONS AIDA HD3G-NDI-200 Full HD IP / NDI POV Camera

Image Sensor	1/2.8″ Progressive CMOS
Effective Pixels	Horizontal: 1920, Vertical: 1080
Pixel Size	2.9μm x 2.9 μm (V)
Resolution	1080p, 1080i, 720p
Resolution/Rate	1080 60p/59.94/50p/30p/29.97p/25p/24p/23.98p 1080 60i/59.94i/50i/ 720 60p/59.94p/50p/30p/29.97p/25p
Output	3G-SDI, RJ45, NDI\|HX2
IP Rate	1920 x 1080 @ 3~60 1280 x 720 @ 3~60 1024 x 576 @ 3~60 620 x 360 @ 3~60
Color Space	4:2:2 (YCbCr) 10bit

Lens

Lens

C/CS Mount (Default 4mm HD Lens)

Audio

Input	3.5mm TRS Stereo Audio Port
Sample Rate	16/24/32 Bits

Physical

Camera Control	Protocol: VISCA RS485, VISCA Over IP Control: OSD Button or Web UI
Operation Temp
Power	12VDC (+9 – +15VDC)/ POE (IEEE802.3af Standard)
