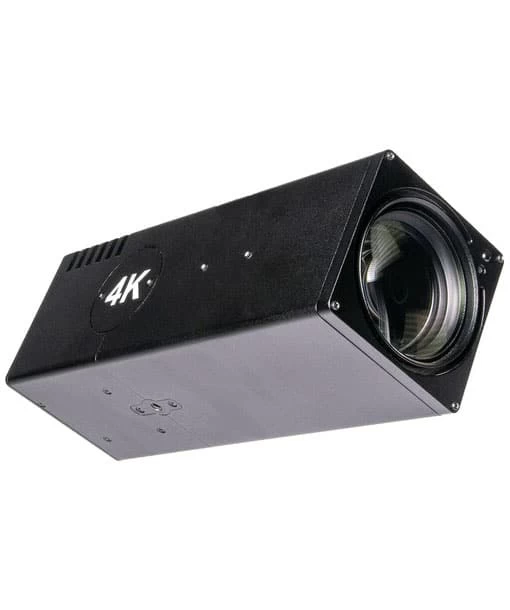

AIDA Imaging UHD NDI|HX3 30x Zoom POV Camera

AIDA Imaging UHD NDI|HX3 30x Zoom POV Camera

The AIDA UHD NDI|HX3 30x Zoom POV Camera provides 4K60 video over HDMI or IP output thanks to its native NDI|HX3 support. Low-latency broadcast signals, power, and data communication can be delivered over a single connection. The camera comes with a pre-installed 30x optical zoom module to capture images up to 50m away.

AIDA Imaging offers this innovative POV camera capable of capturing stunning 4K60 video with an adjustable 30x optical zoom. Pairing this UHD functionality with NDI|HX3 IP streaming compatibility, the UHD-NDI3-X30 camera outputs uncompressed video signals at up to 60 MB/s. Coming pre-loaded with NDI|HX3 support means less cable clutter and installation hassle: video, audio, control, power, and data are all carried over a single CATx cable. Bridging this camera through NDI networking and utilizing the accessible Web UI allows for the creation of an entire video ecosystem, especially when combined with other NDI|HX-compatible devices from AIDA Imaging (available separately). HDMI output with embedded audio is also available.

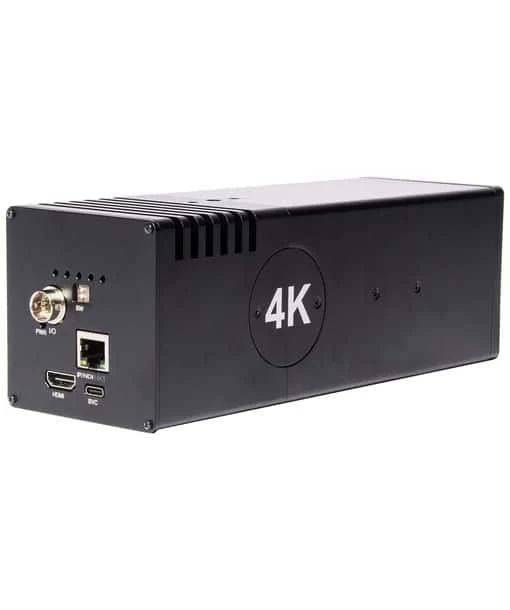

The UHD-NDI3-X30 is housed in a compact and rugged case suitable for a wide variety of applications. 1/4″-20 female mounting threads are located on both the bottom and top of the housing to provide flexible rigging capabilities, from tripods to truss. The front of the camera features a small tally light to ensure talent is ready to go live. A built-in breakout cable carries the 12 VDC input port and a 3.5mm jack for line-in audio as well as a set of dip switches for firmware adjustment.

KEY FEATURES

SPECIFICATIONS AIDA UHD-NDI3-X30

Image Sensor	1/2.8″ Progressive CMOS
Effective Pixels	3840 x 2160
Resolutions	NDI|HX/HDMI: 2160p60/59.94/50/30/29/97/25/24 NDI|HX3/SRT/RTMP/RTSP: 1080p60/59.95/50/30/29.97/25/24, 1080i60/59.94/50, 720p60/59.94/50
Lens	30x Optical Zoom
Lens Focal Length	6.91-214.64mm
Field of View	59-1.98°
Color Space	4:2:2 (YCbCr) 10-Bit
Minimum Illumination	Day: 0.2 Lux, Night: 0.1 Lux
Inputs/Outputs
USB I/O	1 x USB-C Female Input/Output
Video I/O	1 x HDMI Output 1 x RJ45 Output
Audio I/O	1 x 1/8″ / 3.5 mm Line Input
Protocol	IP: UPD|IP, RTSP|RTMP, SRT, NDI|HX
General
Power Source	AC Adapter with Power Brick (Included), PoE
DC Input Power	12 VDC
Operating Temperature	0 to 40°C
Mounting	Top: 1 x 1/4″-20 Thread Bottom: 1 x 1/4″-20 Thread
Dimensions	22 x 7.19 x 7.19 cm
Weight	1400 g

INCLUDED BY DEFAULT

• AIDA Imaging UHD NDI|HX3 30x Zoom POV Camera
• USB Cable
• Remote Controller
