AIDA Imaging UHD NDI|HX3 POV Camera

AIDA Imaging UHD NDI|HX3 POV Camera

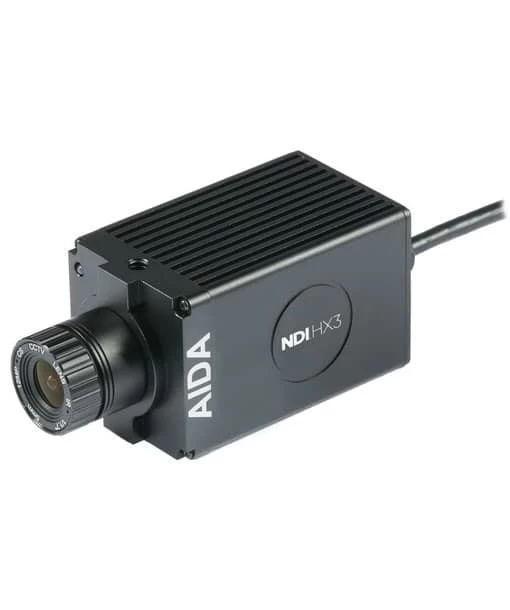

The AIDA UHD NDI|HX3 POV Camera provides 4K60 video over HDMI output or combined video and data signals over IP output with native NDI|HX3 support. Low-latency broadcast signals, power, and data communication can be delivered over a single connection. The camera comes with a pre-installed 5mm CS-mount lens.

The AIDA UHD POV camera is capable of capturing 4K60 video with a 78° field of view. Pairing this high-speed functionality with NDI|HX3 IP streaming compatibility, the UHD-NDI3-300 camera outputs uncompressed video signals at up to 60 MB/s. Coming pre-loaded with NDI|HX3 support means less cable clutter and installation hassle: video, audio, control, power, and data are all carried over a single CATx cable. Bridging this camera through NDI networking and utilizing the accessible Web UI allows for the creation of an entire video ecosystem, especially when combined with other NDI|HX-compatible devices from AIDA Imaging (available separately). HDMI output with embedded audio is also available.

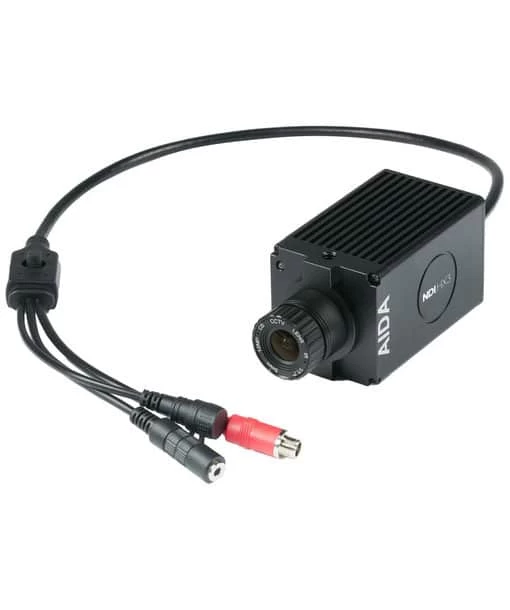

The UHD-NDI3-300 is housed in a compact and rugged case suitable for a wide variety of applications. 1/4″-20 female mounting threads are located on both the bottom and top of the housing to provide flexible rigging capabilities, from tripods to truss. The front of the camera features a small tally light to ensure talent is ready to go live. A built-in breakout cable carries the 12 VDC input port and a 3.5mm jack for line-in audio as well as a set of dip switches for firmware adjustment.

KEY FEATURES

SPECIFICATIONS AIDA UHD-NDI3-300

Image Sensor	1/2.8″ Progressive CMOS
Effective Pixels	3840 x 2160
Resolutions	NDI|HX/HDMI: 2160p60/59.94/50/30/29/97/25/24 NDI|HX3/SRT/RTMP/RTSP: 1080p60/59.95/50/30/29.97/25/24, 1080i60/59.94/50, 720p60/59.94/50
Lens	12MP 5mm CS-Mount
Field of View	78°
Color Space	4:2:2 (YCbCr) 10-bit
Minimum Illumination	Day: 0.2 Lux Night: 0.1 Lux
Inputs/Outputs
USB I/O	1 x USB-C Female Input/Output

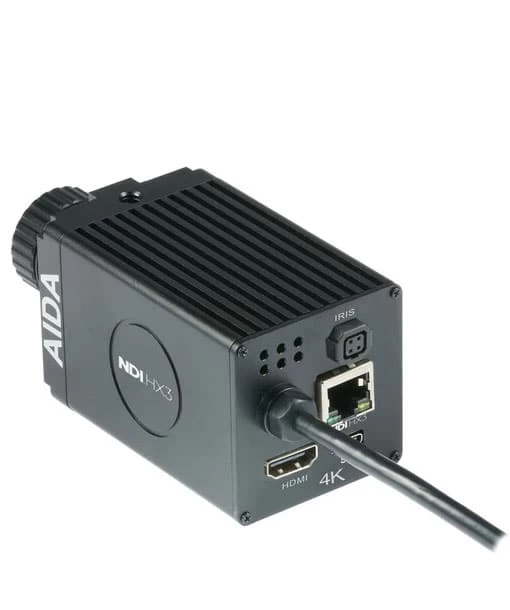

Video I/O	1 x HDMI Output 1 x RJ45 Output
Audio I/O	1 x 1/8″ / 3.5 mm Line Input
Protocol	IP: UPD|IP, RTSP|RTMP, SRT, NDI|HX
General
Power Source	AC Adapter with Power Brick (Included), PoE
DC Input Power	12 VDC
Operating Temperature	0 to 40°C
Mounting	Top: 1 x 1/4″-20 Thread Bottom: 1 x 1/4″-20 Thread
Dimensions	8.51 x 4.9 x 4.9 cm
Weight	350 g

INCLUDED BY DEFAULT

• AIDA Imaging UHD NDI|HX3 POV Camera
• 5mm 12MP Lens
• USB Cable
• C-Mount Cap Adapter
• Sensor Cap
