AIDA Imaging UHD NDI|HX3 Weatherproof POV Camera

AIDA Imaging UHD NDI|HX3 Weatherproof POV Camera

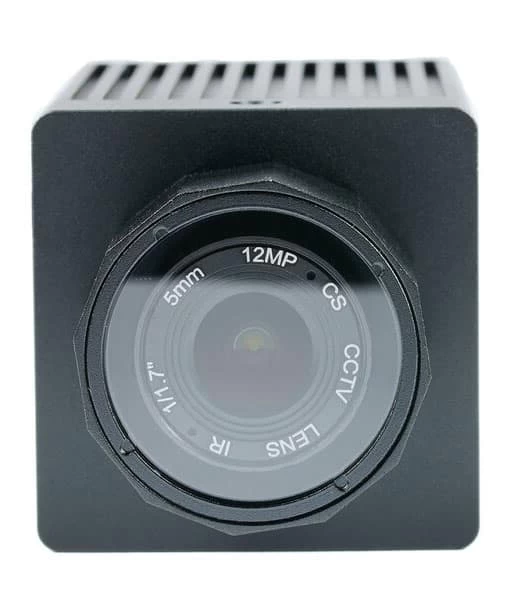

The AIDA UHD NDI|HX3 Weatherproof POV Camera from AIDA Imaging provides a 4K60 video over HDMI or IP output thanks to its native NDI|HX3 support. Low-latency broadcast signals, power, and data communication can be delivered over a single connection. The camera comes with a pre-installed 5mm CS-mount lens and is housed in an IP67 rated weather resistant case.

The POV camera is capable of capturing ultra HD video with an 78° horizontal field of view. Pairing this high-resolution functionality with NDI|HX3 IP streaming compatibility, the UHD-NDI3-IP67 camera outputs uncompressed video signals at up to 60 MB/s. Coming pre-loaded with NDI|HX3 support means less cable clutter and installation hassle: video, audio, control, power, and data are all carried over a single CATx cable.

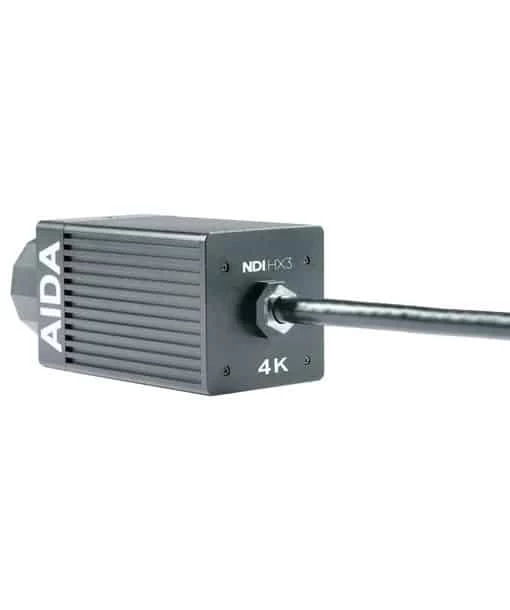

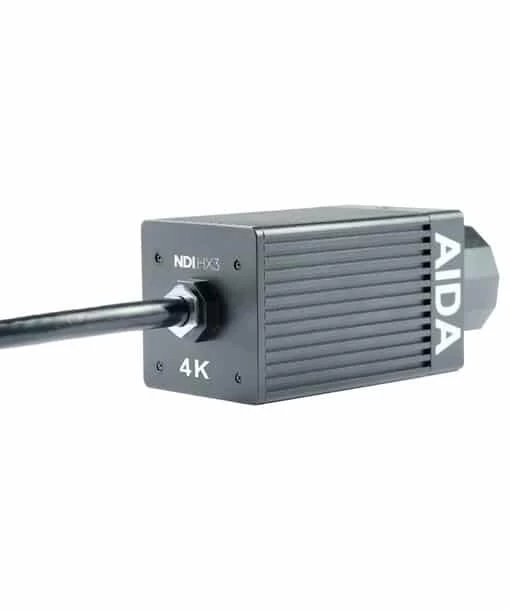

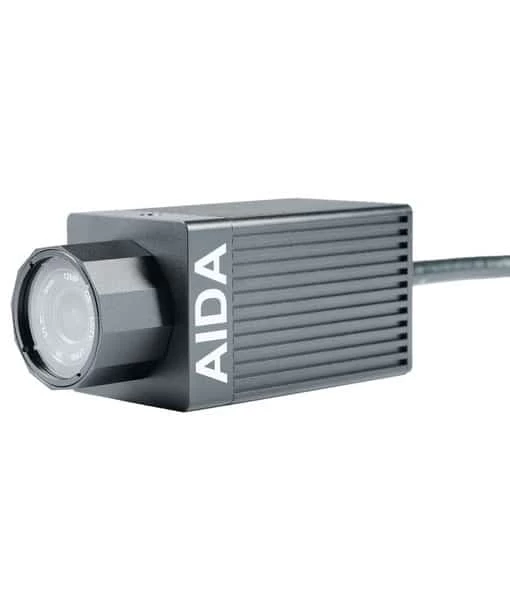

The UHD-NDI3-IP67 is housed in a compact and rugged weatherproof case suitable for a wide variety of applications both indoors and outdoors. The IP67 rated body has no integrated interface, opting instead to use a 10′ weatherproof breakout cable. The breakout carries the RJ45 port for IP connection, 12 VDC input port, SVC USB cable, and a 3.5mm jack for line-in audio as well as a set of dip switches for firmware adjustment. Select CS-mount lenses can be safely swapped in thanks to the rubber-sealed lens cover. 1/4″-20 female mounting threads are located on both the bottom and top of the housing to provide flexible rigging capabilities, from tripods to truss. The front of the camera features a small tally light to ensure talent is ready to go live.

KEY FEATURES

SPECIFICATIONS AIDA UHD-NDI3-IP67

Image Sensor	1/2.8″ Progressive CMOS
Effective Pixels	1920 X 1080
Resolutions	NDI|HX: 2160P60/59.94/50/30/29.97/25/24 NDI|HX3/SRT/RTMP/RTSP: 1080p60/59.95/50/30/29.97/25/24, 1080i60/59.94/50, 720p60/59.94/50
Lens	12MP 5mm CS-Mount
Field of View	78°
Color Space	4:2:2 (YCbCr) 10bit
Minimum Illumination	Day: 0.2 Lux Night: 0.1 Lux
Control Protocol	VISCA Over IP
Inputs/Outputs
USB I/O	1 x USB-A Integrated Male Input/Output
Video I/O	1 x RJ45 Output
Audio I/O	1 x 1/8″ / 3.5 mm Line Input
General
Power Source	AC Adapter with Power Brick (Included), PoE
DC Input Power	12 VDC
Operating Temperature	0 to 40°C
Mounting	Top: 1 x 1/4″-20 Thread Bottom: 1 x 1/4″-20 Thread
Dimensions	11.99 x 5.31 x 5.31 cm
Weight	800 g

INCLUDED BY DEFAULT

• AIDA Imaging UHD NDI|HX3 Weatherproof POV Camera
• 4mm 5MP Lens
