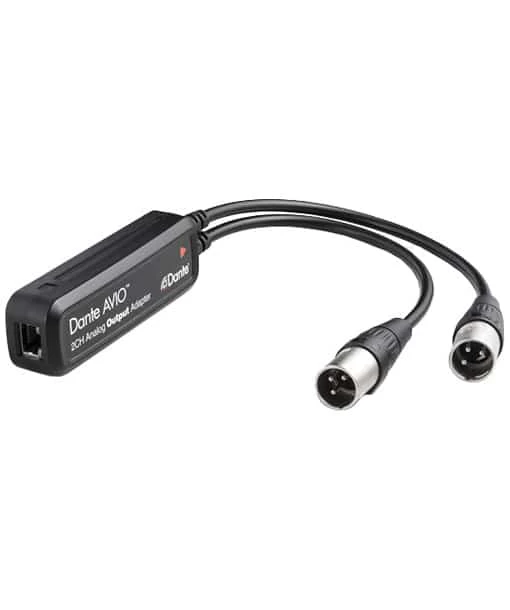

Audinate Dante AVIO 2-Channel XLR Analog Output Adapter For Dante Audio Network

Audinate Dante AVIO 2-Channel XLR Analog Output Adapter for Dante Audio Network

The Audinate Dante AVIO 2-Channel Analog Output Adapter allows you to use the analog gear you already own with your Dante audio network. It provides audio engineers with a cost-effective solution for adapting analog power amplifiers, powered speakers, or analog compressors and equalizers, delivering the interoperability, performance, and scalability of Dante network connectivity.

Compact and built for the road, the AVIO is automatically discovered by the network and is ready to use when connected. It features two balanced, line-level outputs equipped with XLR connectors and delivers high-quality audio at up to 24-bit/96 kHz with configurable gain and attenuation, low total harmonic distortion, and a 20 Hz to 20 kHz frequency response.

The AVIO supports Dante Audio over IP and AES67 RTP transport formats, and is compatible with Dante Domain Manager (DDM).

Note: Requires network switch with POE (Power-over-Ethernet) or the use of an 802.3af-compliant PoE injector.

KEY FEATURES

• Cost-effective solution for adapting analog gear to your Dante network
• Plug-and-play operation
• Balanced, line-level dual-channel analog output adapter
• Compact and built for the road with sonically welded polycarbonate enclosure
• Sample rates up to 96 kHz
• Wide dynamic range
• High signal-to-noise ratio
• Low total harmonic distortion
• Configurable gain and attenuation
• Dante Audio over IP and AES67 RTP transport formats
• Power over Ethernet (PoE) support
• Compatible with Dante Domain Manager (DDM)

SPECIFICATIONS DANTE AVIO 2-CHANNEL XLR ANALOG OUTPUT ADAPTER



Model	ADP-DAO-AU-0X2
Maximum Signal Level	+18 dBu, +4 dBu, 0 dBu (Balanced) 0 dBV, -10 dBV (Balanced)
Frequency Response	20 Hz to 20 kHz (±0.5 dB)
Impedance	150 Ohms (Balanced) 75 Ohms (Unbalanced)
Dynamic Range	>100 dB
Signal-to-Noise Ratio	>100 dB
Total Harmonic Distortion	<0.01% at +4 dBu
Connectors	RJ45 2 x XLR-M
Power	Class 1 802.3af PoE
Sample Rates	44.1, 48, 96 kHz
Bit Depth	24-bit
Network Transport Protocol	Dante Audio over IP AES67 RTP

INCLUDED BY DEFAULT

• Audinate Dante AVIO 2-Channel XLR Analog Output Adapter for Dante Audio Network
