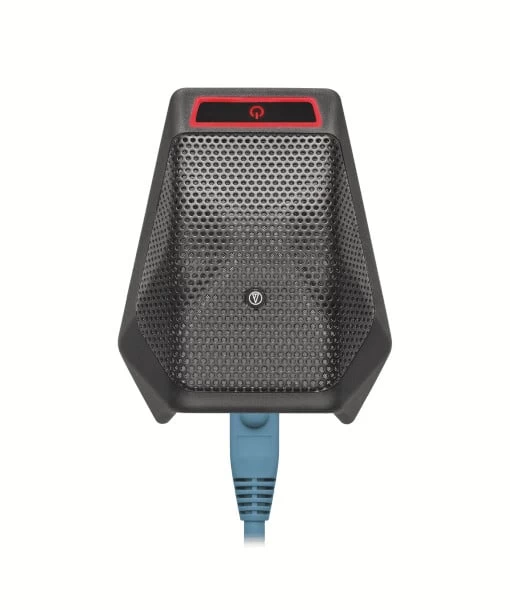

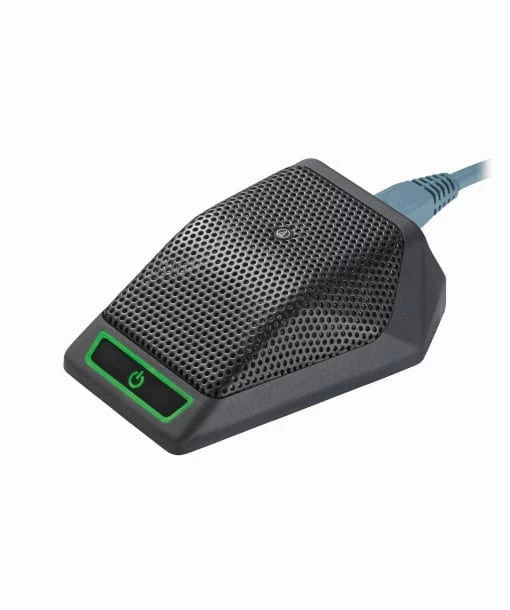

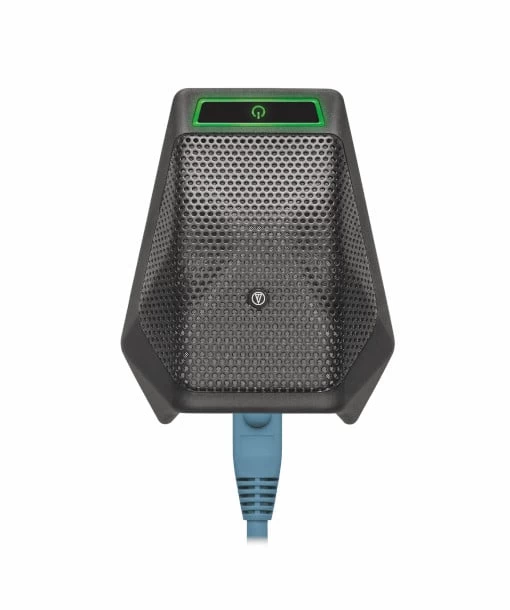

Audio-Technica ATND971a Boundary Microphone With Dante™

Audio-Technica ATND971a Boundary Microphone with Dante™

Audio-Technica has bridged the gap between audio and IT with the first wired microphones that transmit audio and control data together over the Dante network protocol. A simple Ethernet connection allows the Network Microphone to communicate across an existing network of Dante-enabled devices and, with the mic’s integrated, programmable user switch, control any of those devices at the push of a button.

KEY FEATURES

• A digital Ethernet mic with Dante capabilities – an Audio-Technica innovation
• Connects directly to network via Ethernet cable – no need for expensive audio cable or soldering
• Integrated switch allows mic to communicate with – and control – other Dante-enabled devices within a network
• Local or remote control of mic gain, low-cut filter and LED indicator
• Red/Green LED indicator
• UniGuard® RFI-shielding technology; UniSteep® filter
• Powered by network PoE
• Scalable across Dante’s 512 bidirectional audio channels
• Plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies
• Increases Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more

SPECIFICATIONS Audio-Technica ATND971a

Microphones
Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Half-cardioid (cardioid in hemisphere above mounting surface)
Frequency Response	30-20,000 Hz
Low Frequency Roll Off	80 Hz, 18 dB/octave
Maximum Input Sound Level	117 dB SPL, 1 kHz at 1% T.H.D.
Signal-to-Noise Ratio	68 dB, 1 kHz at 1 Pa
Power Requirements	PoE IEEE802.3af standard (Power consumption 1.5W)
Switches	Local Mode: Touch-sensitive capacitivetype user switch function: toggle (mute on power up), toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: +30 dB, +40 dB, +50 dB Remote Mode: Low-cut and Gain via third-party software*
Switch Logic	Local Mode: Touch-sensitive capacitivetype user switch function: toggle (mute on power up), toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: +30 dB, +40 dB, +50 dB Remote M
Weight (Microphone)	393 g (13.8 oz)
Weight	393 g
Dimensions	110.0 mm (4.33″) maximum length, 89.5 mm (3.52″) maximum width, 35.8 mm (1.41″) maximum height

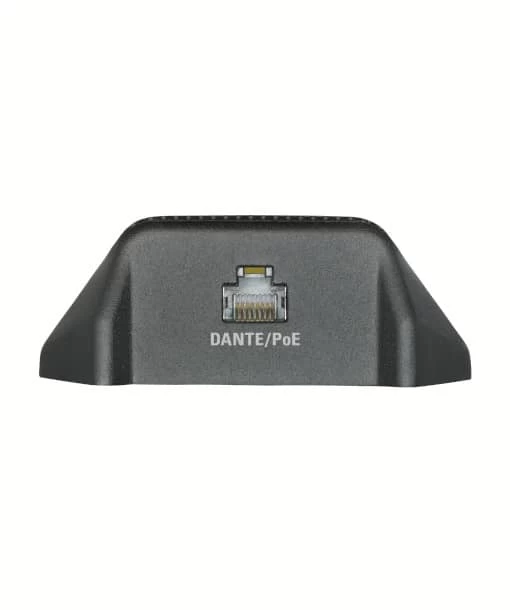

Output Connector	RJ45
Optional Interchangeable Elements	UE-O omnidirectional (360°) UE-H hypercardioid (100°)
Accessories Included	Soft protective pouch
Notes	Dante Network Specifications Physical level: standard Ethernet Connector: single RJ45 Cable quality: Shielded CAT5 or CAT6 recommended Transmission speed: 100 Mbps



INCLUDED BY DEFAULT

• ATND971a
• Soft protective pouch
