The AVMATRIX VS0605U is a 6-channel switcher that supports six sources over your choice of four 1080p60 SDI, two UHD 4K60 HDMI or two DVI-I, and two USB Type-A media player inputs. Everything is scaled to up to 1080p/i at 60 fps and output over three SDI/HDMI PGM
- 4k60 input format
- USB 3.0 output
- 4x 3G-SDI and 2x HDMI/DVI-I/VGA inputs
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

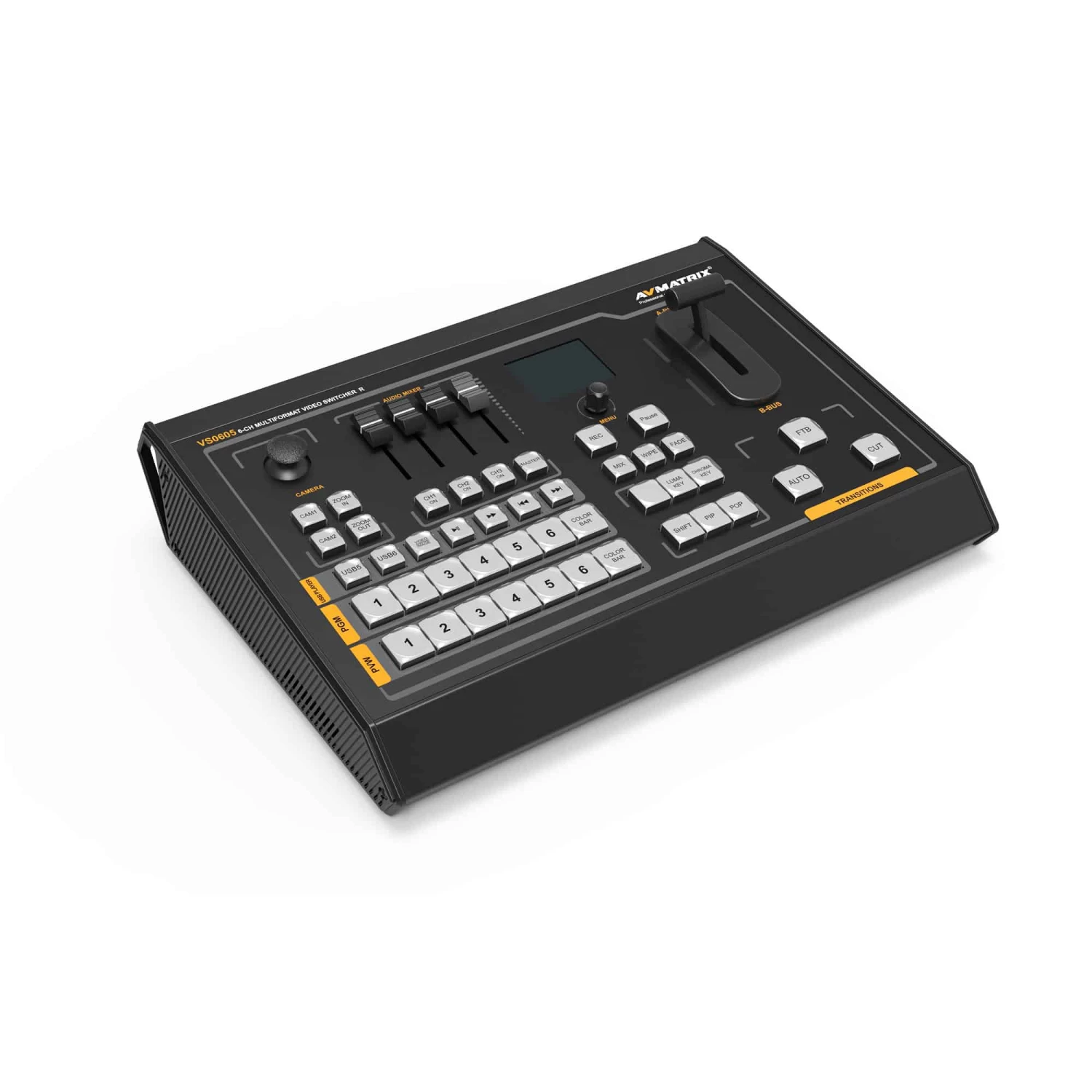

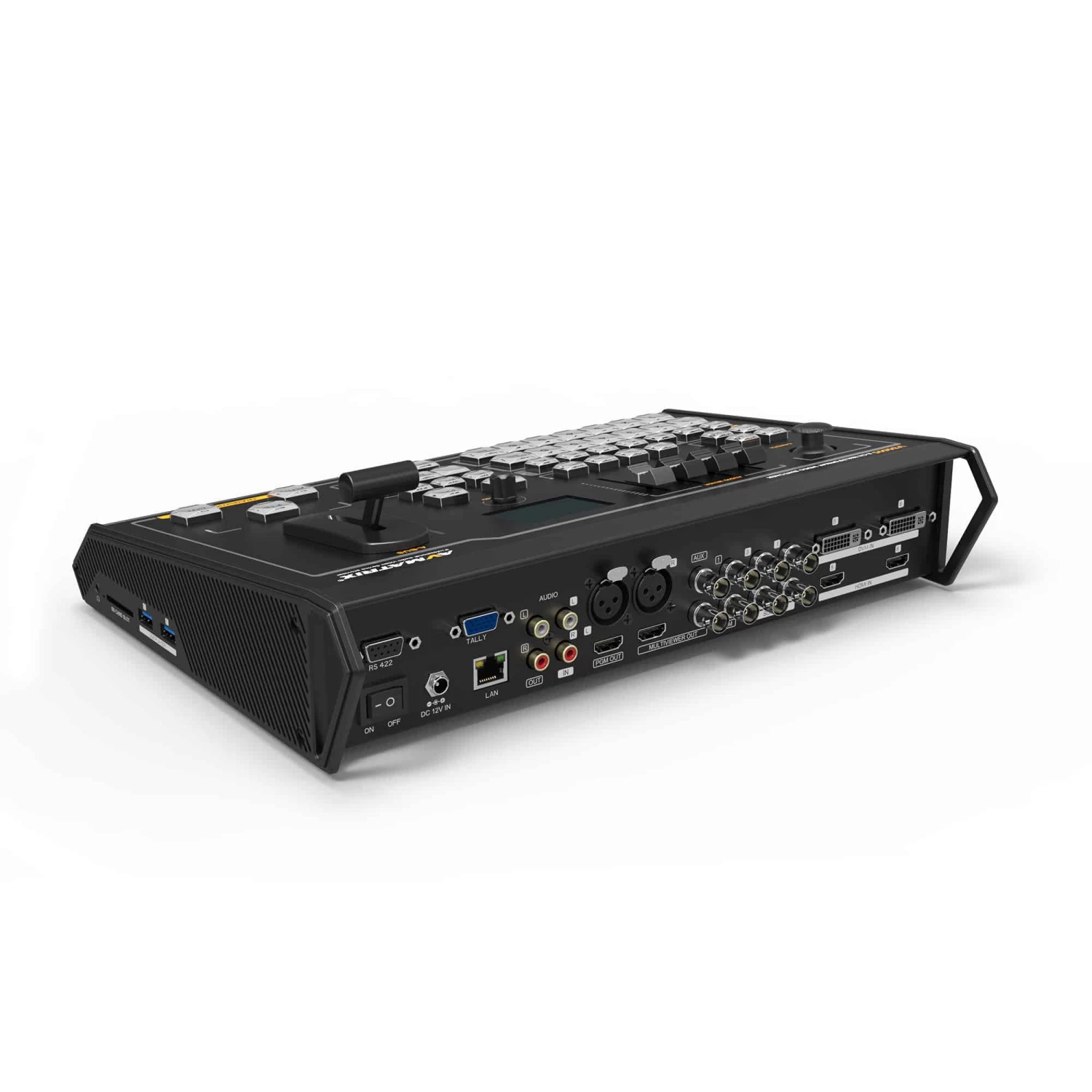

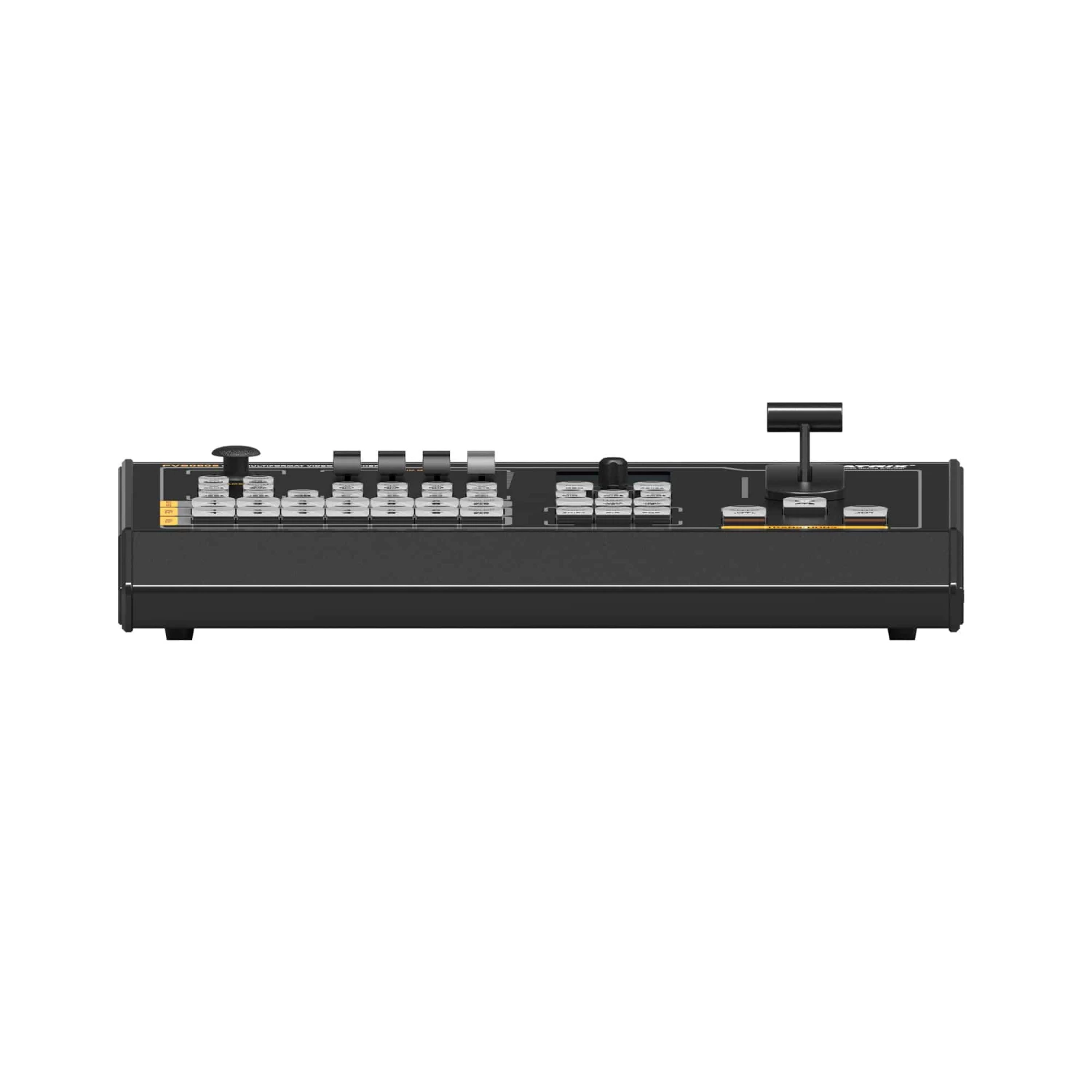

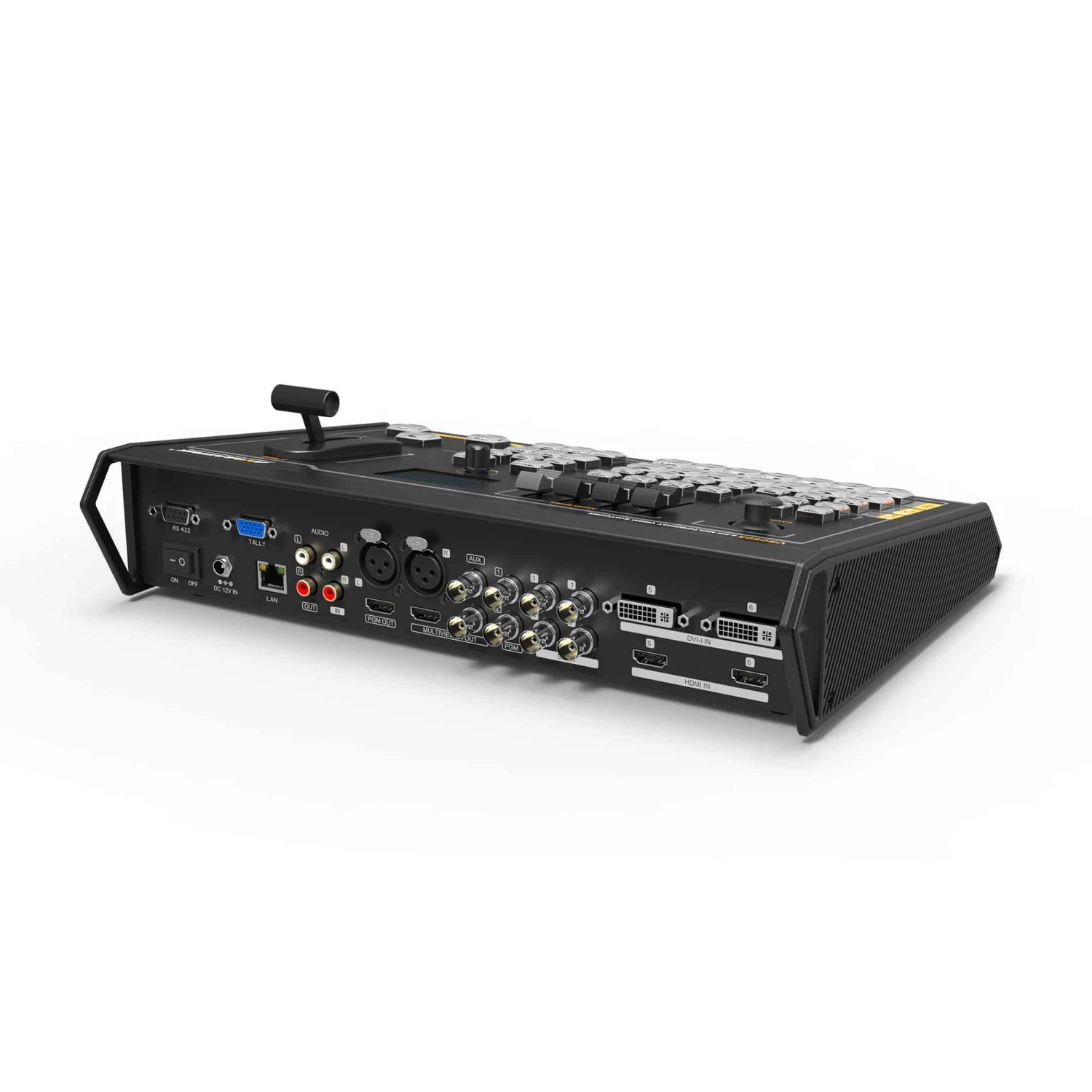

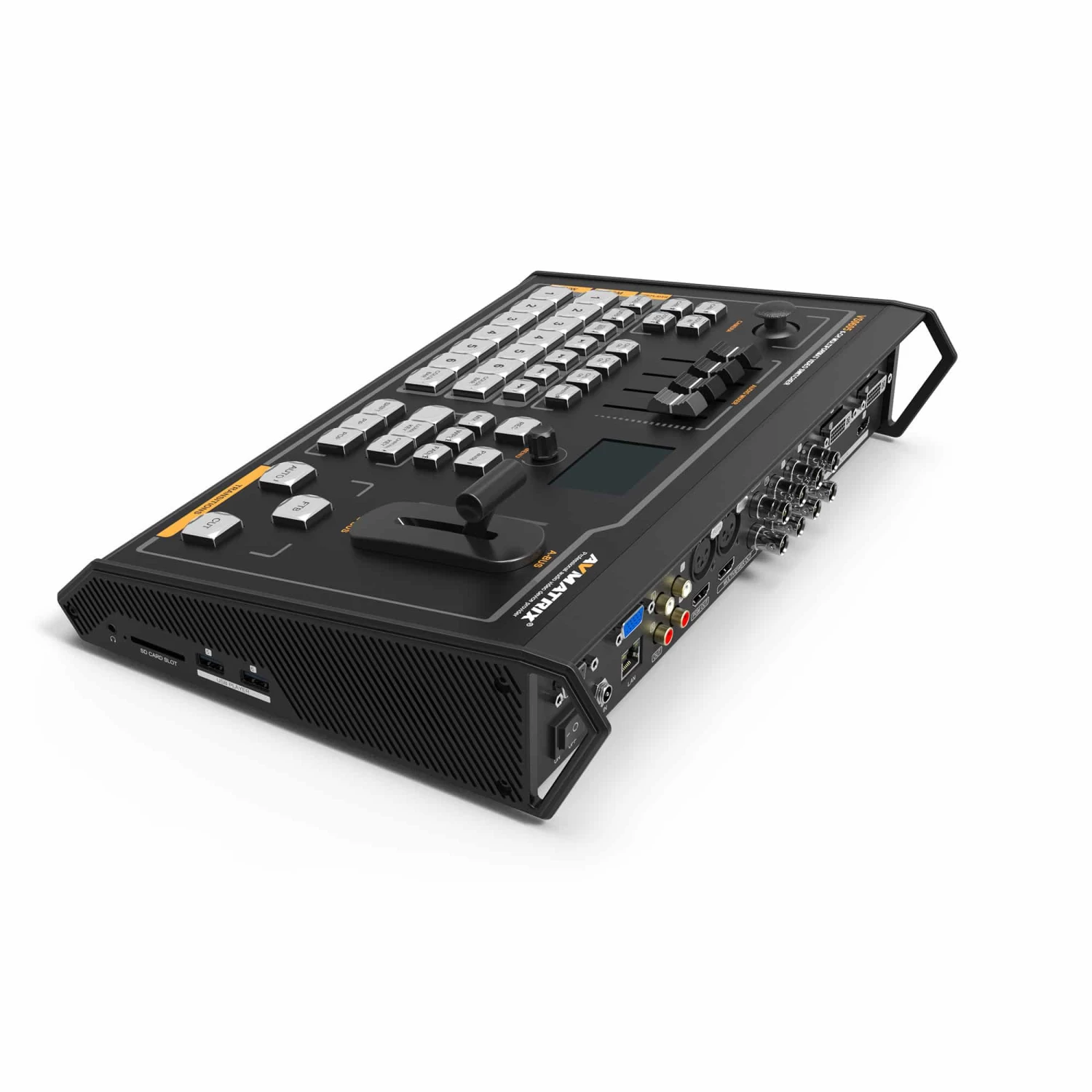

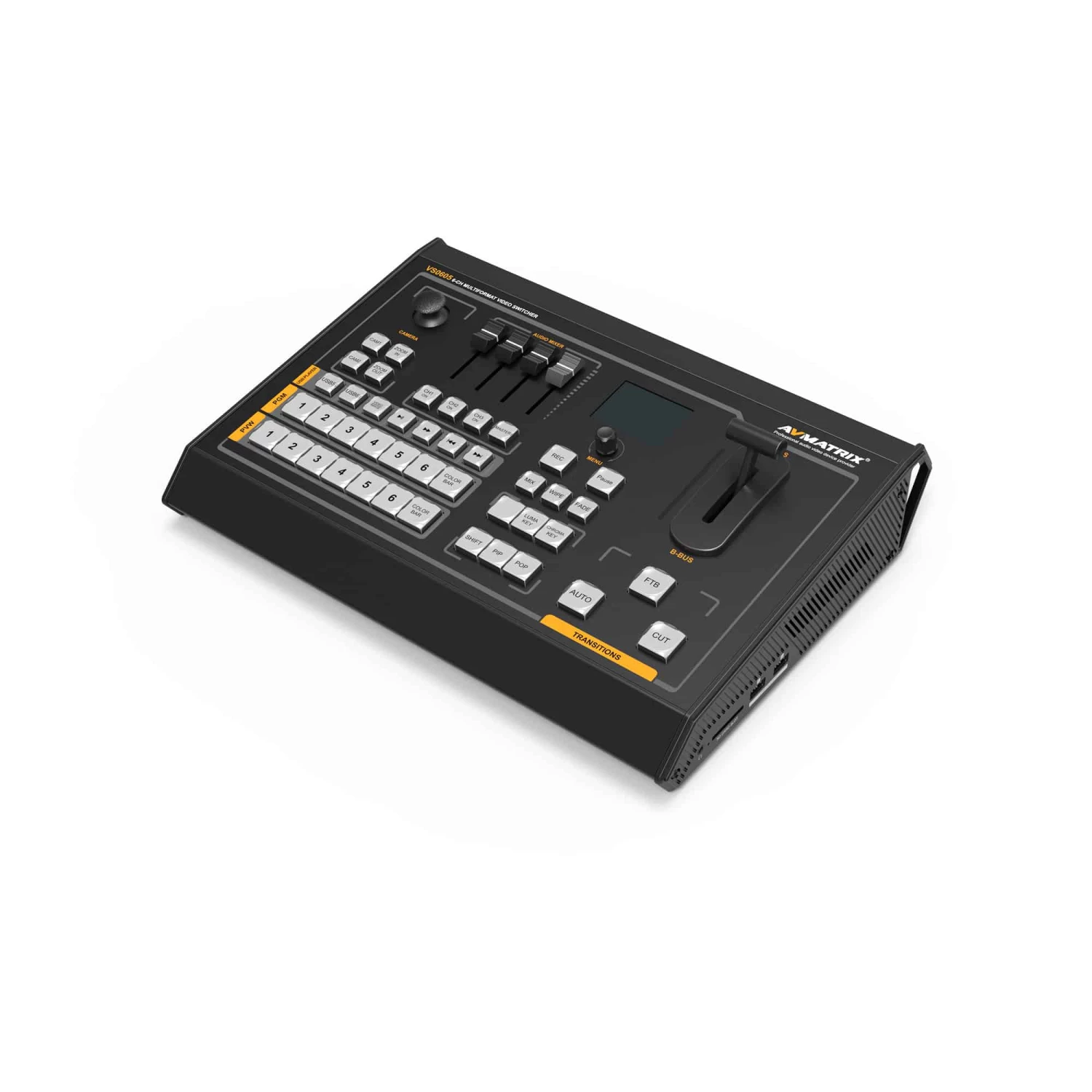

AVMATRIX VS0605U 6-Channel SDI/DVI-I/VGA/HDMI Multi-Format Video Switcher with PTZ control
The AVMATRIX VS0605U is an all-in-one 6-Channel Video Switcher with recording option and integrated PTZ control, audio mixer with XLR, RCA and embedded audio. You can switch up to six different video inputs 4×SDI and 2×DVI-I/ HDMI/ VGA/ USB player inputs with built-in scaler. The multiview layout allows you to show preview, program, and input sources all in a 9-window split, with clock and settings info in the ninth window at the bottom right. On the same screen, PIP size and positioning are adjustable. Over a USB Type-C interface, UVC/UAC streaming can be set up plug-and-play with a 1080p60 uncompressed video/audio capture workflow.
For Live streaming you can also connect the Kiloview E2 and you are ready to go to any RTMP streaming service like YouTube Live, Vimeo, Dacast or Facebook Live.
The built-in audio mixer can manage six channels of SDI/HDMI/USB embedded audio and two XLR/RCA audio inputs. Three stereo channels can be controlled individually via the faders and corresponding buttons. PGM out can be recorded to an optional SD card in up to 1080p60. Also, PTZ cameras can be controlled from the switcher’s joystick over VISCA and Pelco-D/P protocols via the RS-422/485 DB-9 port. The multi-format switcher offers a highly comprehensive solution suitable for sports, education, virtual studios, concerts, and many other live event and broadcast applications.
SPECIFICATIONS AVMATRIX VS0605U
| Model | VS0605U | |
| Functions | Transitions & Effects | Manual T-BAR/AUTO/CUT/MIX/FADE/FTB |
| Keys & Layouts | Luma Key/Chroma Key/PiP/PoP/Multiview | |
| Audio mixer | AFV/Mixing | |
| Record | SD card, H.264, PGM out 1080P60 | |
| Streaming | USB type-C uncompressed capture, UVC & UAC | |
| Inputs and outputs | Video inputs | 4×3G/HD/SD-SDI 2×HDMI 2.0 or 2x DVI-I(VGA compatible) |
| Video outputs | PGM Outputs: 2×3G/HD/SD-SDI; 1×HDMI Type A PGM Streaming Output: 1×USB 3.0(Type-C) Multiview Output: 1×3G-SDI; 1×HDMI Type A AUX (PVW/PGM) Output: 1×HD/3G-SDI | |
| USB Media player | 2x USB type-A | |
| PTZ Camera control | 1x RS-422 (compatible with RS-485) | |
| Tally | DB-15 | |
| Formats | SDI input format | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC |
| HDMI input format | 4K 60/50/30, 2K 60/50/30 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 | |
| Multiview output Format: | 1080p 60 | |
| PGM output format | 1080p 60/50/30/25/24; 1080i 50/60 | |
| SDI Compliance | SMPTE 259M/ SMPTE 292M/ SMPTE 424M | |
| Audio | Audio input | 1×3.5mm Stereo audio; 1×RCA(L/R) |
| Audio output | 1×3.5mm Stereo audio; 1×RCA(L/R) | |
| Power | Power supply | DC12V, 1.8A, 22W |
| Environment | Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ | |
| Relative Humidity | 20%~70%RH | |
| Size | Dimensions (LxWxD) | 338.7×260×70.2mm |
| Weight | Net weight: 3KG Gross Weight: 4KG | |
INCLUDED BY DEFAULT
- AVMATRIX VS0605U
- 1×Power Supply (DC12V 5A)
- 1×RS422 Connector
- 1×User Manual
Features
| Brand | AVMatrix |
|---|---|
| SKU | AV-VS0605U-BSTOCK |
| MPN | VS0605U |
| EAN | 6971118000388 |
