AVMATRIX HVS0401E 4 Channel HDMI/DP Video Switcher

AVMATRIX HVS0401E 4 Channel HDMI/DP Video Switcher

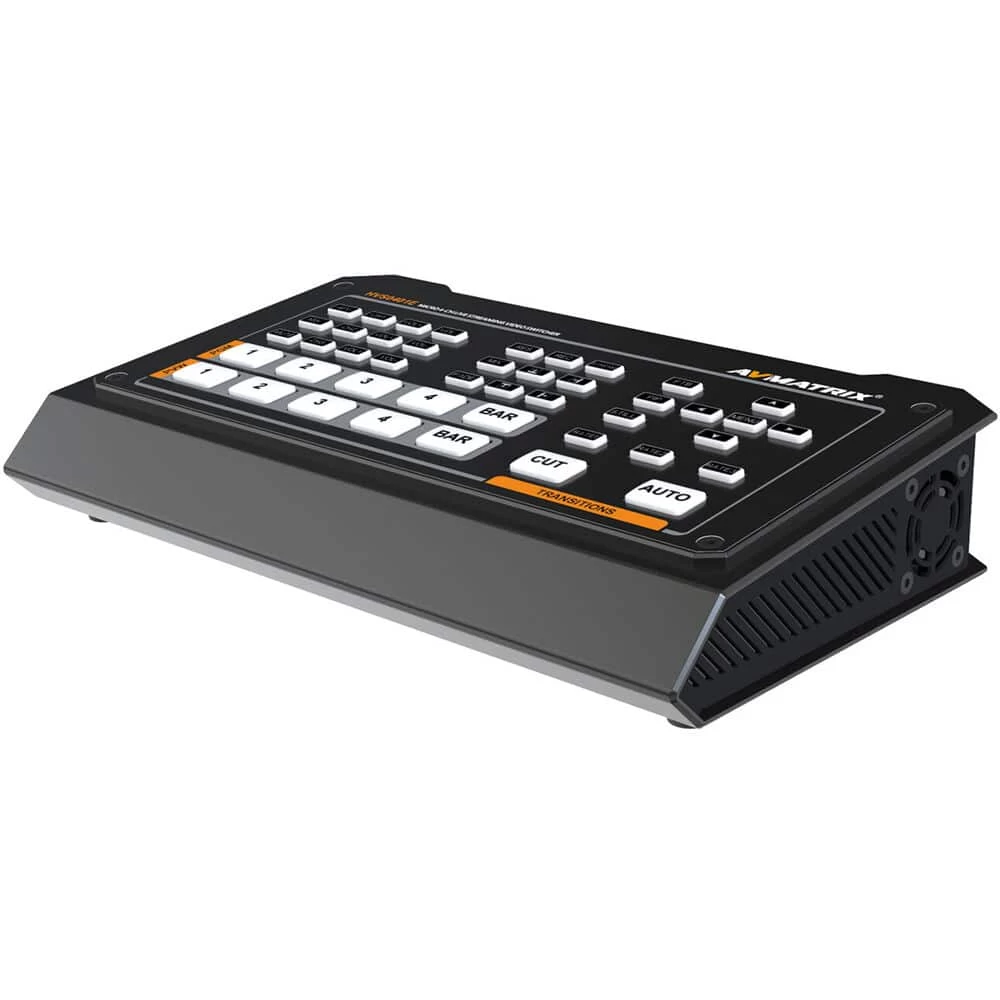

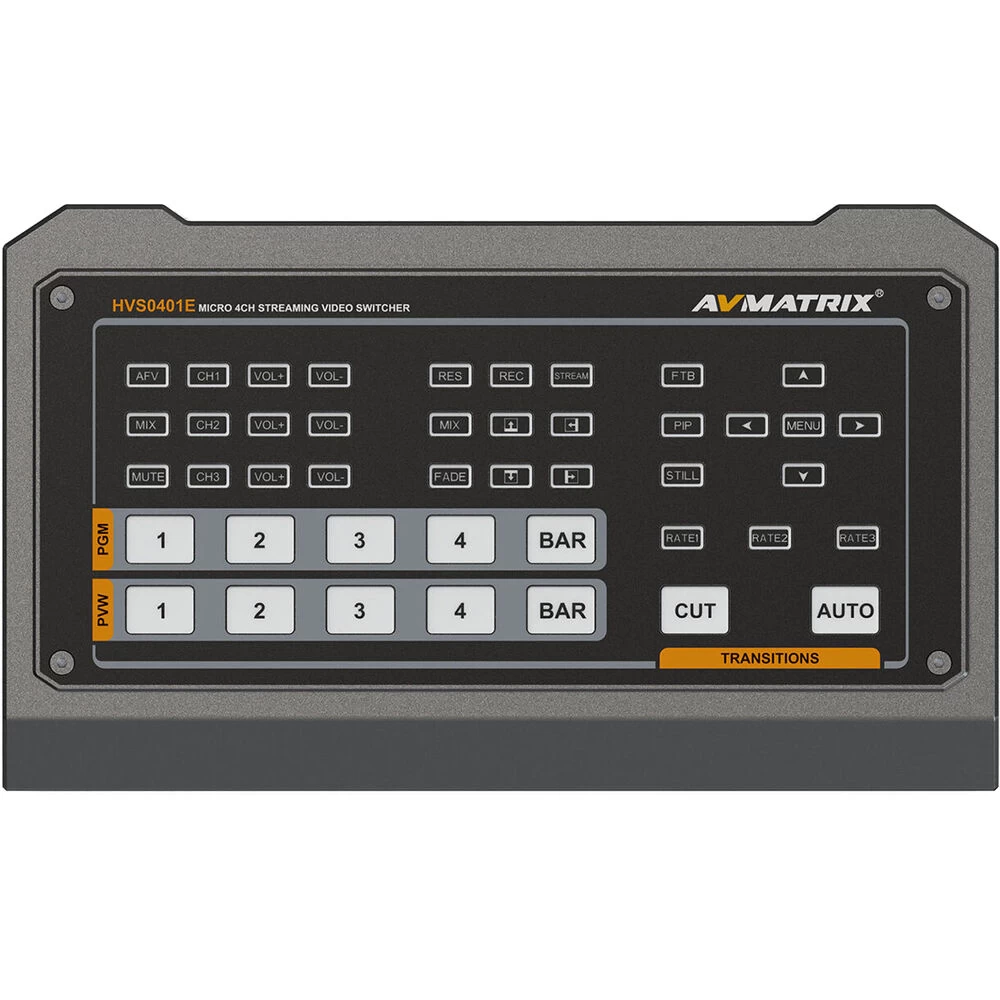

With the AVMATRIX HVS0401E you can stream RTMP via its LAN port and record the PGM to an USB/SD Card. The switcher supports up to 1080p60 video input and output with embedded audio, and offers audio mixing using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port. With the USB Type-C output you can also get the PGM as webcam in MS Teams, Zoom, Skype, WebEx etc.

NOTE: RTMP streaming and USB Webcam don’t work simultaneously.

KEY FEATURES STREAMING SWITCHER

SPECIFICATIONS AVMATRIX HVS0401E

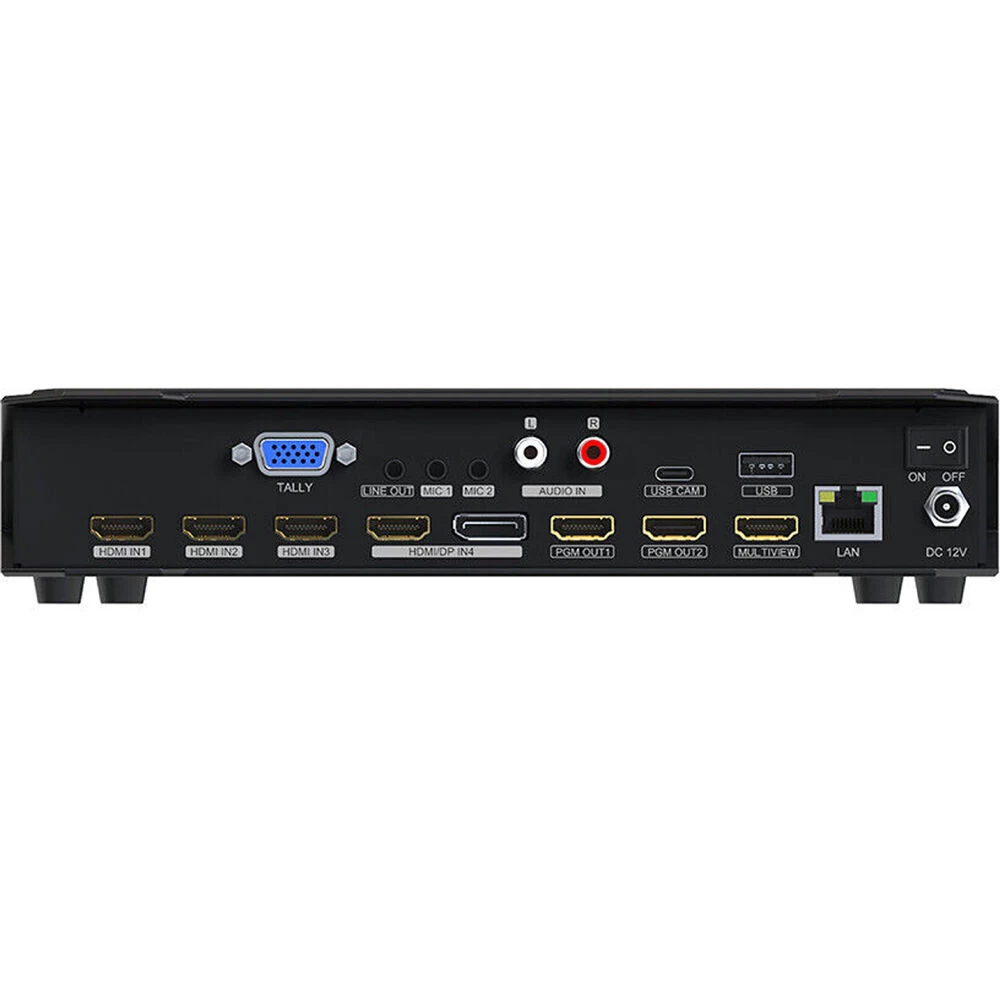

CONNECTION
Video In	IN1~IN3: HDMI type-A ×3; IN4: HDMI type-A/ Display Port ×1
Video Out	PGM: HDMI type-A×2 Multiview: HDMI type-A×1 USB Capture: USB type-C ×1 Streaming & PC control: LAN Port×1
Audio In	MIC/ Line ×2 (3.5mm audio) RCA ×2 (stereo audio)
Tally Port	DB-15 ×1
Power In	DC 12V IN ×1
STREAM & RECORD
Encode Bitrate	2/ 4/ 8/ 12/ 16/ 24/ 32Mbps
Rate Control	CBR/ VBR
Stream Protocol	RTMP
Storage Format	SD card:FAT32/exFAT; USB disk: FAT32/exFAT/NTFS
REC Format	MP4/ TS
Encoder	H.265/ H.264 High/ H.264 Main/ H.264 Base
REC File Segment	1/ 5/ 10/ 20/ 30/ 60/ 90mins
FUNCTIONS
Functions	Image Still/ Transition Speed/ MUTE/ Audio follows Video/ Audio Mixer
Transitions	AUTO/ CUT
Effects	WIPE/ MIX/ FADE/ FTB
Layouts	PIP, Multiview
STANDARDS
HDMI In Format Support	1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98/23.976 1080i 50/ 59.94/ 60 720p 60/ 59.94 /50/ 30/ 25/ 24 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
PC HDMI/DP Input Format Support	2560×1600, 2048×1152, 1920×1080,1680×1050, 1600×1200, 1600×900, 1400×1050, 1440×900, 1366×768, 1360×768, 1280×1024, 1280×960, 1280×800, 1280×768, 1280×720, 1280×600, 1152×864, 1024×768, 800×600, 640×480
HDMI PGM Out	1080p 60/ 50/ 30/ 25/ 24 1080i 60/ 50
HDMI Multiview Out	1080p60
HDMI Color Space	RGB/ YCbCr
USB Capture Out	MJPG/ H.265/ H.264 , Up to 1080p60
OTHERS
Power	≤14.4W(12V 1.2A)
Dimension (LWD)	238.5×140.4×44.5mm
Weight	Net: 968.3g; Gross: 1365.8g
Temperature	Working: -20℃~60℃, Storage: -30℃~70℃
Standard Accessories	Power supply(12V 2A ) ×1, USB cable(type A-C) ×1, Tally connector(DB-15) ×1
Optional Accessories	Handbag ×1, Tally cable ×1

INCLUDED BY DEFAULT

• AVMATRIX HSV0401E
• 1x Power supply (12V 2A)
• 1x USB cable (type C-A)
• 1x Tally connector (DB-15)
