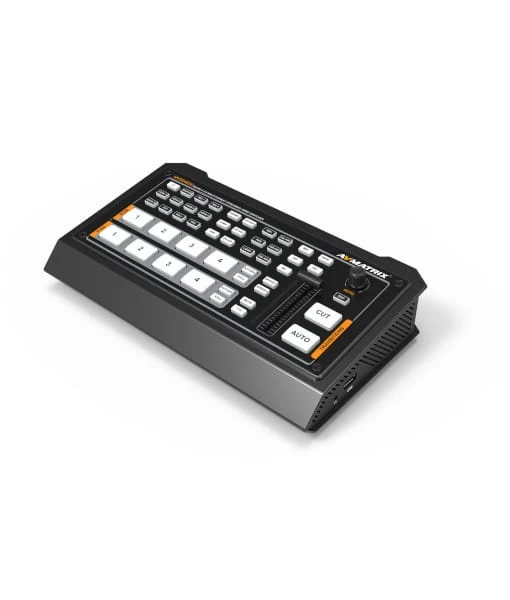

AVMATRIX HVS0402U 4 Channel HDMI Video Switcher

AVMATRIX HVS0402U 4 Channel HDMI Video Switcher with Control software

With the AVMATRIX HVS0402U you can switch between four HDMI inputs with embedded audio and get an overview of all your sources through the HDMI multiview output. In addition there is a HDMI program output that uses auto scaling. Moreover the program output is also available via the USB Type-C port to a computer for video capture and streaming applications. The audio can be mixed using the two analog stereo 3.5mm mic/line inputs and the embedded HDMI audio sources. At last it is possible to remotely control the switcher via IP using software that is downloadable from the AVMATRIX website. Download Control Software

For Live streaming you can also connect the Kiloview E2 and you are ready to go to any RTMP streaming service like YouTube Live, Vimeo, Dacast or Facebook Live.

KEY FEATURES STREAMING SWITCHER

SPECIFICATIONS AVMATRIX HVS0402U

Model	HVS0402U
Functions	Transitions & Effects	T-Bar/AUTO/ CUT Wipe (9×2 patterns)/ Mix/ DIP/ Pattern/ Still(freeze)/ MUTE/ FTB
	Keys & Layouts	2 styles of Multiview layout (6 windows and status) Upstream Key: Luma Key ×1/ Chroma Key ×1/ PiP ×2/ POP Downstream Key: DSK ×1/ Logo ×1
	Audio mixer	HDMI ×4 and MIC/ Line level ×2; Audio delay: 0-500ms
	Media	Default image: 49 preset patterns Local image: up to 16 imported images Capture image: up to 16 captured images
	Generators	Pattern generator ×1 Color generators ×2

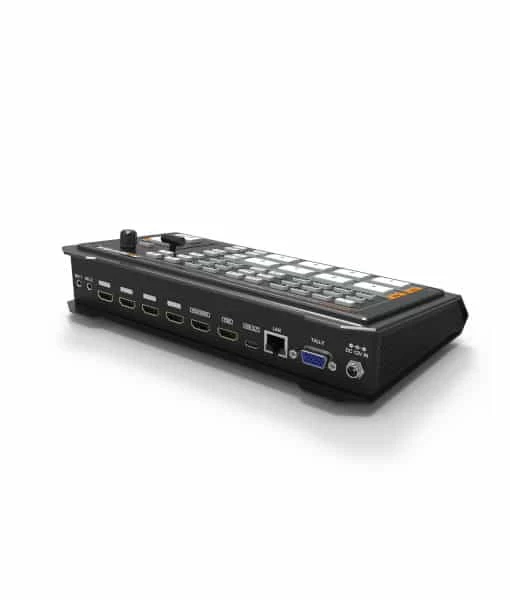

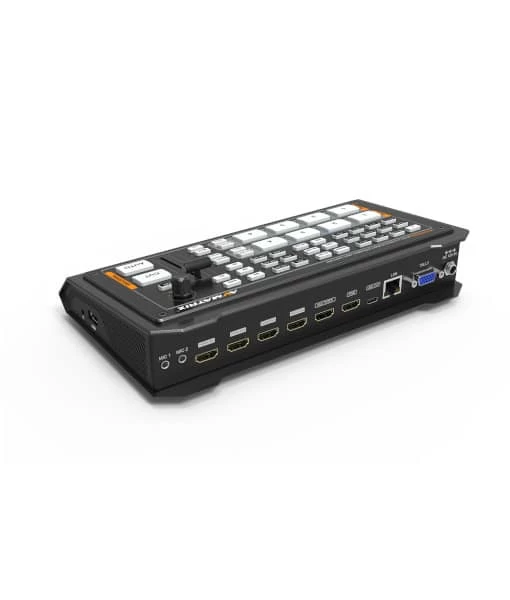

Inputs and outputs	Video inputs	HDMI type-A ×4
	Video outputs	HDMI type-A PGM ×1 HDMI type-A Multiview ×1 USB2.0 type C ×1 (Streaming on PC) Assignable HDMI 1~4, PGM, Clean PGM, PVW, Color bar, Multiview

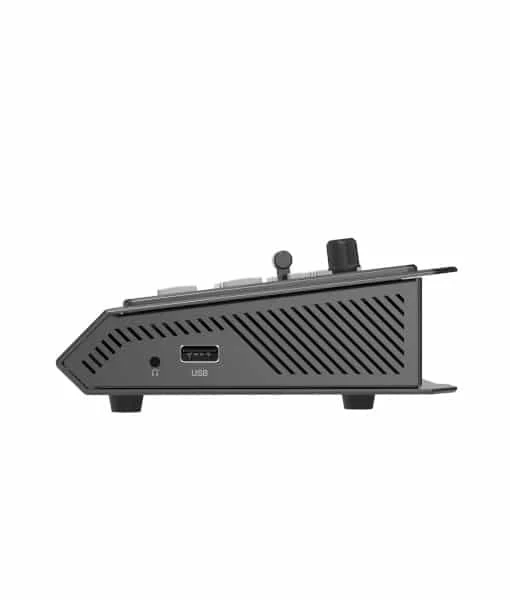

	USB Media player	USB type-A ×1(USB disk port for image import and firmware upgrade)
	Tally	DB-15
Formats	HDMI input format	1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98 1080i 50/ 59.94/ 60 720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
	PGM output format	1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
	Multiview output Format:	1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
Standards	Media Format	USB disk format support: FAT32, Ext3, Ext4, up to 256GB Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga Logo size support: 10×10 pixel to 600×600 pixel
	HDMI Color Space	RGB/ YUV
Audio	Audio input	MIC/ Line level (3.5mm stereo audio) ×2
Power	Power supply	Wide voltage: 7~24V; Operating power:12W (12V 1A)
Environment	Temperature	Working: -20℃~60℃, Storage: -30℃~70℃
Size	Dimensions (LxWxD)	244.5 × 143.2 × 44.5mm
	Weight	Net: 1030g; Gross: 1500g



INCLUDED BY DEFAULT

• AVMATRIX HSV0402U
• 1x Power supply (12V 2A)
• 1x USB cable (type A-C)
• 1x Tally connector (DB-15)
