Name: Winkel bij Beveiligingscamera Winkel voor de Ultieme Geschenken: AVMATRIX PKC4000 NDI® PTZ Camera Controller voor Iedereen in Nederland.
SKU: AV-PKC4000-NDI
Price: 96.99 EUR
Availability: InStock

Aanbieding!

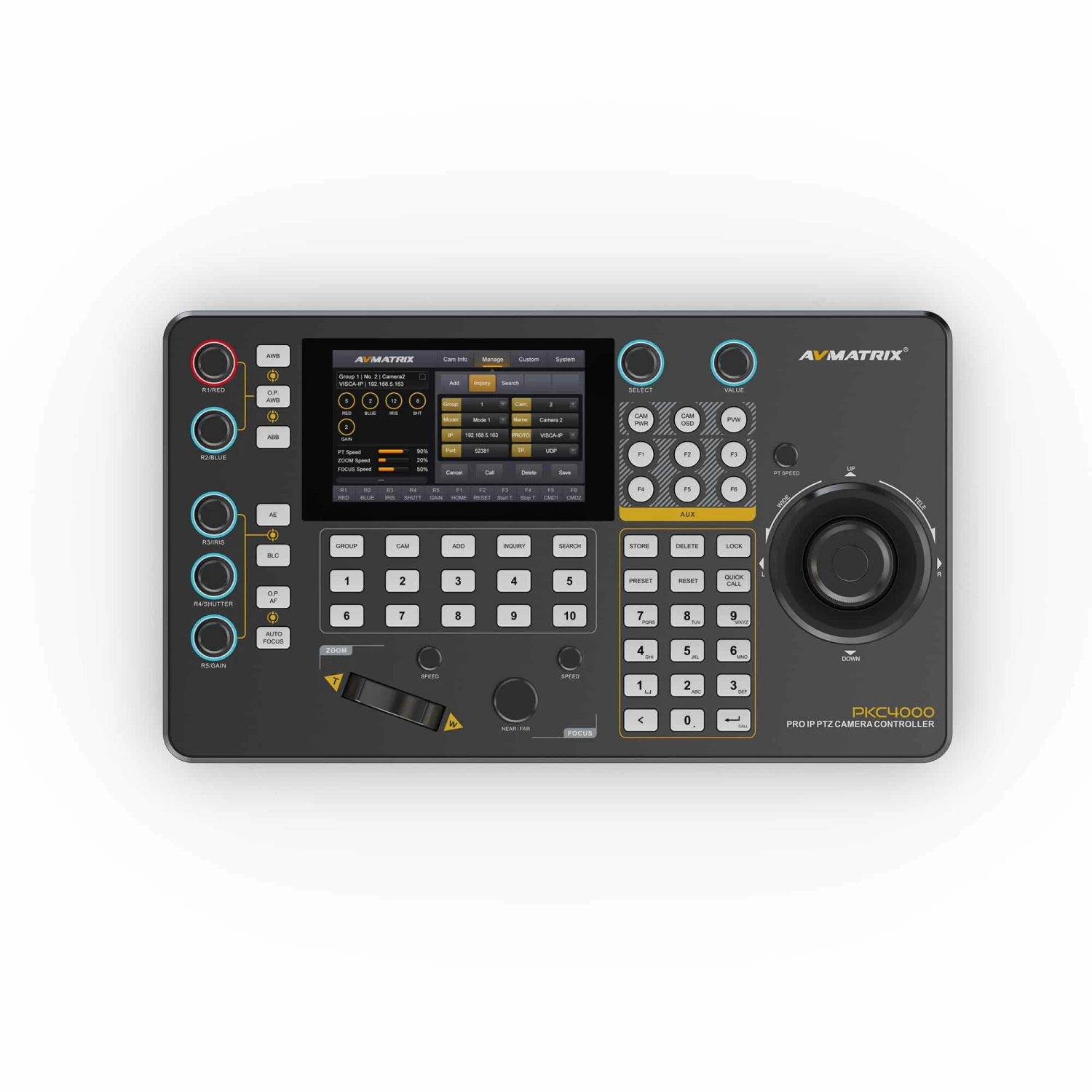

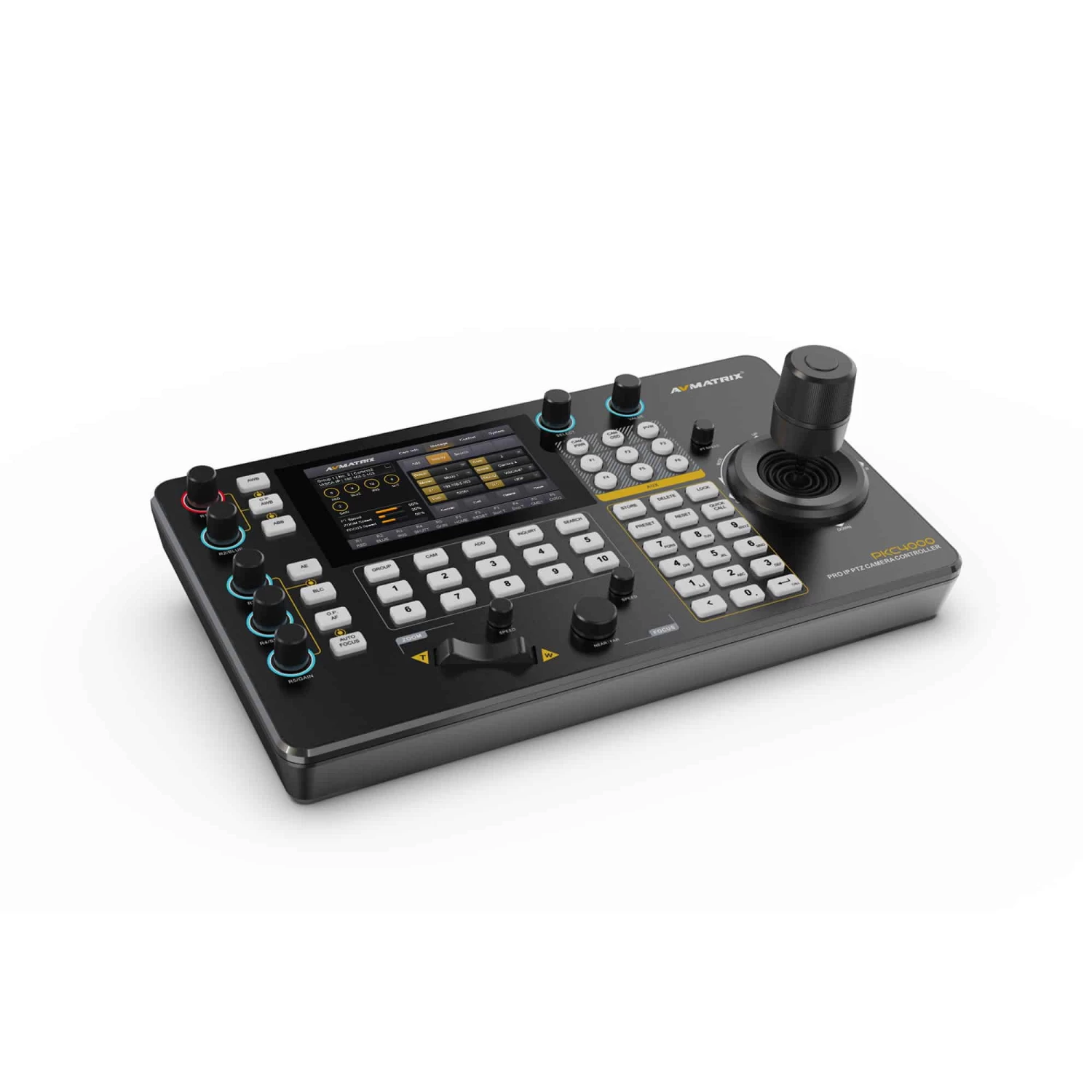

AVMATRIX PKC4000 NDI® PTZ Camera Controller

AVMATRIX PKC4000 NDI® PTZ Camera Controller - Afbeelding 2

AVMATRIX PKC4000 NDI® PTZ Camera Controller - Afbeelding 3

AVMATRIX PKC4000 NDI® PTZ Camera Controller - Afbeelding 4

AVMATRIX PKC4000 NDI® PTZ Camera Controller - Afbeelding 5

Oorspronkelijke prijs was: 373,00 €.Huidige prijs is: 96,99 €.

The AVMatrix is a professional PTZ camera controller with a 5-inch touch screen for real-time monitoring.

NDI®
Tally Support
Visca/Visca over IP
Manage up to 100 cameras

Artikelnummer: AV-PKC4000-NDI Categorieën: PTZ Cameras, PTZ Controllers

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

AVMATRIX PKC4000 NDI® PTZ CAMERA CONTROLLER

The AVMatrix is a professional PTZ camera controller, it supports RS-422 / RS-485 / RS-232 / IP control, NDI®, connects up to 100 cameras, provides the ability to control camera pan/tilt/zoom and focus, white balance, exposure, and provides more sophisticated camera settings in controlling PTZ cameras. It is widely used in education, conference, medical services and other industries.

KEY FEATURES AVMATRIX PKC400-NDI®

Easy operation with a 5-inch touch screen and 4D joystick
Supports video decoding for real-time monitoring
Supports NDI®, Visca, Visca Over IP, Pelco P&D & Onvif protocols
Control via IP, RS-422, RS-485, and RS-232
Automatic IP address assignment for quick setup
Manages up to 100 IP cameras on a single network
6 user-assignable keys for quick function access
Quick control of exposure, iris, focus, pan, tilt, etc.
Supports PoE and 12V DC power supply

TECHNICAL SPECIFICATIONS AVMATRIX PKC4000 NDI®

Model No.		PKC4000-NDI

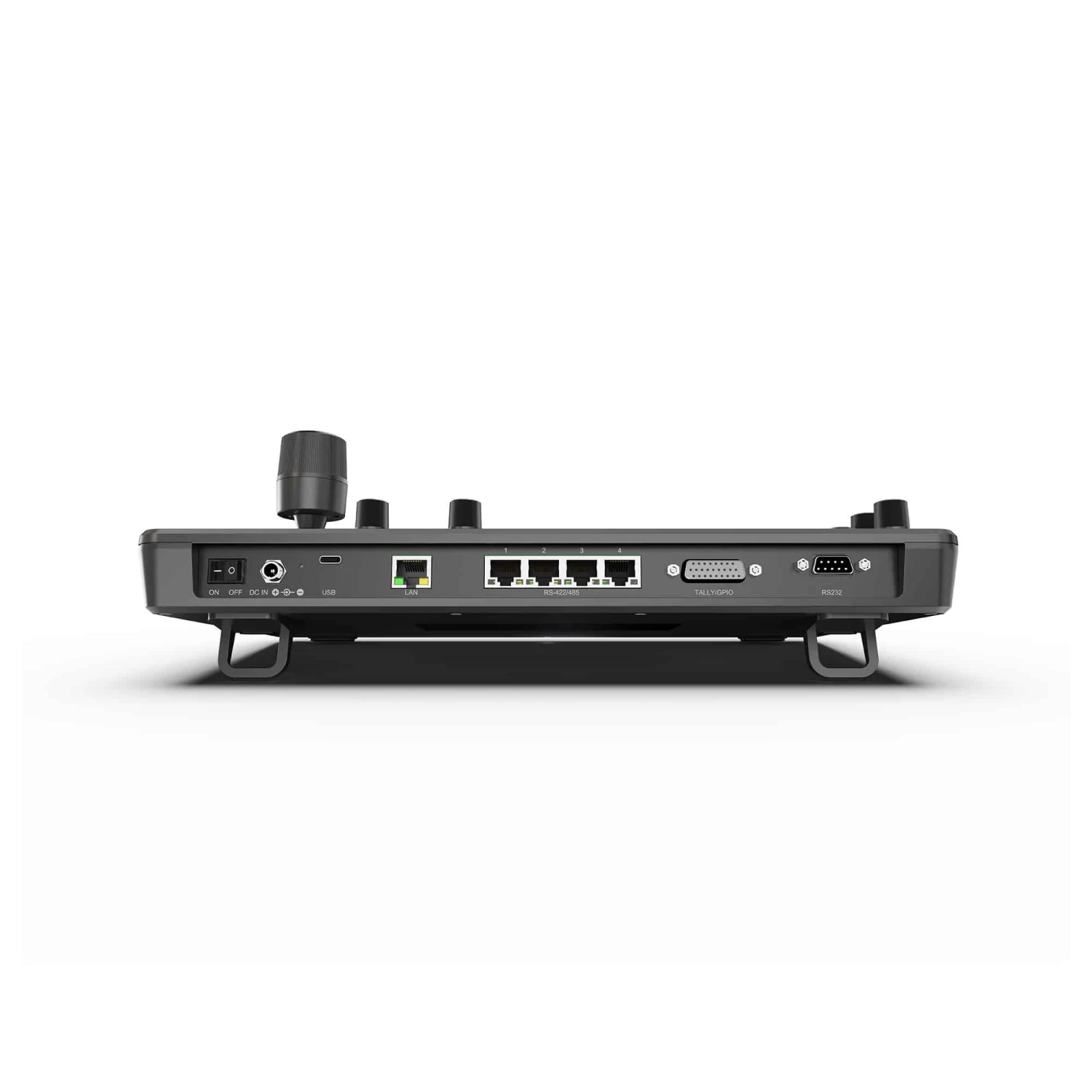

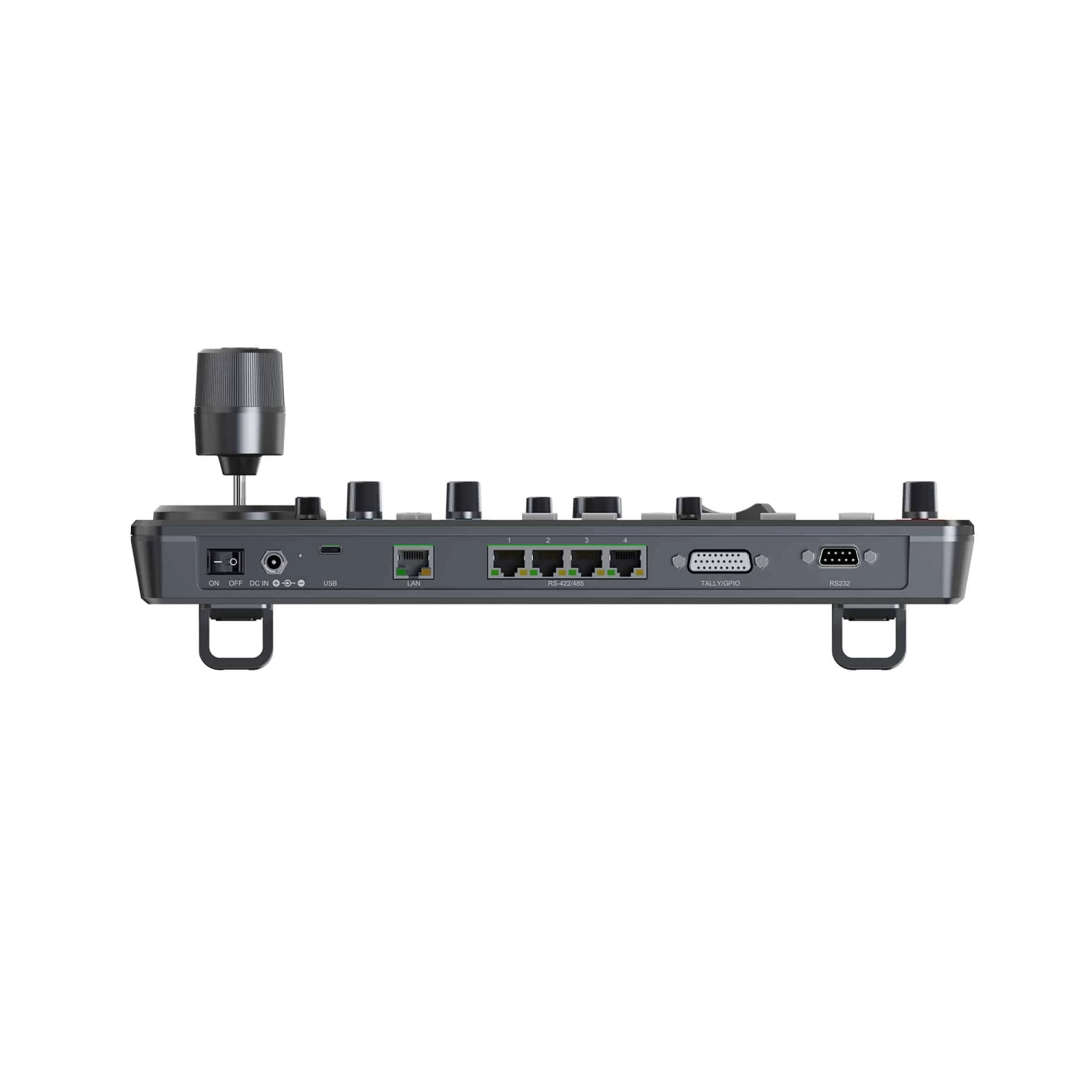

CONNECTIONS	Interfaces	IP(RJ45)×1, RS-232×1, RS-485/RS-422×4, TALLY×1, USB-C (For upgrade)
	IP Protocol	ONVIF, VISCA- IP, NDI
	Serial Protocol	PELCO-D, PELCO-P, VISCA
	Serial Baud Rate	2400, 4800, 9600, 19200, 38400, 115200 bps
	LAN Port	100M×1 (PoE/PoE+: IEEE802.3 af/at)
USER INTERFACES	Display	5 Inch Touch Screen
	Joystick	Pan/Tilt/Zoom
	Knob	Quickly control iris, shutter speed, gain, auto exposure, white balance, etc
	Camera Group	10 (Each group connect up to 10 cameras)
	Camera Address	Up to 100
	Camera Preset	Up to 255
POWER	Power	PoE+ / DC 7~24V
POWER	Power Consumption	PoE+: < 8W, DC: < 8W
ENVIRONMENT	Working Temperature	-20°C~60°C
ENVIRONMENT	Storage Temperature	-20°C~70°C
DIMENSION	Dimension(LWD)	340mm×195mm×49.5mm 340mm×195mm×110.2mm (With joystick)
DIMENSION	Weight	1730g
