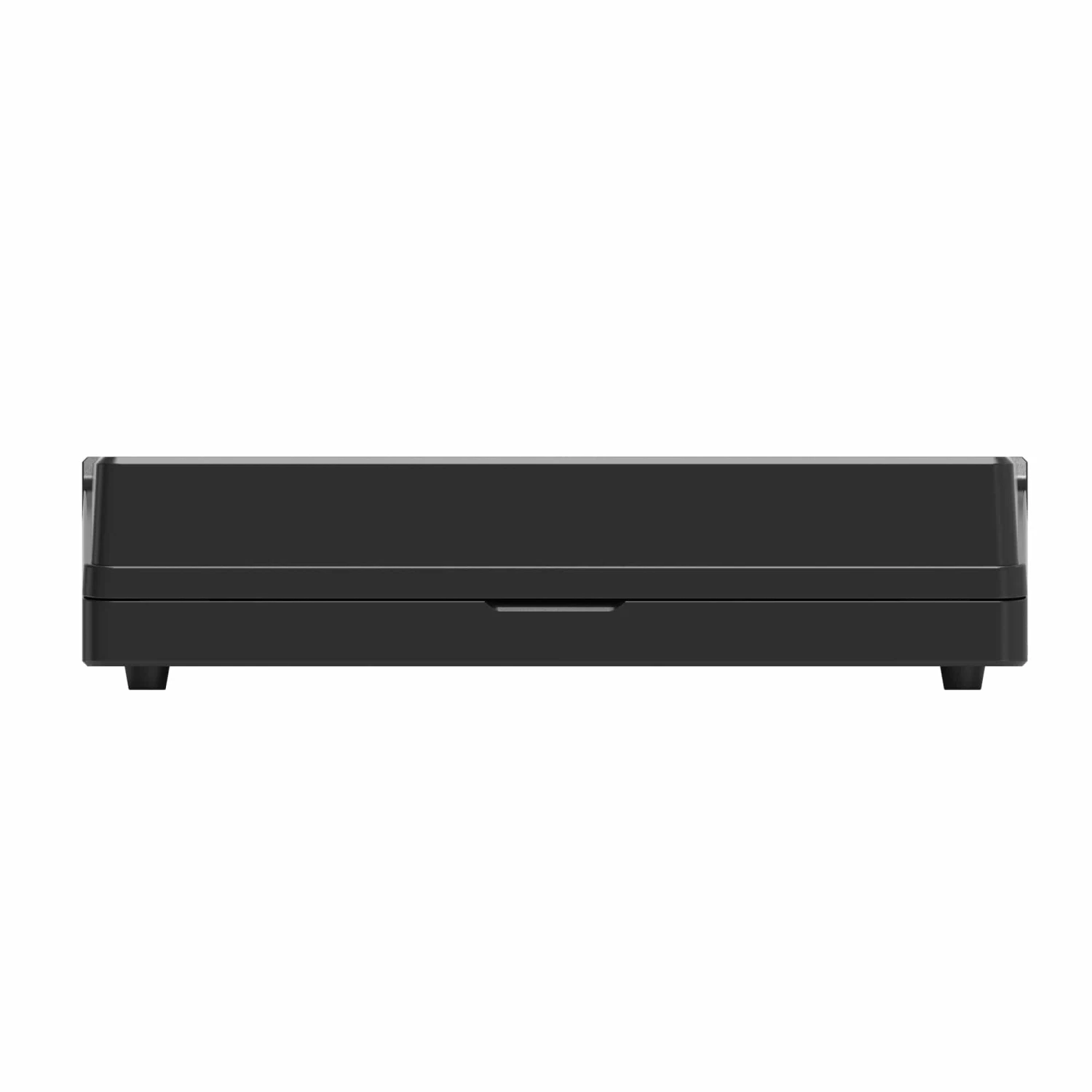

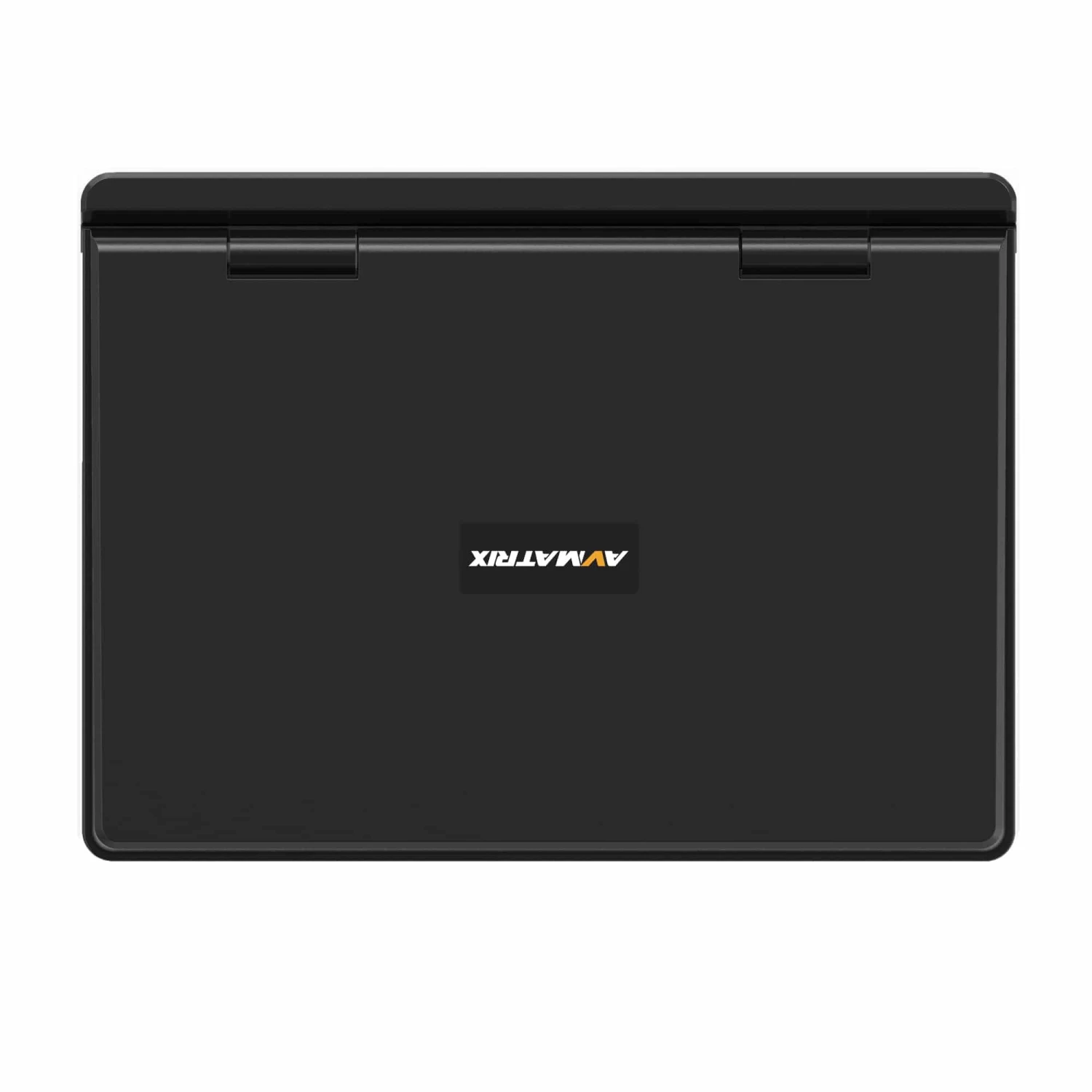

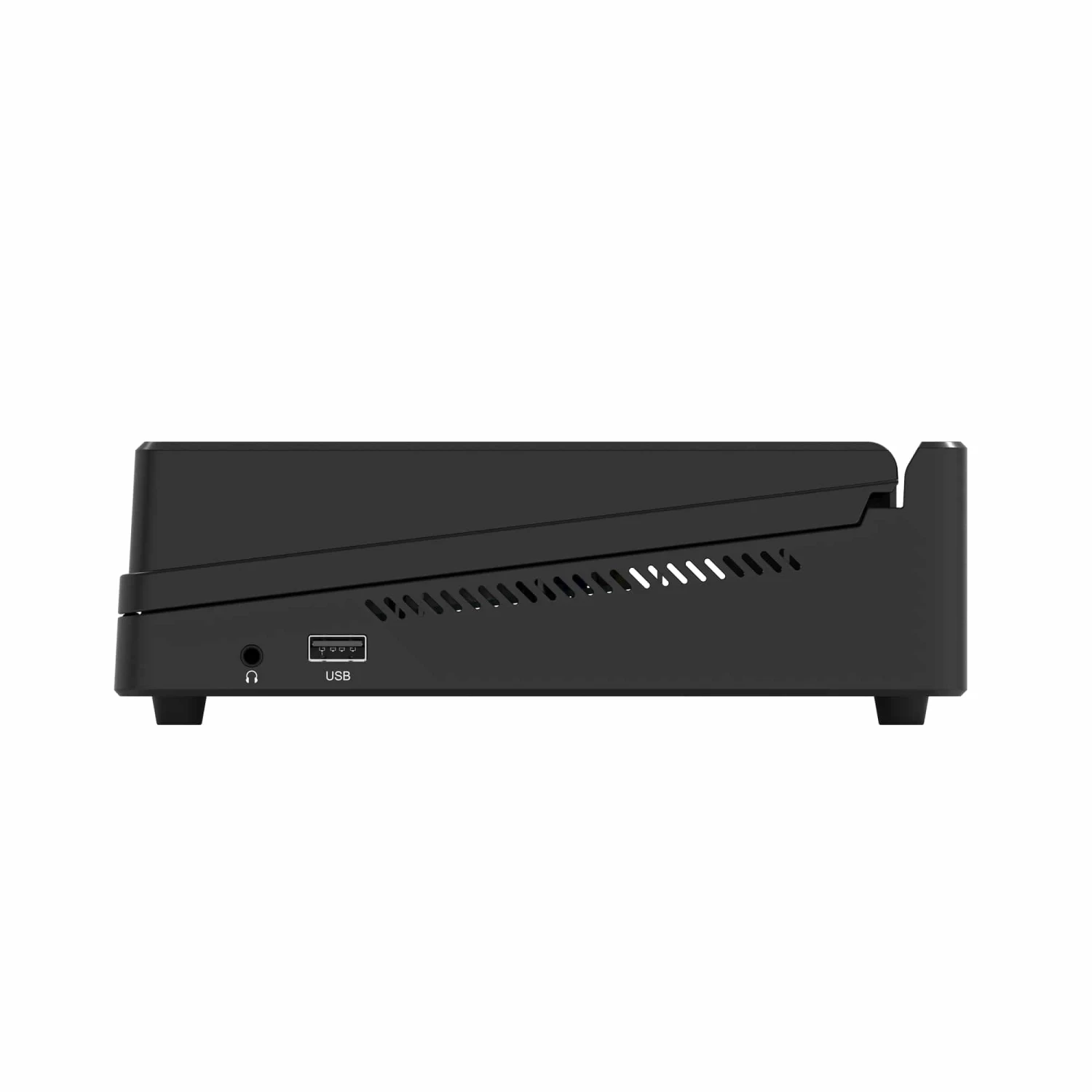

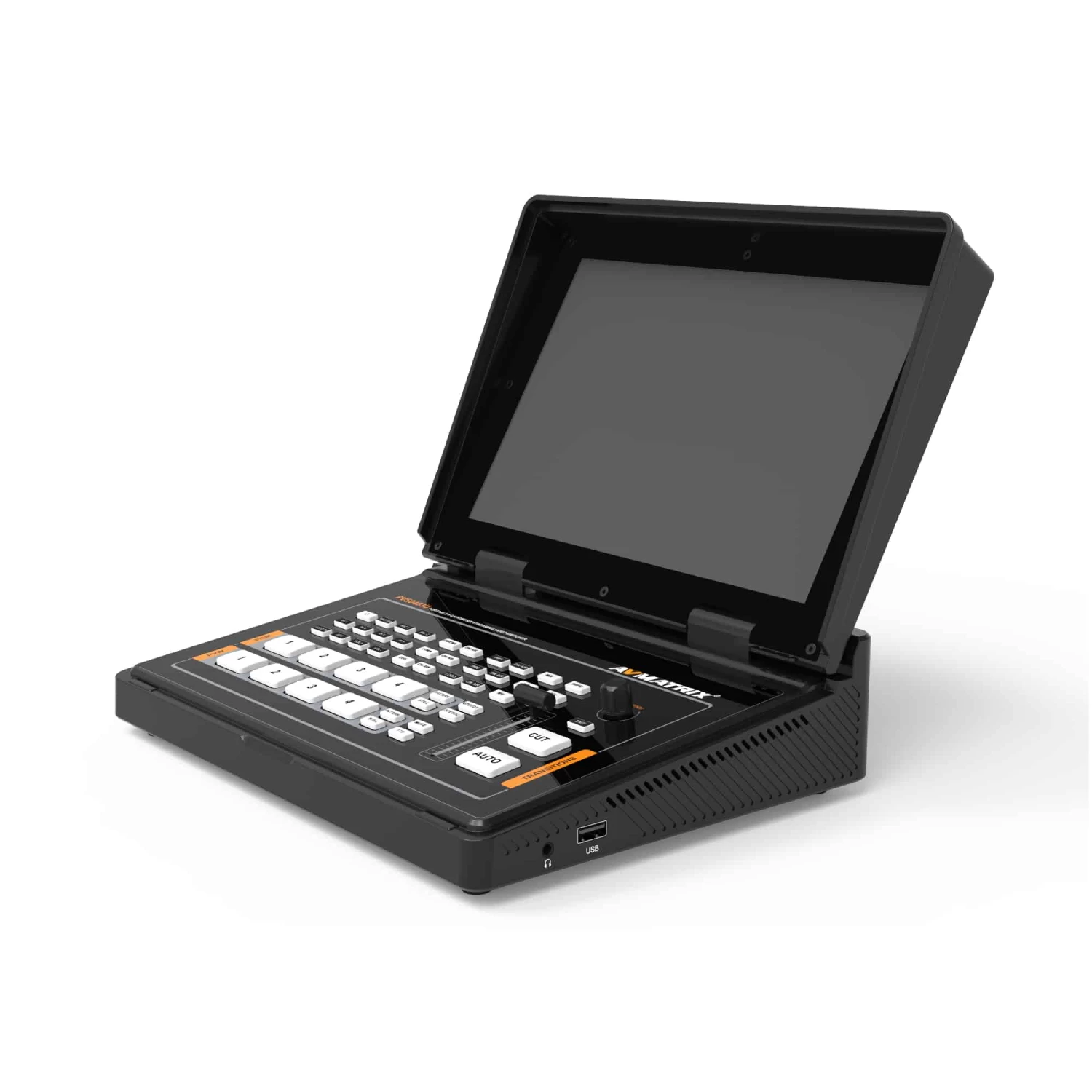

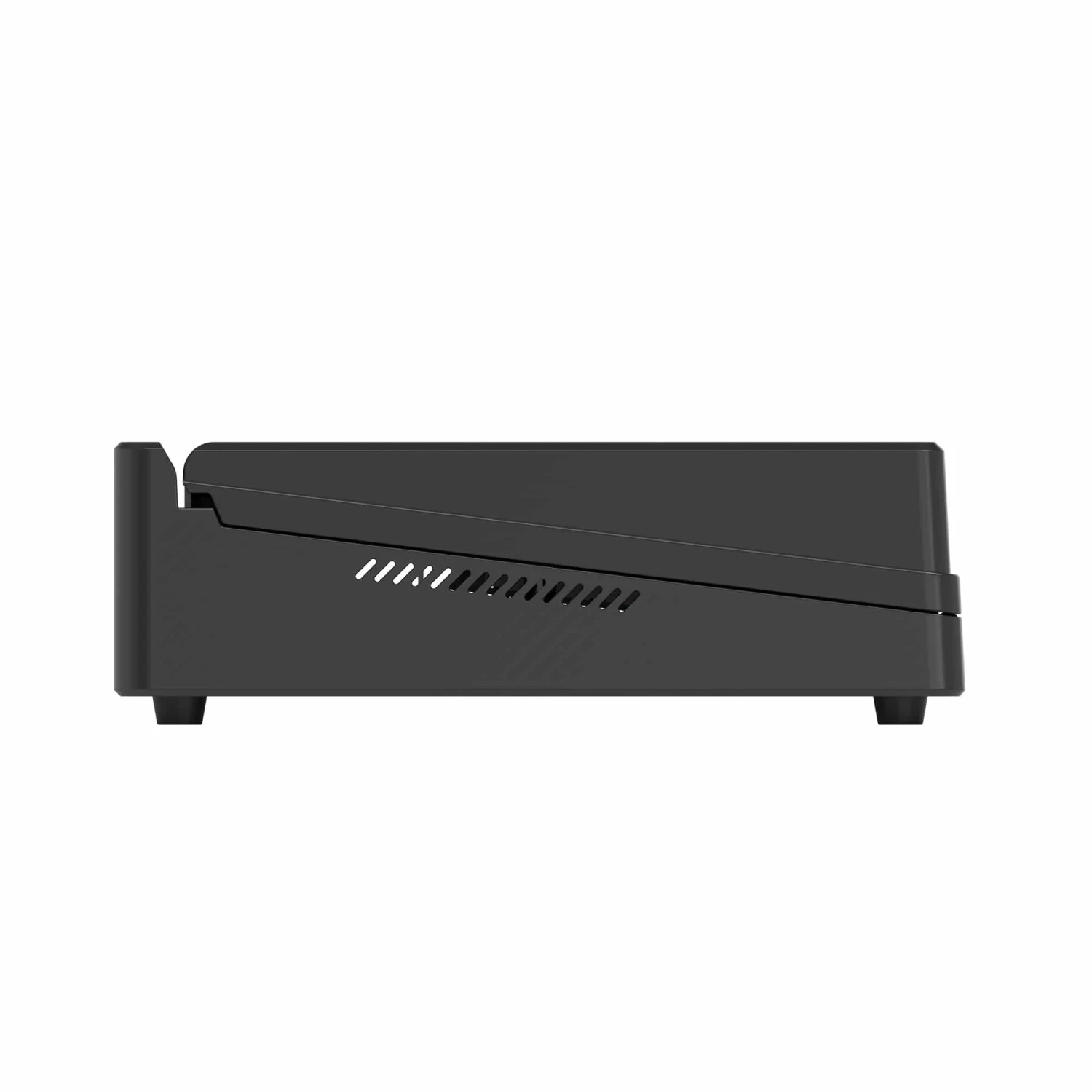

PVS0403U Portable 10.1 inch 4-CH SDI&HDMI Video Switcher

The AVMATRIX PVS0403U is a 4-channel HDMI&SDI multi-format video Switcher with a 10.1 inch FHD IPS LCD monitor. It supports various functions including video switching, audio mixing, PGM/ multiview/ Aux out, different transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library, pattern and color generator, etc. Inputs support multi-format, PGM output can be scaled, compatible with a variety of
equipment. The unit supports stream performances and presentations on PC through the USB-C port. User can also customize different settings and import or export the configuration quickly for various scenarios. It’s a powerful and professional video switcher for your choices.

KEY FEATURES

TECHNICAL SPECIFICATIONS

CONNECTION
Video In	HDMI type-A ×2, SDI×2
Video Out	HDMI type-A PGM ×2 HDMI type-A Multiview ×1 USB2.0 type C ×1 (Streaming on PC) Assignable SDI 1~2, HDMI3~4,PGM, Clean PGM, PVW, Color bar, Multiview
Audio In	MIC/ Line level (3.5mm stereo audio) ×2
PC Control Port	LAN×1(For PC remote control)
Media Library	USB type-A ×1(USB disk port for image import and firmware upgrade)
Tally Port	DB-15 ×1
Power In	DC 12V ×1
FUNCTIONS
Transitions	T-Bar/AUTO/ CUT
Effects	Wipe (11×2 patterns)/ Mix/ DIP/ Still(freeze)/ MUTE/ FTB
Layouts	2 styles of Multiview layout (6 windows and status)
Keys	Upstream Key: Luma Key ×1/ Chroma Key ×1/ PIP ×2/ POP Downstream Key: DSK ×1/ Logo ×1
Audio Mixer	HDMI ×2, SDI×2 and MIC/ Line level ×2; Audio delay: 0-500ms
Media	Default image: 39 preset patterns Local image: up to 16 imported images Capture image: up to 16 captured images
Generators	Pattern generator ×1 Color generators ×2
STANDARDS
HDMI In Format Support	1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98 1080i 50/ 59.94/ 60 720p 60/ 59.94 /50/ 30/ 25/ 24 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
HDMI PGM Out	1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Multiview Out	1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Color Space	RGB/ YUV
SDI In Format Support	1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC
SDI Color Space	YUV
USB Capture Out	MJPG, Up to 1080p 60
Media Format	USB disk format support: FAT32, Ext3, Ext4, up to 256GB Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga Logo size support: 10×10 pixel to 600×600 pixel
OTHERS
Power	Wide voltage: 7~24V; Operating power:12W (12V 1.8A)
Dimension (LWD)	261.4×193.9×58mm
Weight	1673.5g
Temperature	Working: -20℃~60℃, Storage: -30℃~70℃
Accessories	Power supply (12V 2A) ×1; USB cable (type A-C) ×1; Tally connector (DB-15) ×1

INCLUDED BY DEFAULT

• PVS0403U
• Power supply (12V 2A)
• USB cable (type A-C)
• Tally connector (DB-15)
