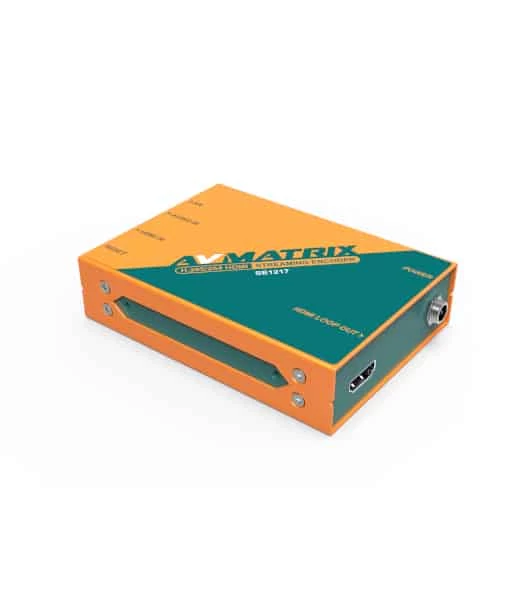

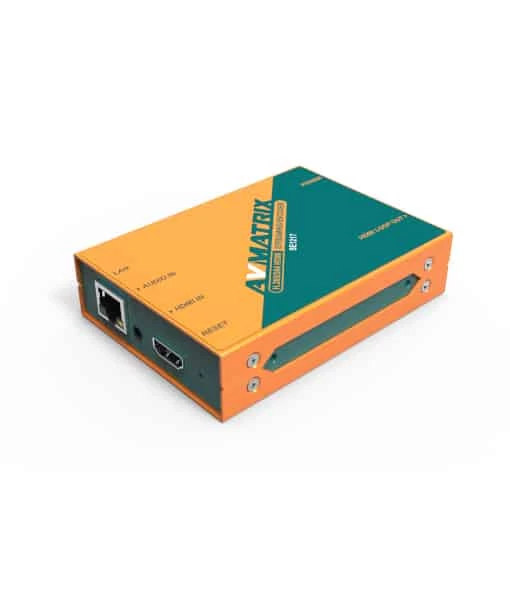

AVMATRIX SE1217 H.265/ H.264 HDMI Streaming Encoder

AVMATRIX SE1217 H.265/ H.264 HDMI Streaming Encoder

The AVMATRIX SE1217 is a HD audio and video encoder which can encode and compress HDMI video and audio source into IP stream, and then transmit it to streaming media server via network IP address to live broadcast on platforms like Facebook, YouTube, Ustream, Twitch, Wowza etc.

KEY FEATURES AVMATRIX HDMI Streaming Encoder

• 1×HDMI input, 1×HDMI loop out, 1×Analog audio input
• Supports H.265/ H.264 stream encode protocol, up to 1080p60hz
• Dual-stream (main stream and sub stream)
• RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast and multicast
• Video and audio streaming or single audio streaming
• Image and text overlay
• Mirror image & upside-down image
• Live stream with no need for connecting a computer

SPECIFICATIONS AVMATRIX HDMI Streaming Encoder

Model	SE1217
CONNECTIONS

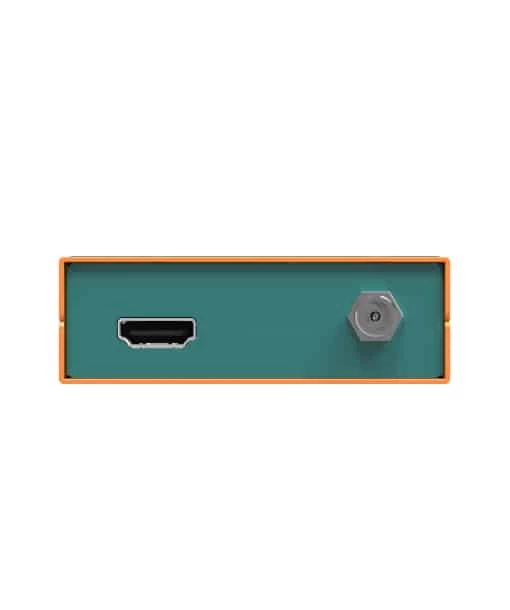

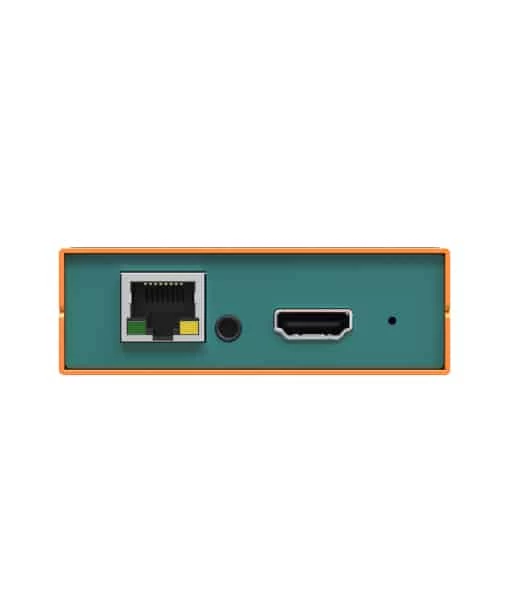

Video	Input: HDMI Type A ×1; Loop Out: HDMI Type A ×1
Analog Audio	3.5mm line in ×1
Network	RJ-45×1(100/1000Mbps self-adaptive Ethernet)
STANDARDS
HDMI In Format Support	1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
Video Coding	H.265/ H.264
Video Bitrate	16Kbps ~ 12MKbps
Audio Coding	ACC/ MP3/ MP2/ G711
Audio Bitrate	24Kbps ~ 320Kbps
Encoding Resolution	1920×1080, 1680×1056, 1280×720, 1024×576, 960×540, 850×480, 720×576, 720×540, 720×480, 720×404, 720×400, 704×576, 640×480, 640×360
Encoding Frame Rate	5-60fps
SYSTEMS
Network Protocols	HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT
Configuration Management	Web configuration, Remote upgrade
OTHERS
Consumption	5W
Temperature	Working temp: -10℃~60℃, Storage temp: -20℃~70℃
Dimension (LWD)	104×75.5×24.5mm
Weight	Net weight: 310g, Gross weight: 690g

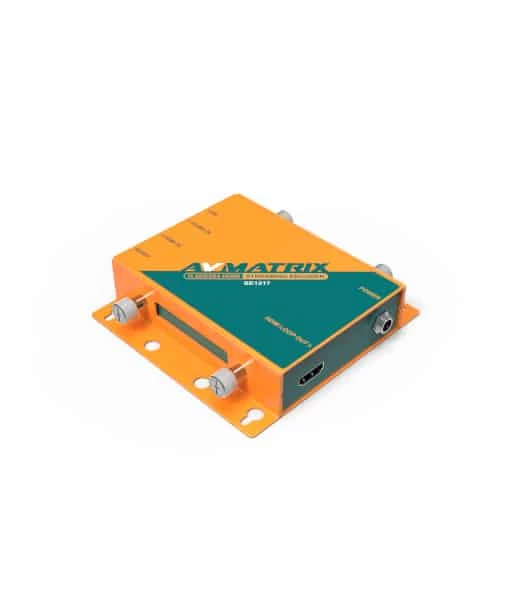

Accessories	12V 2A power supply; Mounting bracket for optional

INCLUDED BY DEFAULT

• AVMATRIX SE1217
• 1x Power supply (12V 2A)
