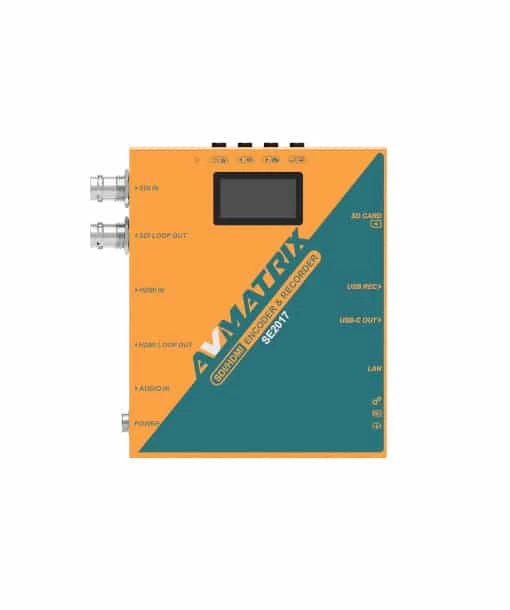

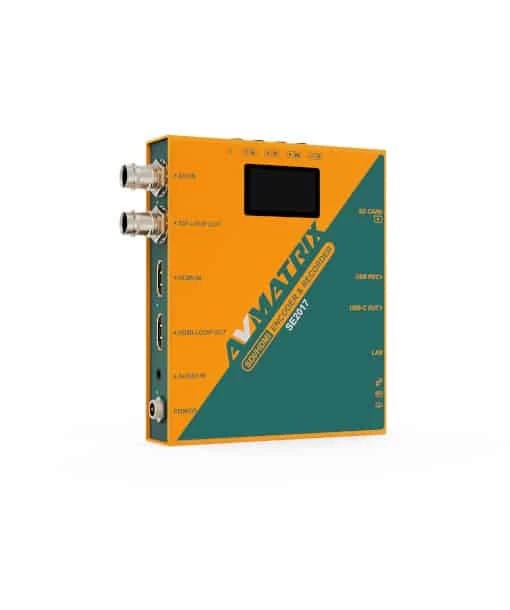

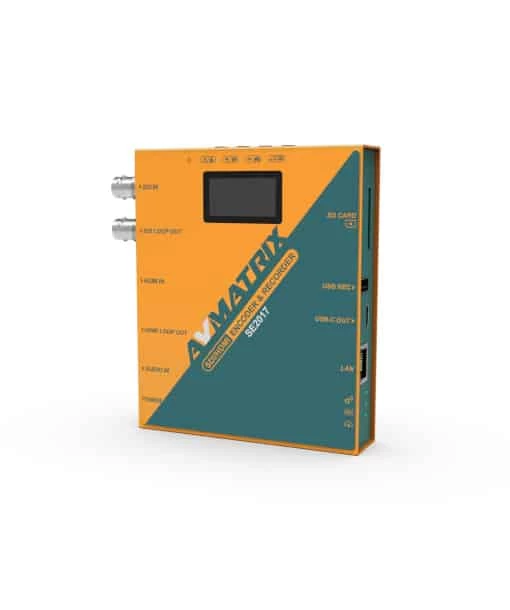

AVMATRIX SE2017 SDI/HDMI ENCODER & RECORDER

AVMATRIX SE2017 SDI/HDMI ENCODER & RECORDER

The AVMATRIX SE2017 is a high-definition audio and video encoder that can compress and encode SDI and HDMI video and audio sources into IP streams. These streams can then be transmitted to a streaming media server via a network IP address for live broadcasting on platforms such as Facebook, YouTube, Ustream, Twitch, and Wowza. It also supports USB and SD card recording feature, and it provides SDI and HDMI video source loop-out for easy monitoring on another monitor.

KEY FEATURES AVMATRIX SE2017 SDI/HDMI ENCODER & RECORDER

• Record, stream and capture multi-function three-in-one
• HDMI and SDI inputs and loopout
• Line audio input embedded
• Encoding bit rate up to 32Mbps
• USB/SD card recording, MP4 and TS file format, up to 1080P60
• Multiple streaming protocols: RTSP, RTMP(S), SRT(LAN), HTTP-FLV, Unicast, Multicast
• USB-C capture, supports up to 1080P60
• Supports PoE and DC power

SPECIFICATIONS SE2017 SDI/HDMI ENCODER & RECORDER

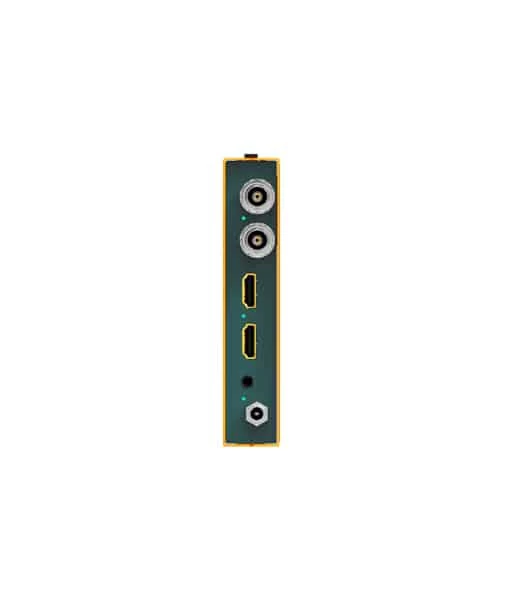

CONNECTIONS
Video Input	HDMI Type A ×1，SDI ×1
Video Loop Out	HDMI Type A ×1，SDI ×1
Analog Audio In	3.5mm (line in)×1
Network	RJ-45×1 (100/1000Mbps self-adaptive Ethernet)
RECORD
REC SD Card Format	FAT32/ exFAT/ NTFS
REC U Disk Format	FAT32/ exFAT/ NTFS
REC File Segment	1/5/10/20/30/60/90/120mins
Recording Storage	SD Card/USB Disk
STANDARDS
HDMI In Format Support	1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60
SDI In Format Support	1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 525i59.94, 625i50
USB capture out	Up to 1080p 60Hz
Video Bitrate	Up to 32Mbps
Audio Coding	ACC
Audio Encoding Bitrate	64/128/256/320kbps
Encoding Resolution	Main Stream：1920×1080, 1280×720, 720×480 Sub Stream：1280×720, 720×480
Encoding Frame Rate	24/25/30/50/60fps
SYSTEMS
Network Protocols	RTSP, RTMP(S), SRT(LAN), HTTP-FLV, Unicast, Multicast
Configuration Management	Web configuration, Remote upgrade
OTHERS
Power	DC 12V 0.38A, 4.5W
PoE	Support PoE(IEEE802.3 af), PoE+(IEEE802.3 at), PoE++(IEEE802.3 bt)
Temperature	Working : -20℃~60℃, Storage : -30℃~70℃
Dimension (LWD)	104×125.5×24.5mm
Weight	Net weight: 550g，Gross weight：905g
Accessories	12V 2A power supply



INCLUDED BY DEFAULT

• AVMATRIX SE2017
• 1x Power supply (12V 2A)
