AVMATRIX Shark H4 PLUS 4-CH HDMI VIDEO SWITCHER

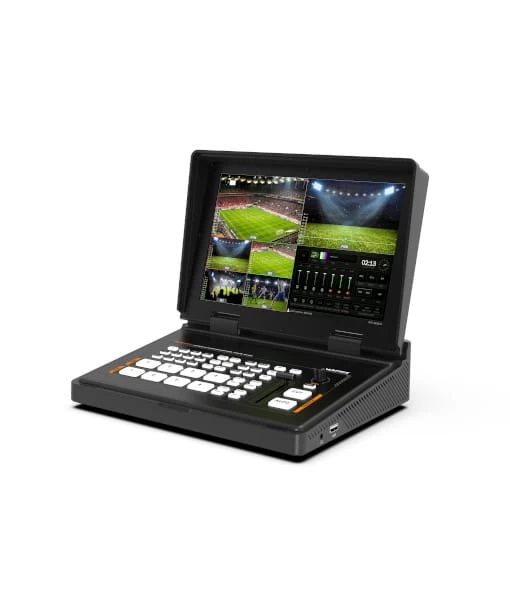

The AVMATRIX SHARK H4 PLUS is a portable design 4-channel HDMI multi-format video switcher integrated with a full HD 10.1inch FHD LCD panel. It supports various functions including streaming, recording, video switching, audio mixing, PGM/ multiview/ Aux out, different transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library etc. Inputs support multi-format while output can be scaled, compatible with a variety of equipment. Enjoy flexible live streaming and recording options with this unit. Stream directly over the Ethernet or USB, and record to USB disk or SD card, all at up to 1080P resolution and 32Mbps bitrate. Users can also customize different settings and import or export the configuration quickly for various scenarios. It’s a powerful and professional video switcher for your choice

KEY FEATURES

TECHNICAL SPECIFICATIONS

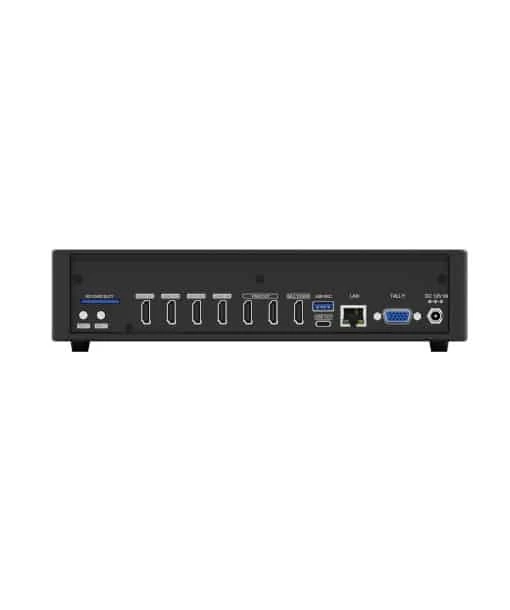

CONNECTION
Video In	HDMI type-A ×4
Video Out	HDMI PGM × 2 HDMI Multiview × 1 USB Capture: USB type-C × 1 Streaming: LAN× 1
Audio In	MIC/ Line level (3.5mm stereo audio) ×2
PC Control Port	LAN×1
Media Library	USB type-A ×1(USB disk port for image import and firmware upgrade)
Tally Port	DB-15 ×1
Power In	DC 12V ×1
STREAM&REC
Bitrate	2mbps/4mbps/8mbps/12mbps/16mbps/24mbps/32mbps
Rate control	CBR/VBR
Control protocols	RTMP, RTMPS,SRT
REC SD card format	FAT32/exFAT/NTFS
REC U disk format	FAT32/exFAT/NTFS
REC File segment	1/5/10/20/30/60/90/120mins
FUNCTIONS
Transitions	T-Bar/AUTO/ CUT
Effects	Wipe (11×3 patterns)/ Mix/ DIP/ Pattern/ Still(freeze)/ MUTE/ FTB
Layouts	2 styles of Multiview layout (6 windows and status)
Keys	Upstream Key: Luma Key ×1/ Chroma Key ×1/ PIP ×2/ POP Downstream Key: DSK ×1/ Logo ×1
Audio Mixer	HDMI ×4 and MIC/ Line level ×2; Audio delay: 0-500ms
Media	Default image: 39 preset patterns Local image: up to 16 imported images Capture image: up to 16 captured images
Generators	Pattern generator ×1 Color generators ×2
Display	10.1 Inch IPS FHD display
STANDARDS
HDMI In Format Support	1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98 1080i 50/ 59.94/ 60 720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
HDMI PGM Out	1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Multiview Out	1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
HDMI Color Space	RGB/ YUV
USB Capture Out	Up to 1080p 60
Media Format	USB disk format support: FAT32, Ext3, Ext4, up to 256GB Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga Logo size support: 10×10 pixel to 600×600 pixel
OTHERS
Power	Wide voltage: 7~24V; Operating power:20.4W(12V 1.7A)
Dimension (LWD)	261.4 × 193.9 × 58mm
Weight	Net: 1734.5g, Gross: 2240g
Temperature	Working: -20℃~50℃, Storage: -30℃~70℃
Accessories	Power supply (12V 3A) ×1; USB cable (type A-C) ×1; Tally connector (DB-15) ×1

INCLUDED BY DEFAULT

• SHARK H4 Plus
• Power supply (12V 2A)
• USB cable (type A-C)
• Tally connector (DB-15)
