AVMATRIX TS3019-4 Wireless Multi-Camera Tally System

AVMATRIX TS3019-4 Wireless Multi-Camera Tally System

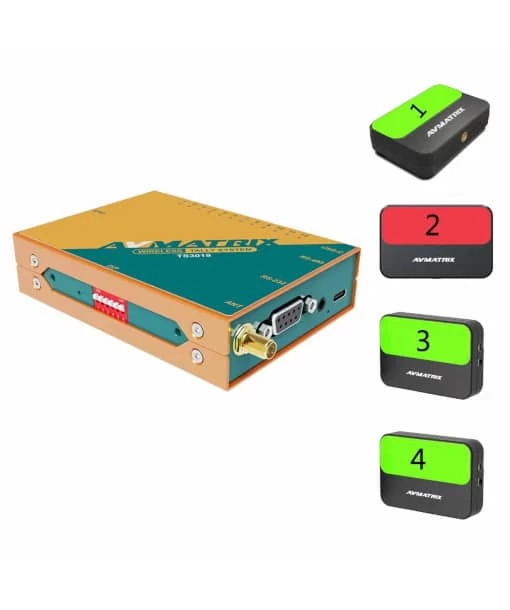

The AVMatrix TS3019-4 tally system with 4 tally lamps can wirelessly communicate from up to 656.2′ away. It comes with multiple interface connections like, GPIO, USB Type-C, RS-232 and RS-485. This makes the taly system compatible with various switchers and vMix software for integration with your preexisting setup. An included antenna can attach to the box to improve its signal as well.

KEY FEATURES AVMATRIX TS3019-4

SPECIFICATIONS AVMATRIX TS3019-4

Tally Box Parameters	Connections	1x GPIO, 1x RS-232 terminal, RS-485 terminal, 1x USB- Type C
	Number of lamps	4x included ( up to 16 supported)
	Wireless Distance	Transmission up to 200m (line-of-sight)
	Wireless Frequency	433 MHz
	Wireless Connectivity	RS-485 serial connection
	Application Support	vMix,  AVMATRIX, Roland, SONY, NewTek, Panasonic, Datavideo, Tally converter box like BMD GPI and Tally Interface
	Power	Working Voltage: 5V, Power Consumption: <_0.2W; Battery Charging current: 5V 1A
Tally Lamp Parameters	Connections	1x USB Type-C, 1x RS-485, 1x Tally Out
	Power Supply	5V USB power supply
	Brightness	Support 4 level brightness
	Battery Operating Time	Up to 9 hours
	Power	Working Voltage: 5V; Power Consumption: <_2.5W
	Mouting Hole	¼ inch hotshoe hole
Others	Dimensions (LWD)	Tally box: 104*75.5*24.5mm, Tally Lamp: 98.5*65*26.5 mm
	Weight	Tallybox: 327g; Tally lamp: 90g
	Temperature	Working Temperature: -20C ~60C Storage Temperature: -30C~70C



INCLUDED BY DEFAULT

• 1x Tally Box
• 4x Tally Lamps
• 1x Case
• 1x Power supply
• 5x USB 2.0 Type-C Cables
• 1x Antenna
• 1x GPIO Connector
