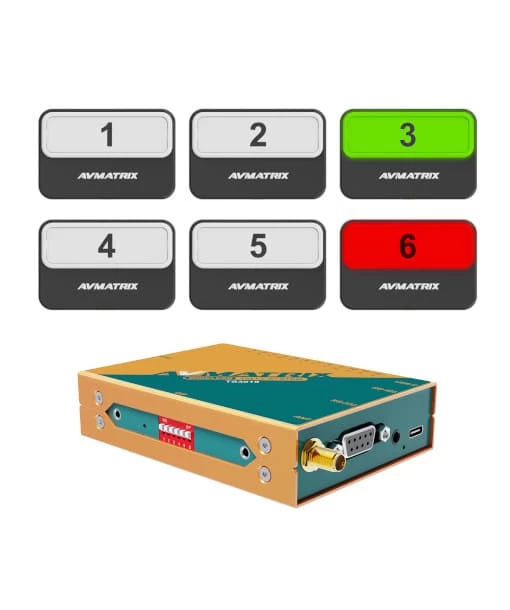

AVMATRIX TS3019-6 Wireless Multi-Camera Tally System

Oorspronkelijke prijs was: 315,00 €.Huidige prijs is: 96,99 €.

The AVMatrix TS3019-6 tally system comes with 6 tally lamps and can wirelessly communicate via GPIO, USB Type-C, RS-232 and RS-485.

6x Tally Lamps included
Support 433Mhz wireless or wired tally connection
Up to 200m wireless connection distance (line-of-sight)
GPIO/USB/RS-485/RS-232

Artikelnummer: AV-TS30196 Categorieën: Studio & EFP Equipment, Tally Lights

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

AVMATRIX TS3019-6 Wireless Multi-Camera Tally System

The AVMatrix TS3019-6 tally system with 6 tally lamps can wirelessly communicate from up to 656.2′ away. It comes with multiple interface connections like, GPIO, USB Type-C, RS-232 and RS-485. This makes the taly system compatible with various switchers and vMix software for integration with your preexisting setup. An included antenna can attach to the box to improve its signal as well.

KEY FEATURES AVMATRIX TS3019-6

6x Tally Lamps included
Support 433Mhz wireless or wired tally connection
Up to 200m wireless connection distance (line-of-sight)
The tally box with multiple interfaces including GPIO/USB/RS-485/RS-232
GPIO compatible with AVMATRIX and other video switchers
Compatible with VMix via USB type-c
Wireless PTZ camera control via RS-232/RS-485 pass through
Up to 16 tally lamps can be supported
Both front and rear indicators on the lamps with 4-level adjustable brightness
Visible signal strength and battery status on the tally lamp
Tally lamp can be powered by USB type-c or 18650 li-ion battery
1/4 inch hot shoe for tally lamp installation

SPECIFICATIONS AVMATRIX TS3019-6

Tally Box Parameters	Connections	1x GPIO, 1x RS-232 terminal, RS-485 terminal, 1x USB- Type C
	Number of lamps	6x included ( up to 16 supported)
	Wireless Distance	Transmission up to 200m (line-of-sight)
	Wireless Frequency	433 MHz
	Wireless Connectivity	RS-485 serial connection
	Application Support	vMix, AVMATRIX, Roland, SONY, NewTek, Panasonic, Datavideo, Tally converter box like BMD GPI and Tally Interface
	Power	Working Voltage: 5V, Power Consumption: <_0.2W; Battery Charging current: 5V 1A
Tally Lamp Parameters	Connections	1x USB Type-C, 1x RS-485, 1x Tally Out
	Power Supply	5V USB power supply
	Brightness	Support 4 level brightness
	Battery Operating Time	Up to 9 hours
	Power	Working Voltage: 5V; Power Consumption: <_2.5W
	Mouting Hole	¼ inch hotshoe hole
Others	Dimensions (LWD)	Tally box: 10475.524.5mm, Tally Lamp: 98.56526.5 mm
	Weight	Tallybox: 327g; Tally lamp: 90g
	Temperature	Working Temperature: -20C ~60C Storage Temperature: -30C~70C
