AVMATRIX UC1218-4K 4K HDMI TO USB3.1 Gen 1

AVMATRIX UC1218-4K 4K HDMI TO USB3.1 Gen 1

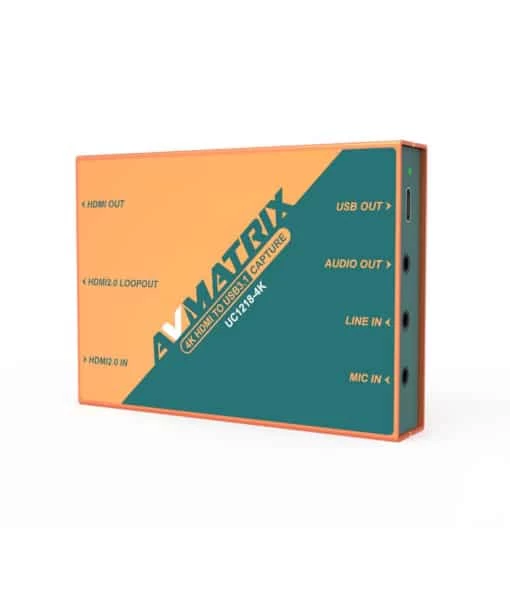

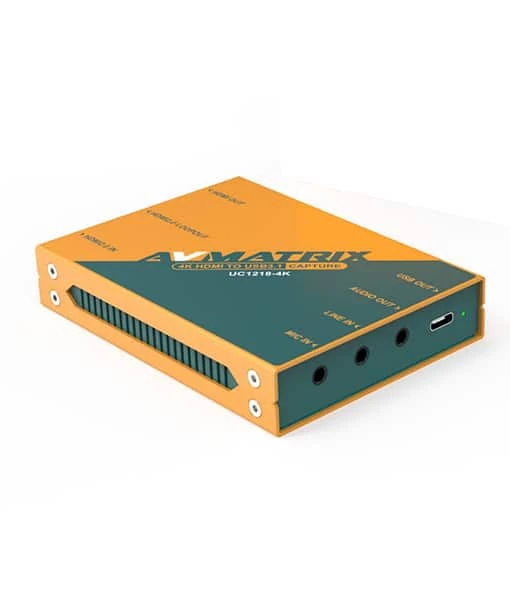

The AVMATRIX UC1218-4K is a broadcast-grade real plug and play device to capture uncompressed HDMI signal over USB3.1 Gen1 for graphics capture, live streaming, recording on your laptop, PC. The input HDMI resolution supports up to 4K 60HZ. The device has a 4K HDMI loop-out for monitoring every detail of the original 4K source on an additional monitor. Besides, the device has an HDMI output to monitor the captured video from an HD HDMI monitor.

The device is real plug and play, no need driver, and it is compatible with various systems including Windows, Linux etc. and UVC and UAC compliant. UC1218-4K is your ideal choice for applications like live broadcast, streaming, and professional AV workflows including podcasting, web conferencing, video production and screen capture.

KEY FEATURES AVMATRIX UC1218-4K 4K HDMI TO USB3.1 Gen 1

• Record, stream and capture multi-function three-in-one
• HDMI and SDI inputs and loopout
• Line audio input embedded
• Encoding bit rate up to 32Mbps
• USB/SD card recording, MP4 and TS file format, up to 1080P60
• Multiple streaming protocols: RTSP, RTMP(S), SRT(LAN), HTTP-FLV, Unicast, Multicast
• USB-C capture, supports up to 1080P60
• Supports PoE and DC power

SPECIFICATIONS UC1218-4K 4K HDMI TO USB3.1 Gen 1

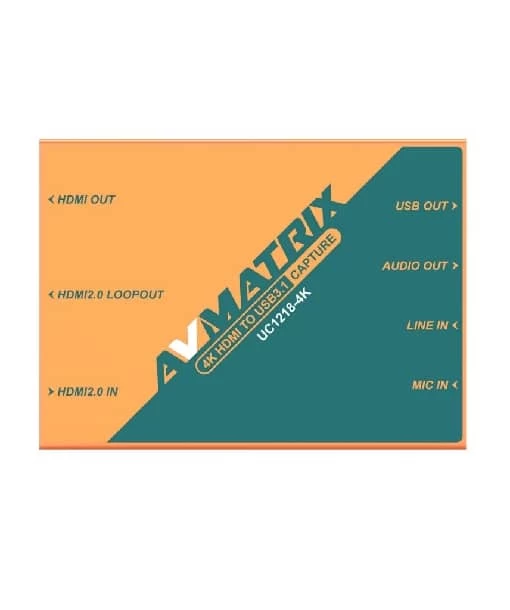

Connections

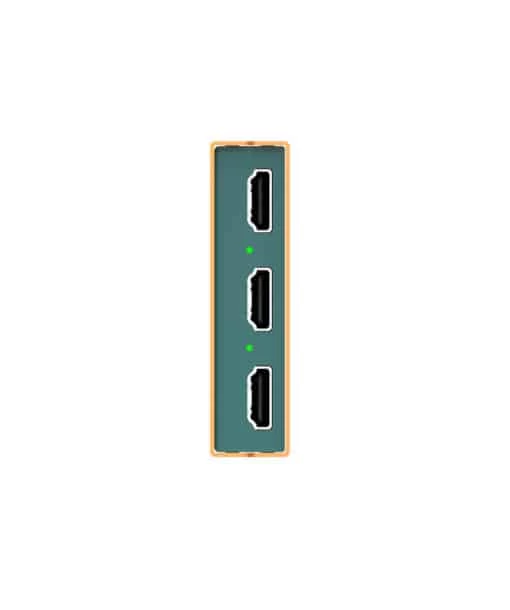

Video Interface	1×HDMI 2.0 in 1×HDMI out, 1×HDMI 2.0 loop-out 1×USB3.1 Type C(USB 3.1 Gen1, up to 200MB/s)

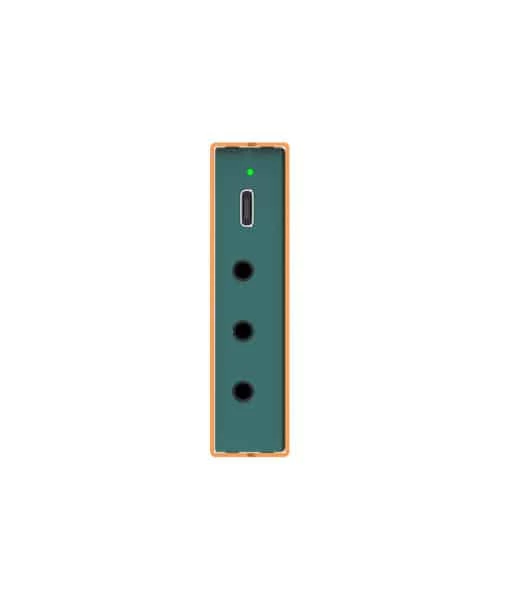

Audio interface	1×3.5mm stereo audio(Line in) 1×3.5mm stereo audio(Mic in) 1×3.5mm stereo audio out
Format
HDMI 2.0 Input & Loopout Format	Up to 4K60hz, 1440p144hz, 1080p240hz
USB Capture Format	1920×1080, 1680×1050, 1440×900, 1280×1024, 1280×960, 1280×800, 1280×720, 1024×768, 800×600, 720×576, 720×480, 640×480
Audio & Video Capture	UVC (USB video class) standard UAC (USB audio class) standard
Audio Codec	2-channel, 16 bit PCM, 48kHz, 1536 kbps
Video Color Space	YUY2
Hardware deinterlacing	Support 1080i hardware deinterlacing, clearer and more stable picture
OS and Software Compatibility
Supports OS	Windows 7/8/10/11, Linux (Kernel version 2.6.38 and above), macOS (10.8 and above)
Software Compatibility	OBS studio, Skype, ZOOM, Teams, Google Meet, Youtube Live, QuikcTime Player, Face time, etc.
Compatible SDK	DirectShow(Windows), DirectSound(Windows)
General
Dimensions	104×75.5×19mm
Weight	Net weight: 284g Gross Weight: 382g
Power Consumption	4.5W ±10%
Operating Temperature	-20~60°C
Storage Temperature	-30~70°C
Relative Humidity	20~90% RH (no condensation)
Accessory
Accessory	1× USB3.0 A-C cable



INCLUDED BY DEFAULT

• AVMATRIX UC1218-4K
• 1× USB3.0 A-C cable
