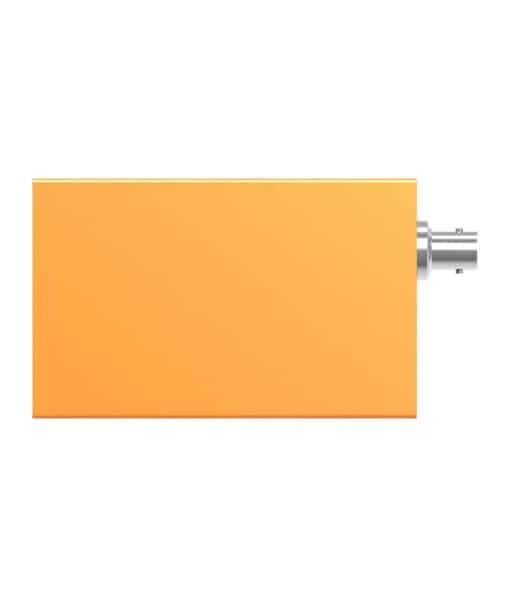

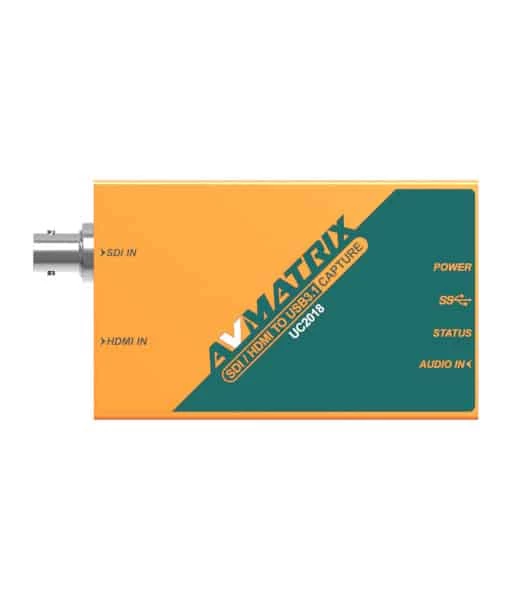

AVMATRIX UC2018 SDI/HDMI To USB-C Video Capture

AVMATRIX UC2018 SDI/HDMI TO USB-C VIDEO CAPTURE

Record or stream a HDMI or SDI signal via USB-C with the AVMATRIX UC2018 SDI/HDMI USB-C Video Capture device. With its 3G-SDI and HDMI v1.4a inputs, this capture device will accept resolutions up to 1920 x 1080p60. It automatically detects the incoming video format and transmits it via USB 3.0 at up to 350 MB/s. It supports UVC video capture as well as YUV video output.

As this is a USB bus-powered device, you can connect multiple units to the same computer. The UC1218 is compatible with a variety of available third-party software apps for Windows, Linux, and macOS.

KEY FEATURES

• Supports up to 1920 x 1080p60 Resolution
• Hardware Scaling and Deinterlacing
• Performs Frame Rate Conversion
• UVC Compatible
• Supports YUV 4:2:2 Video Output
• For Windows, Linus, and macOS
• Works with Third-Party Capture Software
• USB Powered

SPECIFICATIONS AVMATRIX UC2018

Model	UC2018
Input

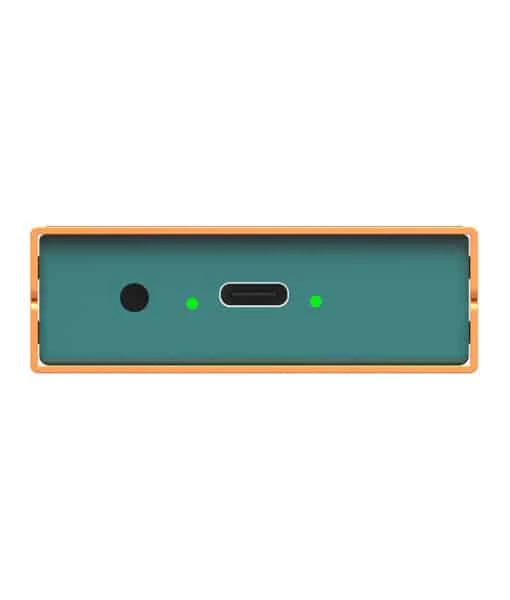

Host Connection	USB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)

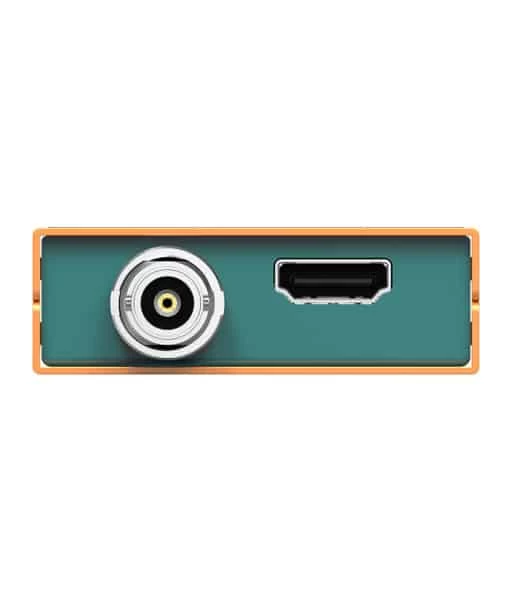

Video Input Connectors	1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 1.4a)
Input Video Format	SDI 1080p: 25/29.97/30/50/59.94/60 fps HDMI 1080p: 24/25/30/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576p PAL 480p NTSC
Embedded Audio Input	HDMI/SDI
Output
Output Video Format	USB Type-A 1080p: 25/29.97/30/50/59.94/60 fps WUXGA+ (1680 x 1050): 25/29.97/30/50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps XGA (1024 x 768): 25/29.97/30/50/59.94/60 fps XGA (1024 x 768): 25/29.97/30/50/59.94/60 fps 960 x 540: 25/29.97/30/50/59.94/60 fps 576p: 25/29.97/30/50/59.94/60 fps 480p: 25/29.97/30/50/59.94/60 fps 640 x 360: 25/29.97/30/50/59.94/60 fps
Embedded Audio Output	USB Type-A
Hardware
OS Compatibility	Windows 7 Windows 8 Windows 10 Linux 2.6.38 or Later macOS 10.8 or Later
Power
Power Consumption	Device: 5 VDC (3 W)
Environmental
Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	32 to 140°F / 0 to 60°C
Operating Humidity	20 to 90%
General
Dimensions	3.9 x 2.8 x 0.9″ / 99.6 x 70 x 24 mm
Weight	4 oz / 114 g
Warranty Length	Limited 1-Year Warranty

INCLUDED BY DEFAULT

• AVMATRIX UC2018
• USB-C to type USB-A cable
