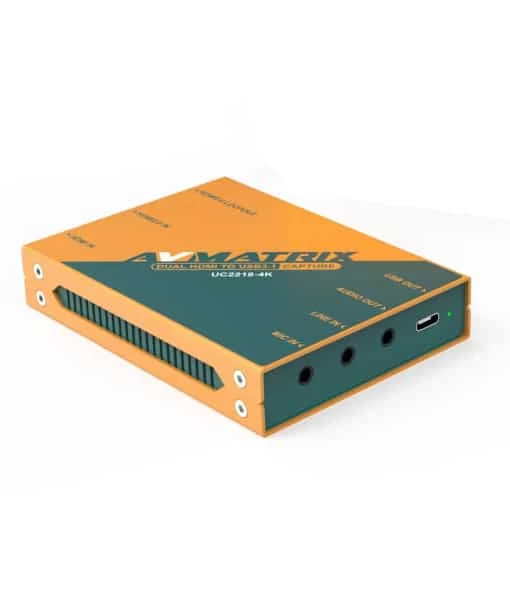

AVMATRIX UC2218-4K DUAL HDMI TO USB3.1 Gen 1

AVMATRIX UC2218-4K DUAL HDMI TO USB3.1 Gen 1

The AVmatrix UC2218-4K is a broadcast-grade real plug and play device to capture dual HDMI signal over USB3.1 Gen1 for graphics capture, live streaming, recording on your laptop, PC. It suppports 4K60Hz and 1080P60hz dual HDMI signal. It can capture two HDMI at same time through software like OBS in a split screen to achieve PiP, PoP, or software like Vmix to achieve switching between the two HDMI sources for live stream. It is compatible with Windows, Linux and macOS, support various applications such as OBS, Vmix, PotPlayer, ZOOM, Teams, Twitch, etc. UC2218-4K is your ideal choice for applications like game live, broadcast, v-log, remote education, conference, etc.

KEY FEATURES AVMATRIX UC2218-4K DUAL HDMI TO USB3.1 Gen 1

• Inputs: 4K HDMI, HDMI in, Mic/Line in
• Outputs: 4K HDMI loop-out, USB 3.1 Gen 1(USB3.0) out, audio out
• Automatic input signal detection, up to 4K@60Hz
• Capture two HDMI videos and audios simultaneously
• Uncompressed video & audio capture, comply with UVC and UAC
• Plug-and-Play, driver free & power free
• Compatible with Windows, Linux, macOS
• Compatible with OBS, ZOOM, Teams, Twitch, Vmix, etc.

SPECIFICATIONS UC2218-4K DUAL HDMI TO USB3.1 Gen 1

Connections
Video Interface	1×HDMI 2.0 in, 1×HDMI in 1×HDMI 2.0 loopout 1×USB3.0 Type C(USB 3.1 Gen1, up to 200MB/s)
Audio interface	1×3.5mm stereo audio(Line in) 1×3.5mm stereo audio(Mic in) 1×3.5mm stereo audio out
Format
HDMI 2.0 Input & Loopout Format	Up to 4K60hz, 1440p144hz, 1080p240hz
HDMI Input Format	Up to 1080p60
USB Capture Format	1920×1080, 1680×1050, 1440×900, 1280×1024, 1280×960, 1280×800, 1280×720, 1024×768, 800×600, 720×576, 720×480, 640×480 60hz
Audio & Video Capture	UVC (USB video class) standard UAC (USB audio class) standard
Audio Codec	2-channel, 16 bit PCM, 48kHz, 1536 kbps
Video Color Space	YUY2
Hardware deinterlacing	Support 1080i hardware deinterlacing, clearer and more stable picture
OS and Software Compatibility
Supports OS	Windows 7/8/10, Linux (Kernel version 2.6.38 and above), macOS (10.8 and above)
Software Compatibility	OBS studio, Skype, ZOOM, Teams, Google Meet, Youtube Live, QuikcTime Player, Face time, etc.
Compatible SDK	DirectShow(Windows), DirectSound(Windows)
General
Dimensions	104×75.5×19mm
Weight	Net weight: 284g  Gross Weight: 382g
Power Consumption	5.5W ±10%
Operating Temperature	-20~60°C
Storage Temperature	-30~70°C
Relative Humidity	20~90% RH (no condensation)
Accessory
Accessory	1× USB3.0 A-C cable



INCLUDED BY DEFAULT

• AVMATRIX UC2218-4K
• 1× USB3.0 A-C cable
