The AVMATRIX VC12-4K is a 4K HDMI PCIE video capture card, it supports one 4K60 HDMI input and is compatible with vMix, OBS, XSplit etc.
- Max 4K60
- PCIE2.0x4 2.5GB/s transfer bandwidth
- HDMI 2.0
- Compatible with vMix/OBS/XSplit/Potplayer
- Koop met een gerust hart
- Koop online de beste kwaliteit
- Winkel met gemak
- Risicovrij winkelen met retouren

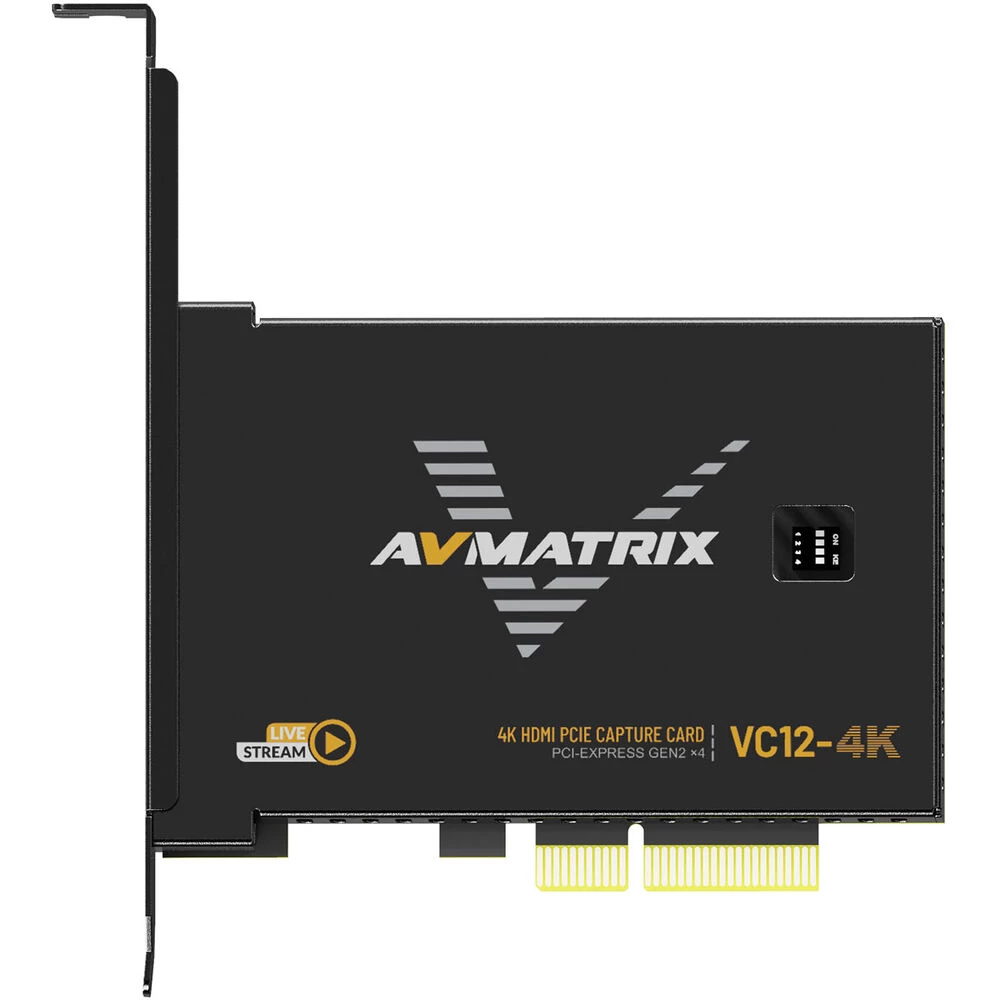

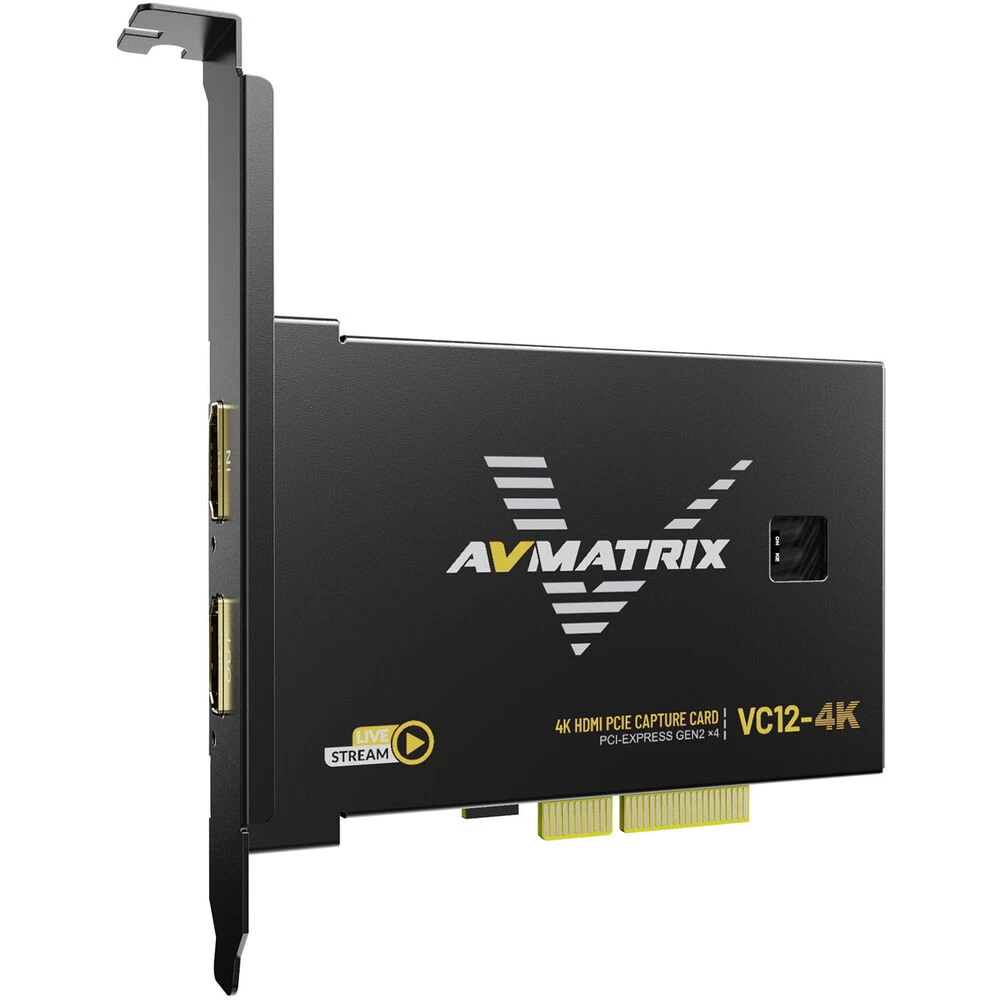

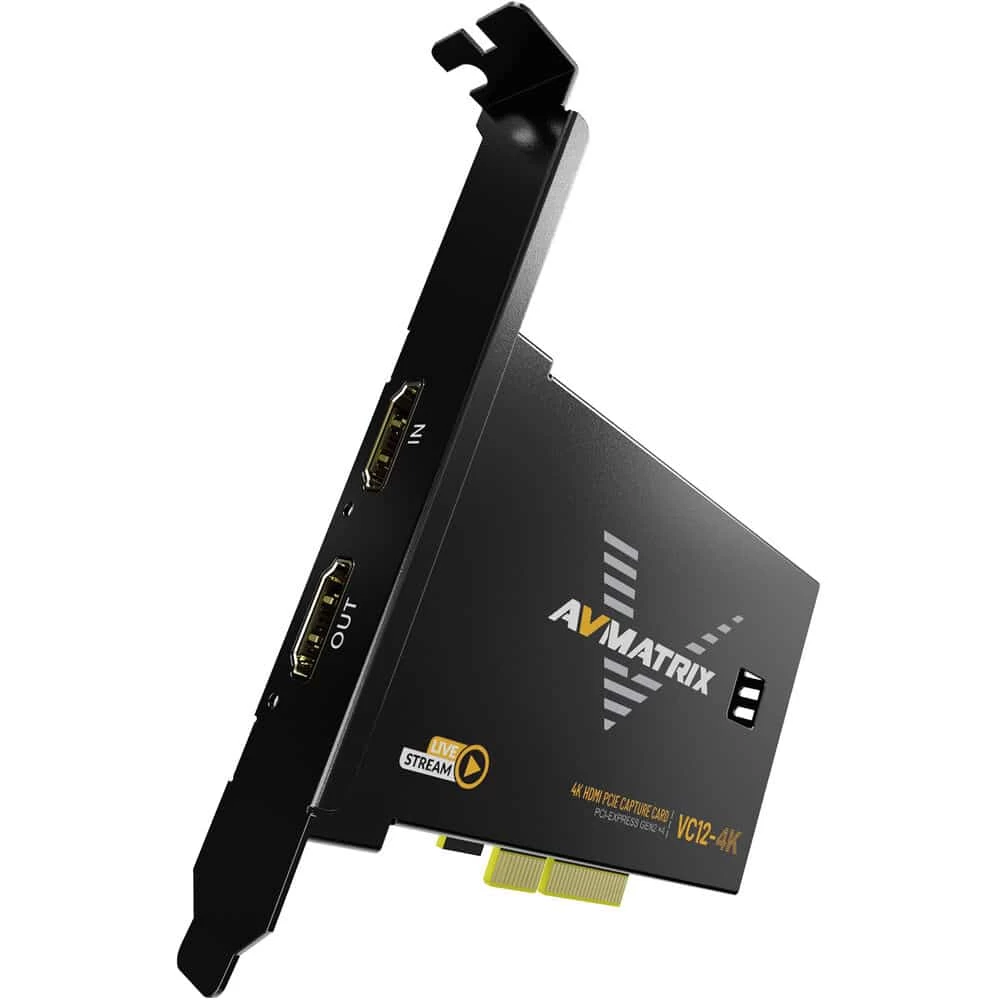

AVMATRIX VC12-4K 4K HDMI PCIE Capture Card
The AVMATRIX VC12-4K is a 4K HDMI PCIE video capture card, it supports 4K HDMI inputs and capture,and compatible with console or PC games and digital cameras. HD video capture up to 4K60 with bit rates up to 800Mbps, transfer bandwidth up to 2.5GB/S, VC12-4K can meet the needs of high-bandwidth, high-performance image acquisition and processing applications,ideal for use in live streaming platforms.
KEY FEATURES AVMATRIX V12-4K
- 1-channel HDMI 2.0 input loop-out
- Input and capture support up to 4K60 with bit rates up to 800Mbps
- Support YUY2 uncompressed video
- PCIE GEN2×4, 2.5GB/S transfer bandwidth
- Compatible with Windows 7 and above, Linux 18.04 and above
- Compatible with OBS/potplayer/XSplit/vMix and other live recording software
- Stable operation, 24 hours non-stop work
- Support one machine with multiple cards working simultaneously
TECHNICAL SPECIFICATIONS AVMATRIX VC12-4K
|
CONNECTIONS |
Host Interface | PCIE2.0×4, 2.5GB/s transfer bandwidth |

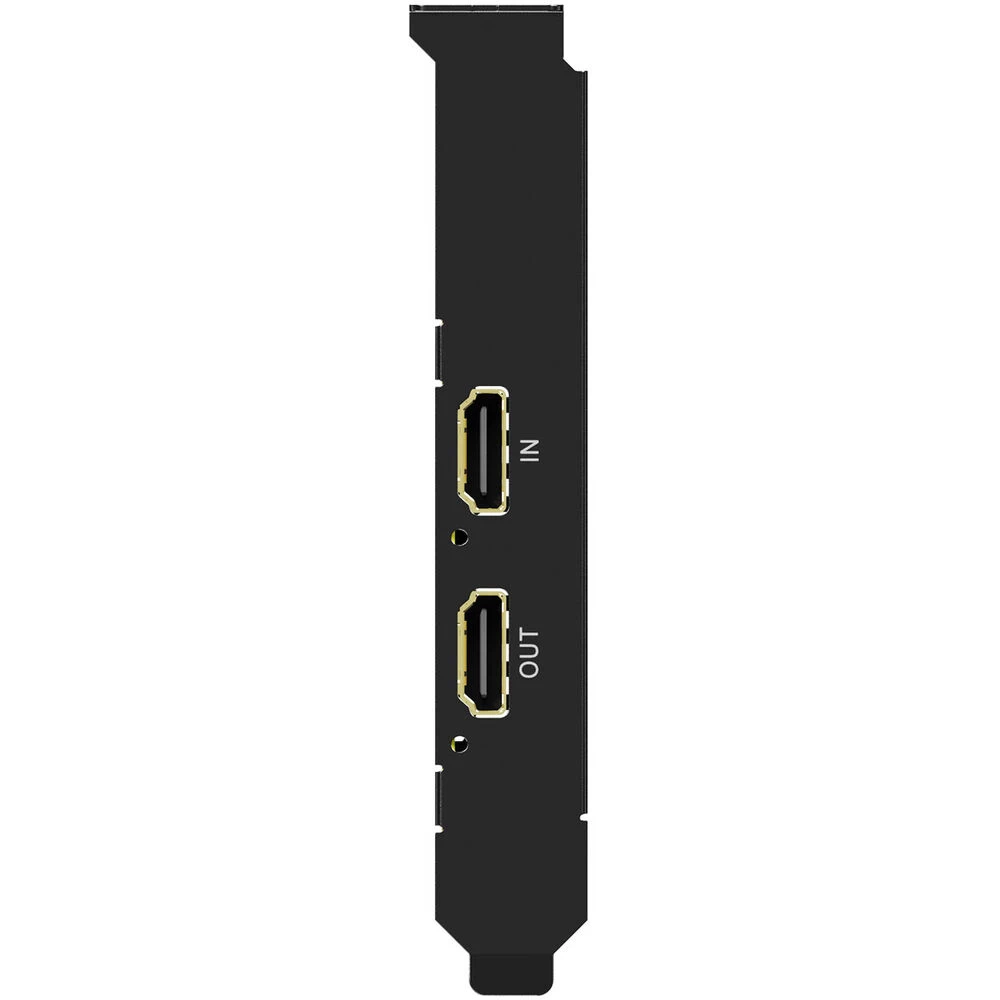

| Video Interfaces | 1×HDMI2.0 input, 1×HDMI2.0 loopout | |
| HDMI Input Format | Up to 4K60hz, 1440p144hz, 1080p240hz | |
| Capture Format | 4096×2160, 3840×2160, 3440×1440 , 2560×2048,
2560×1920, 2560×1440, 2560×1080, 1920×1200, 1920×1080, 1600×1200, 1440×900, 1280×1024, 1280×800, 1280×720, 1024×768, 800×600, 720×576, 720×480 60fps 4096×2160 , 3840×2160, 2560×1440, 1920×1080, 1280×720 50fps 4096×2160, 3840×2160, 2560×1440, 1920×1080, 1280×720, 800×600, 720×576, 720×480 30fps 4096×2160 , 3840×2160, 2560×1440, 1920×1080, 1280×720 25fps 2560×1440, 1920×1080, 1280×720 144fps 2560×1440, 1920×1080, 1280×720 120fps 1920×1080, 1280×720 240fps 1920×1080, 1280×720 59.49fps |
|
| Capture Color Space | YUY2, uncompressed | |
| Audio Capture | 1×HDMI embedded audio capture | |
| Audio Codec | 16 bit PCM, 48kHz, 1536kbps | |
| Other Features | Support 1080i hardware de-interlacing, 3D noise reduction algorithm | |
|
SUPPORTS |
Device Support | Support XBOX, PS4, SWITCH, Video player, TV box and media box, etc. |
| OS Support | Windows 7 and above, Linux 18.04 and above | |
| Software Compatible | OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software | |
| APIs Support | Windows(DirectShow, DirectSound/WASAPI)
Linux(V4L2, ALSA) |
|
|
OTHERS |
Power consumption | ≤2.0W |
| Temperature | Operating temperature: 0℃~60℃
Storage Temperature: -20℃~70℃ |
|
| Relative Humidity | 5%~90% non-condensing | |
| Dimension | 120.1×95.7×21.6mm | |
| Weight | Net weight: 100g, Gross Weight: 145g |
INCLUDED BY DEFAULT
- AVMATRIX VC12-4K
| Brand | AVMatrix |
|---|---|
| SKU | AV-VC124K |
| MPN | VC12-4K |
| EAN | 6971118001897 |
