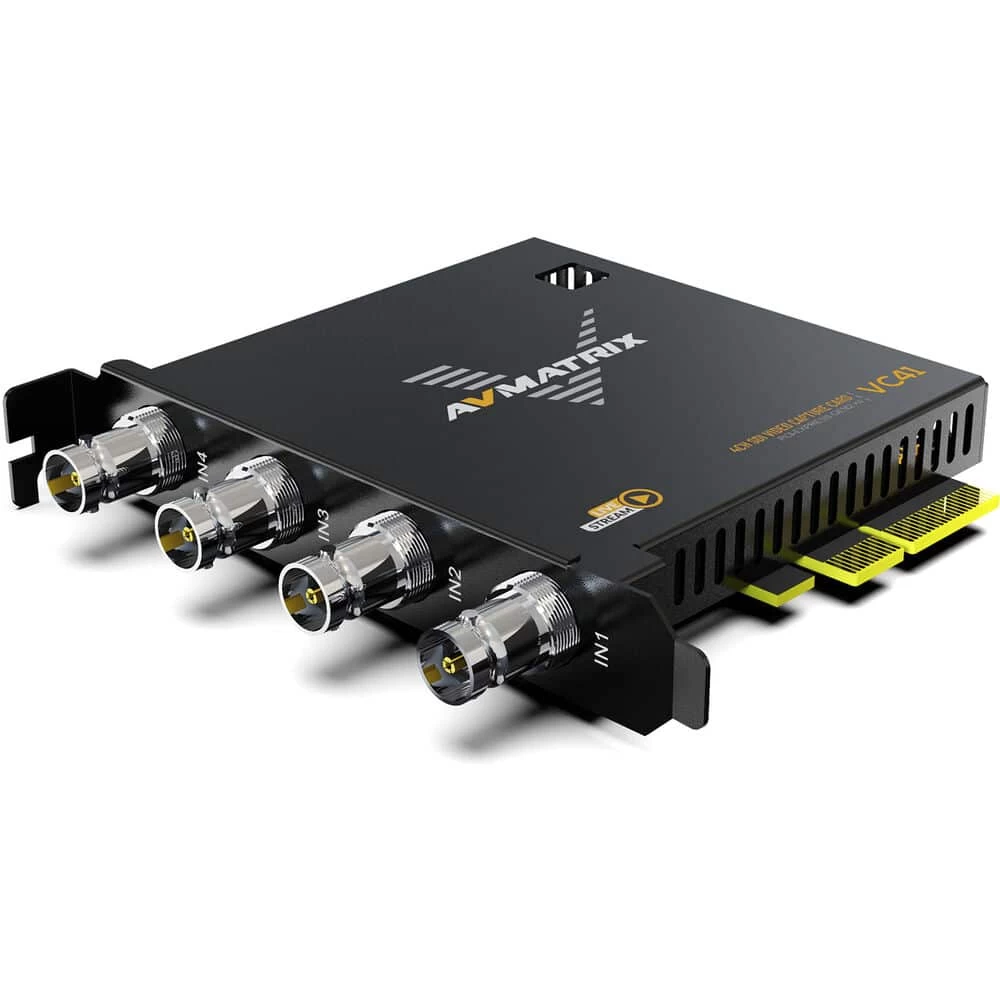

AVMATRIX VC41 4-CH 3G-SDI PCIE Capture Card

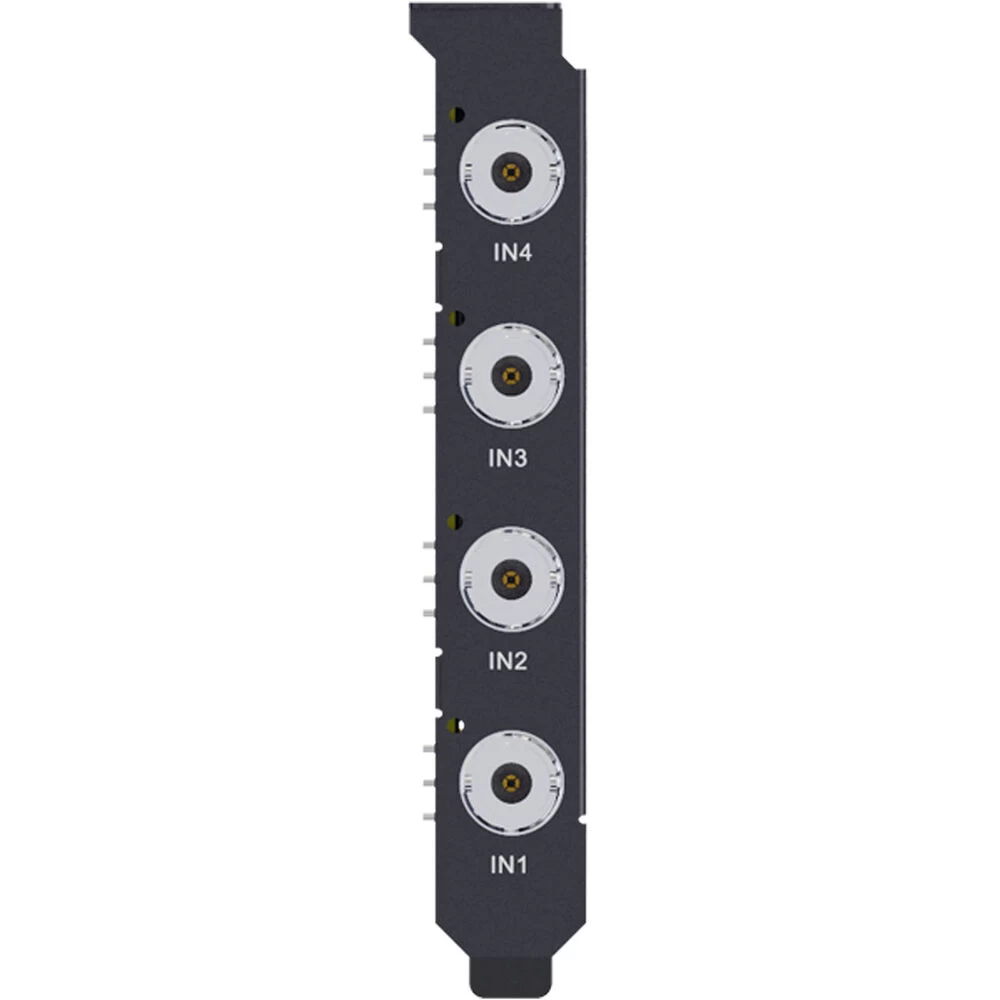

AVMATRIX VC41 4-CH 3G-SDI PCIE Capture Card - Afbeelding 2

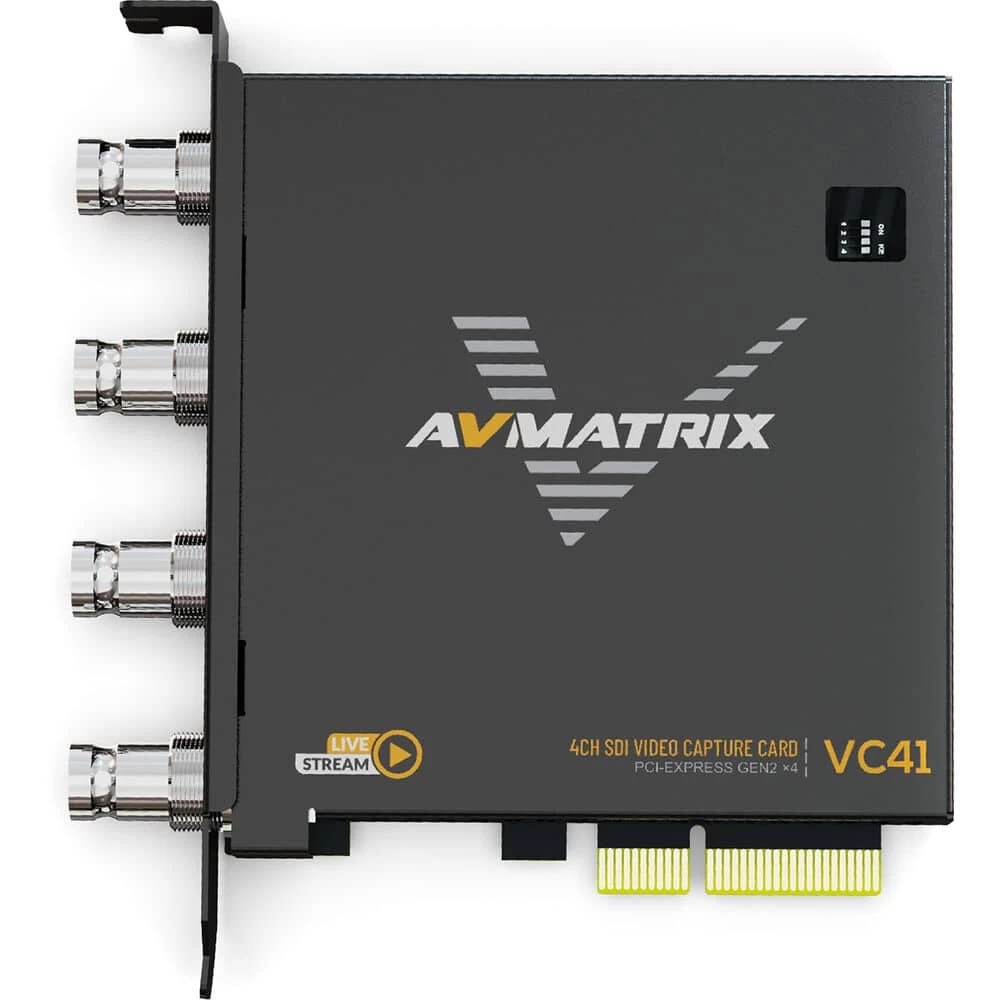

AVMATRIX VC41 4-CH 3G-SDI PCIE Capture Card - Afbeelding 3

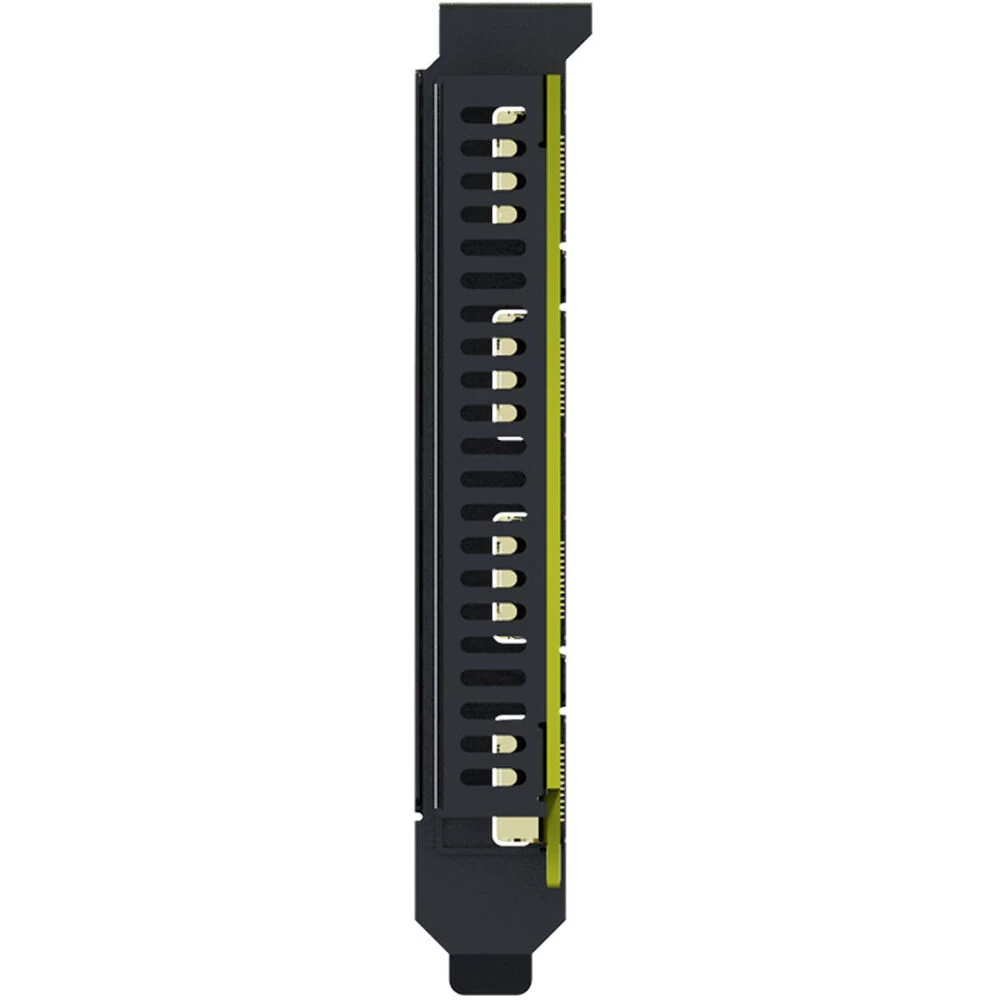

AVMATRIX VC41 4-CH 3G-SDI PCIE Capture Card - Afbeelding 4

Oorspronkelijke prijs was: 349,00 €.Huidige prijs is: 96,99 €.

The AVMATRIX VC41 is a 4-Channel SDI PCIE video capture card, it supports four SDI inputs and capture and is compatible with vMix, OBS, XSplit etc.

Max 1080p60
PCIE2.0x4 2.5GB/s transfer bandwidth
4x 3G-SDI
Compatible with vMix/OBS/potplayer/XSplit

Artikelnummer: AV-VC41 Categorieën: Capture cards, SDI, Video Capture and Playback

Koop met een gerust hart
Koop online de beste kwaliteit
Winkel met gemak
Risicovrij winkelen met retouren

AVMATRIX VC41 4-CH 3G-SDI PCIE Capture Card

The AVMATRIX VC41 is a 4-Channel SDI PCIE video capture card, it supports four SDI inputs and capture,and compatible with console or PC games and digital cameras. HD video capture up to 1080p60 with bit rates up to 200Mbps, transfer bandwidth up to 2.5GB/S, VC41 can meet the needs of high-bandwidth, high-performance image acquisition and processing applications,ideal for use in live streaming platforms.

KEY FEATURES AVMATRIX VC41

4-channel 3G-SDI simultaneous input and capture
Input and capture up to 1080p60, bit rate up to 200Mbps
Support YUY2 uncompressed video
PCIE GEN2×4, 2.5GB/S transfer bandwidth
Support portrait and landscape mode
Compatible with Windows 7 and above, Linux 18.04 and above
Compatible with OBS/potplayer/XSplit/vMix and other live recording software
Stable operation, 24 hours non-stop work
Support one machine with multiple cards working simultaneously

TECHNICAL SPECIFICATIONS AVMATRIX VC41

CONNECTIONS	Host Interface	PCIE2.0×4, 2.5GB/s transfer bandwidth
CONNECTIONS	Video Interfaces	4×SD/HD/3G-SDI inputs
STANDARDS	SDI Input Format	Support up to 1080p60 Support HD/3Ga/3Gb/3Gb-DL/3Gb-DS standard Support YCbCr 4:4:4, YCbCr 4:2:2 color sampling Note: 3Gb-DS can only capture the first stream
	Capture Format	1920×1200, 1920×1080, 1600×1200, 1600×900, 1440×900, 1280×1024, 1280×800, 1280×720, 1080×1920, 1024×768, 800×600, 720×576, 720×480 *60fps* 1920×1080, 1280×720, 1080×1920 *59.94fps* 1920×1080, 1280×720 *50fps* 1920×1080, 1280×720, 1080×1920, 800×600, 720×576, 720×480 *30fps* 1920×1080, 1280×720, 1080×1920 *25fps*
	Capture Color Space	YUY2, uncompressed
	Audio Capture	4×SDI embedded audio capture
	Audio Codec	16 bit PCM, 48kHz, 1536kbps
	Other Features	Support 1080i hardware de-interlacing, 3D noise reduction algorithm
SUPPORTS	Device Support	Support camera, camcorder, video switcher and other devices
	OS Support	Windows 7 and above, Linux 18.04 and above
	Software Compatible	OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software
	APIs Support	Windows(DirectShow, DirectSound/WASAPI) Linux(V4L2, ALSA)
OTHERS	Power consumption	≤2.0W
	Temperature	Operating temperature: 0℃~60℃ Storage Temperature: -20℃~70℃
	Relative Humidity	5%~90% non-condensing
	Dimension	120.1×88.4×21.6mm
	Weight	Net weight: 150g, Gross Weight: 195g
