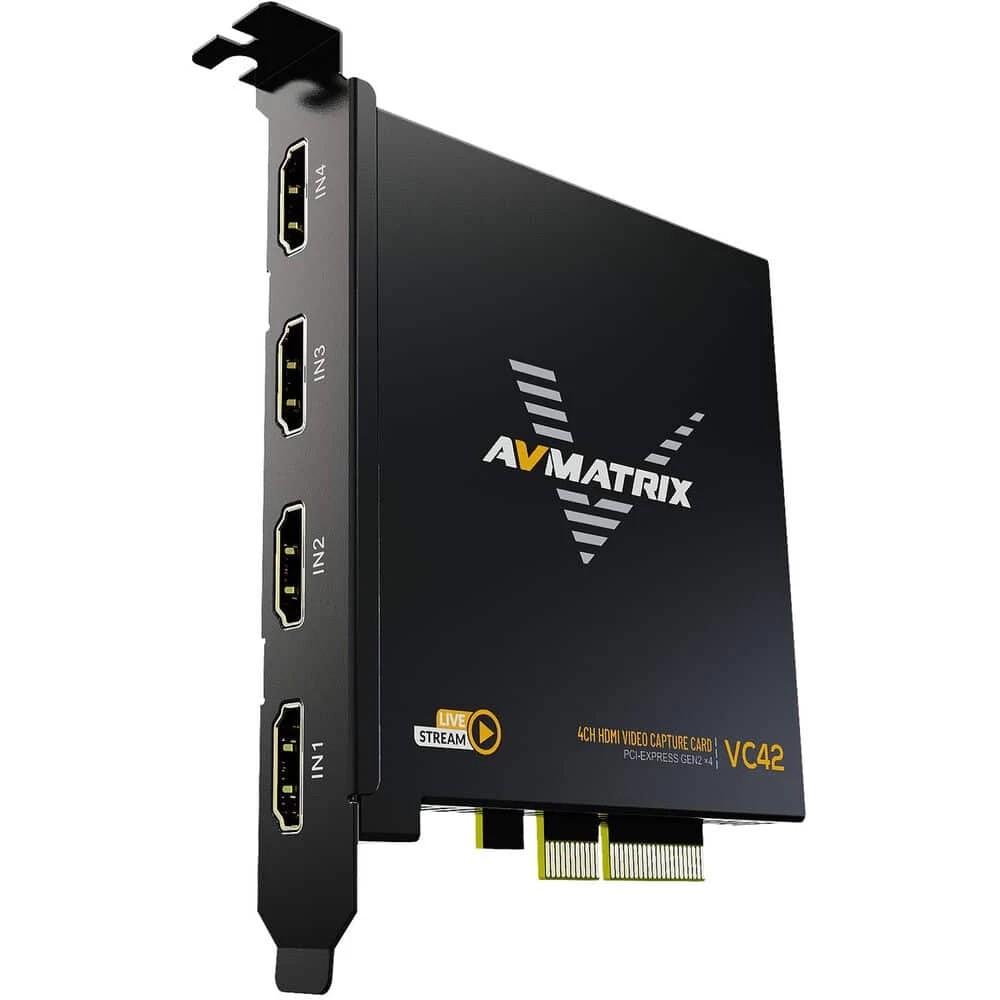

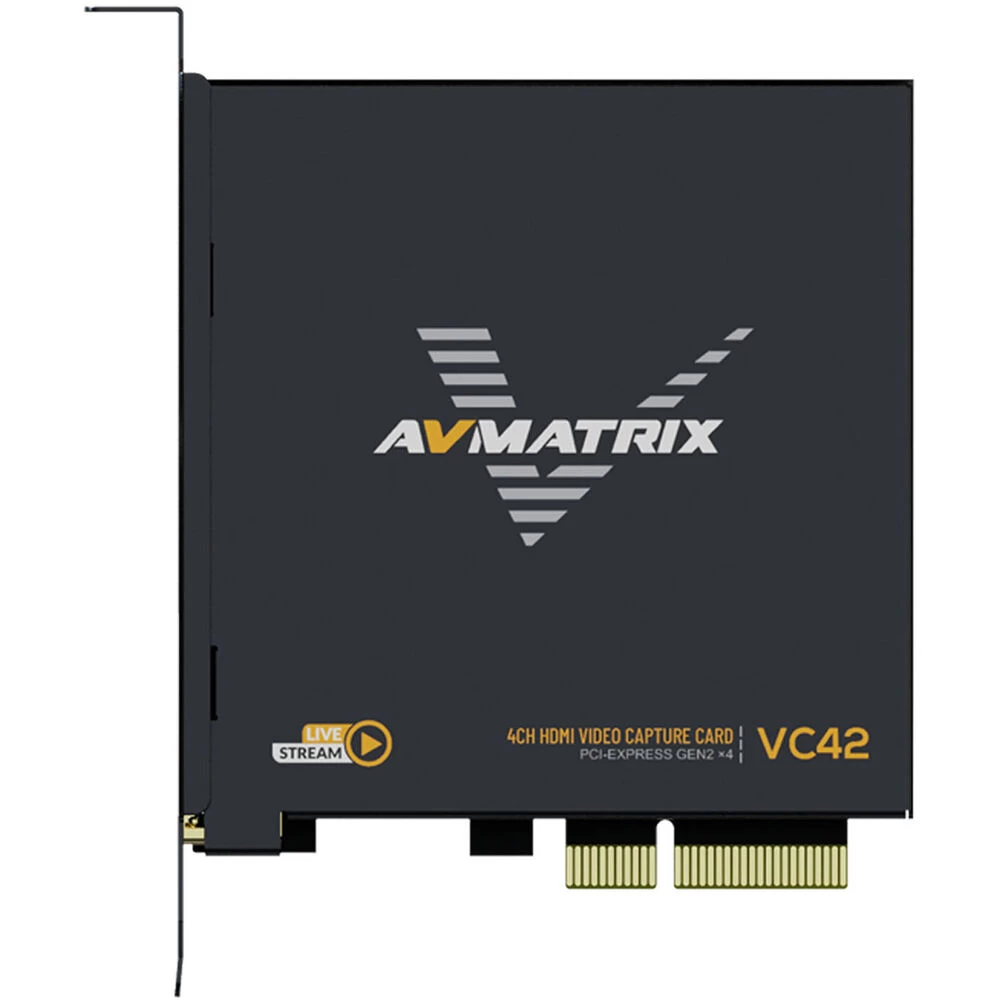

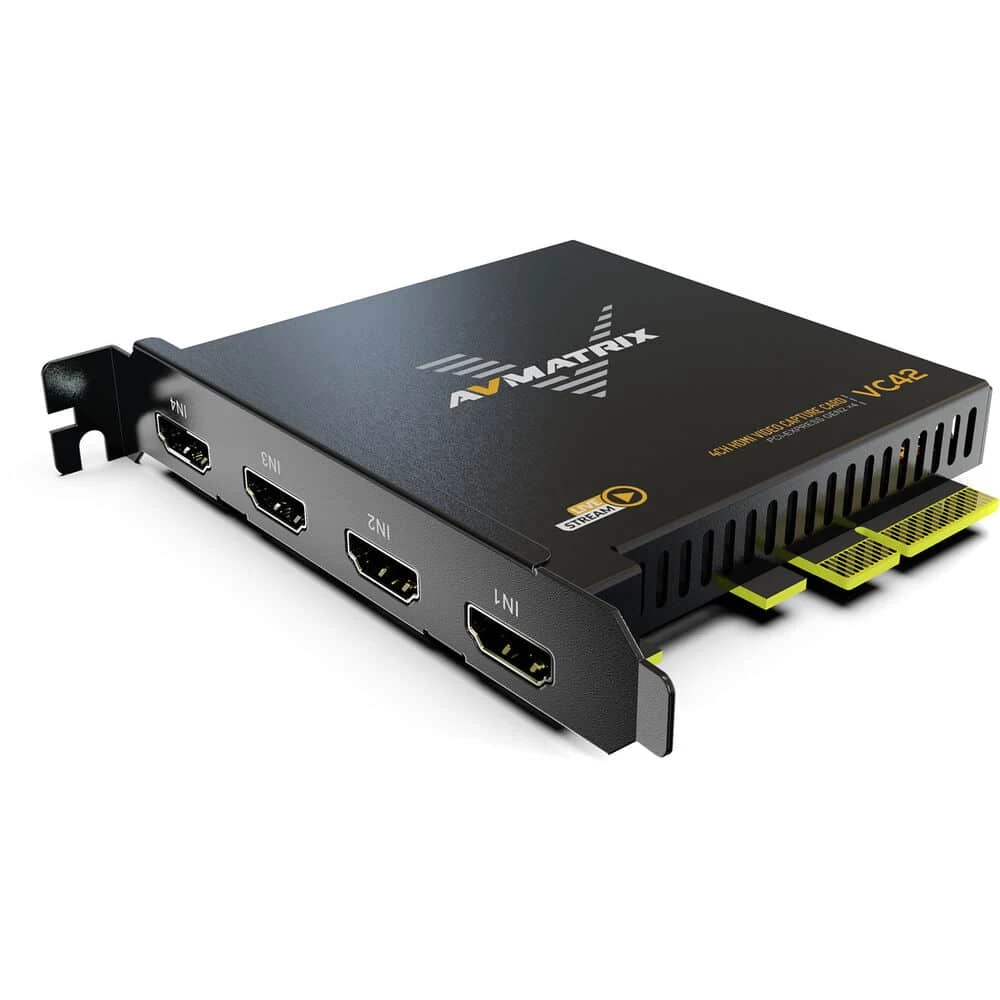

AVMATRIX VC42 4-CH HDMI PCIE Capture Card

AVMATRIX VC42 4-CH HDMI PCIE Capture Card

The AVMatrix VC42 is a 4-Channel HDMI PCIE video capture card, it supports four HDMI inputs and capture,and compatible with console or PC games and digital cameras. HD video capture up to 1080p60 with bit rates up to 200Mbps, transfer bandwidth up to 2.5GB/S, VC42 can meet the needs of high-bandwidth, high-performance image acquisition and processing applications,ideal for use in live streaming platforms.

KEY FEATURES AVMATRIX VC42

TECHNICAL SPECIFICATIONS AVMATRIX VC42

CONNECTIONS	Host Interface	PCIE2.0x4 2.5GB/s transfer bandwidth

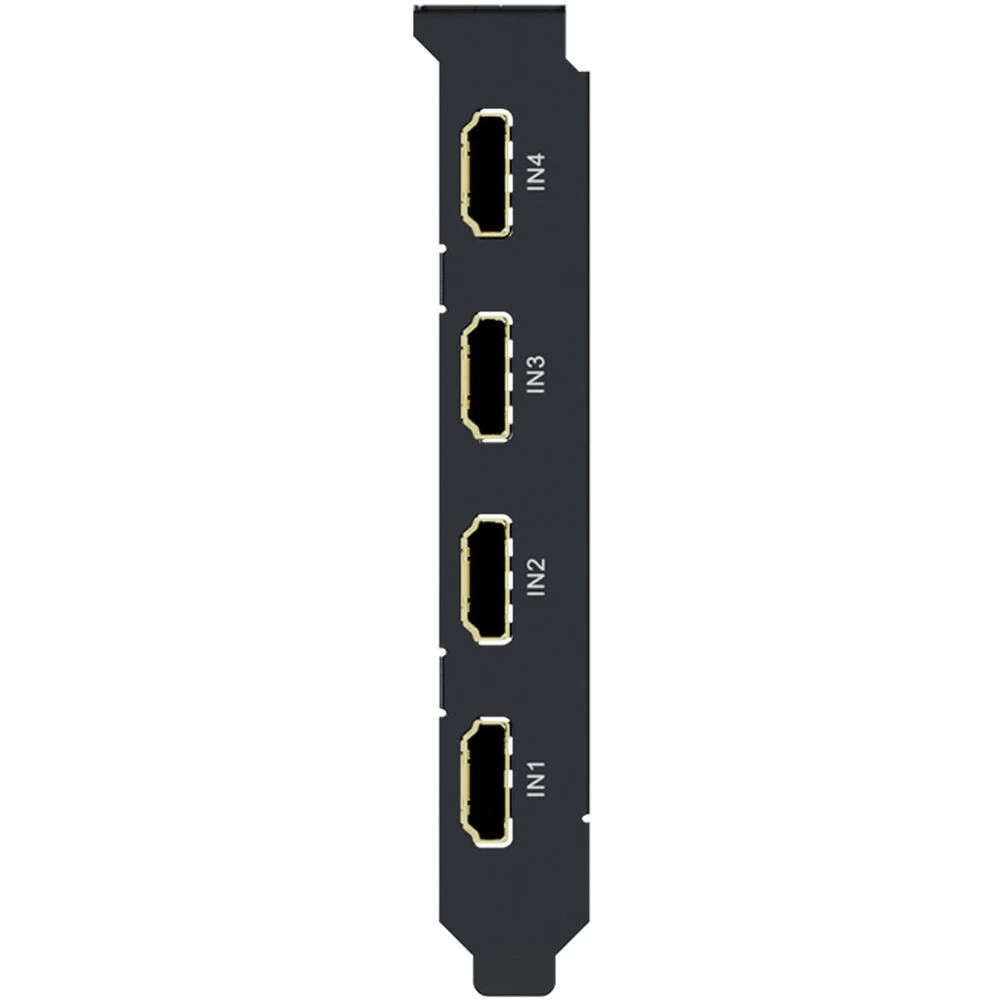

	Video Interfaces	4×HDMI1.4 inputs
STANDARDS	HDMI Input Format	Up to 1080p60 each channel
	Capture Format	1920×1200, 1920×1080, 1600×1200, 1600×900, 1440×900, 1280×1024, 1280×800, 1280×720, 1080×1920, 1024×768, 800×600, 720×576, 720×480  60fps 1920×1080, 1280×720, 1080×1920 59.94fps 1920×1080, 1280×720 50fps 1920×1080, 1280×720, 1080×1920, 800×600, 720×576, 720×480 30fps 1920×1080, 1280×720, 1080×1920 25fps
	Capture Color Space	YUY2, uncompressed
	Audio Capture	4×HDMI embedded audio capture
	Audio Codec	16 bit PCM, 48kHz, 1536kbps
	Other Features	Support 1080i hardware de-interlacing, 3D noise reduction algorithm
SUPPORTS	Device Support	Support XBOX, PS4, SWITCH, Video player, TV box and media box, etc.
	OS Support	Windows 7 and above, Linux 18.04 and above
	Software Compatible	OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software
	APIs Support	Windows(DirectShow, DirectSound/WASAPI) Linux(V4L2, ALSA)
OTHERS	Power consumption	≤2.0W
	Temperature	Operating temperature: 0℃~60℃ Storage Temperature: -20℃~70℃
	Relative Humidity	5%~90% non-condensing
	Dimension	120.1×88.4×21.6mm
	Weight	Net weight: 150g, Gross Weight: 195g

INCLUDED BY DEFAULT

• AVMATRIX VC42
