AVMATRIX WM12 Single Mini Wireless Microphone System

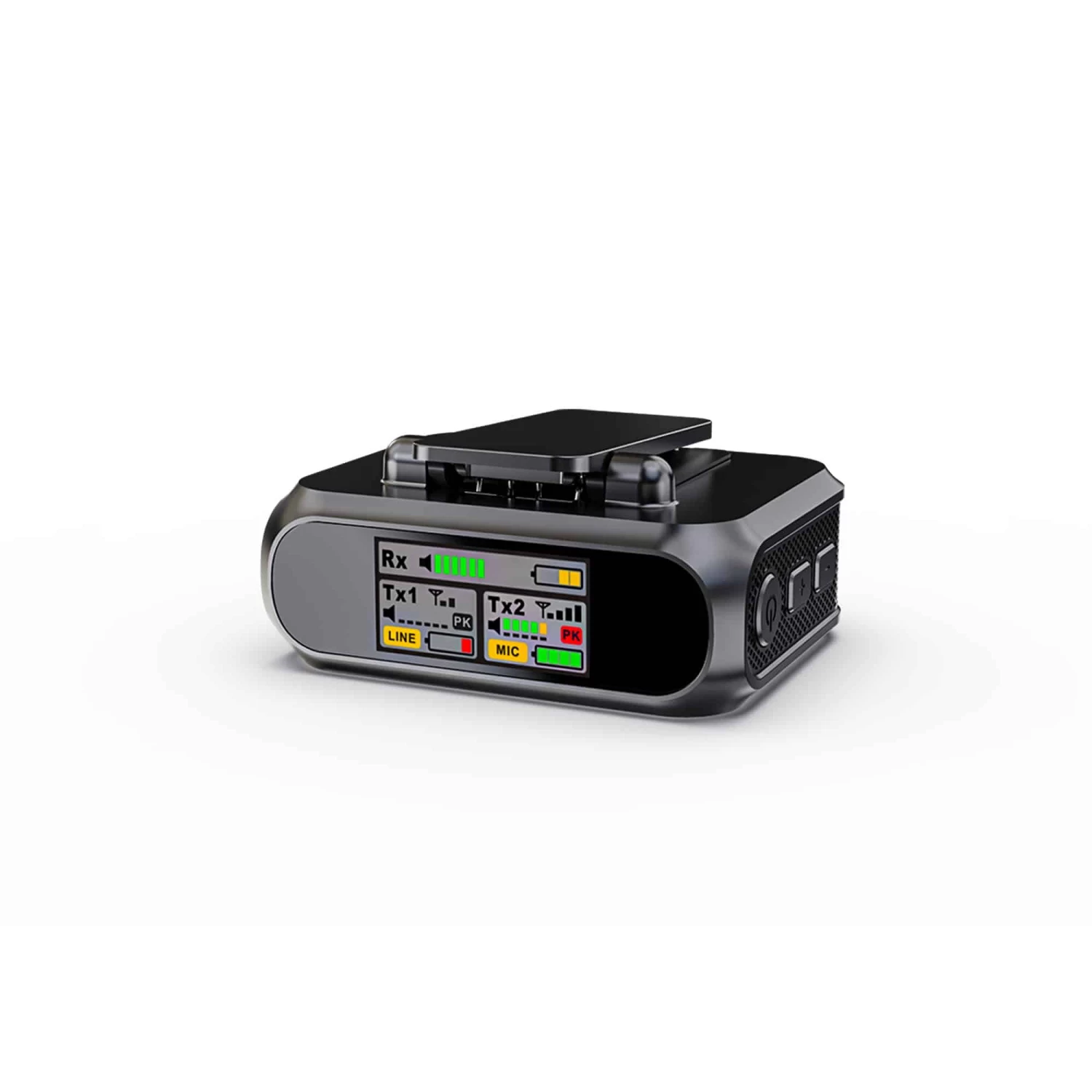

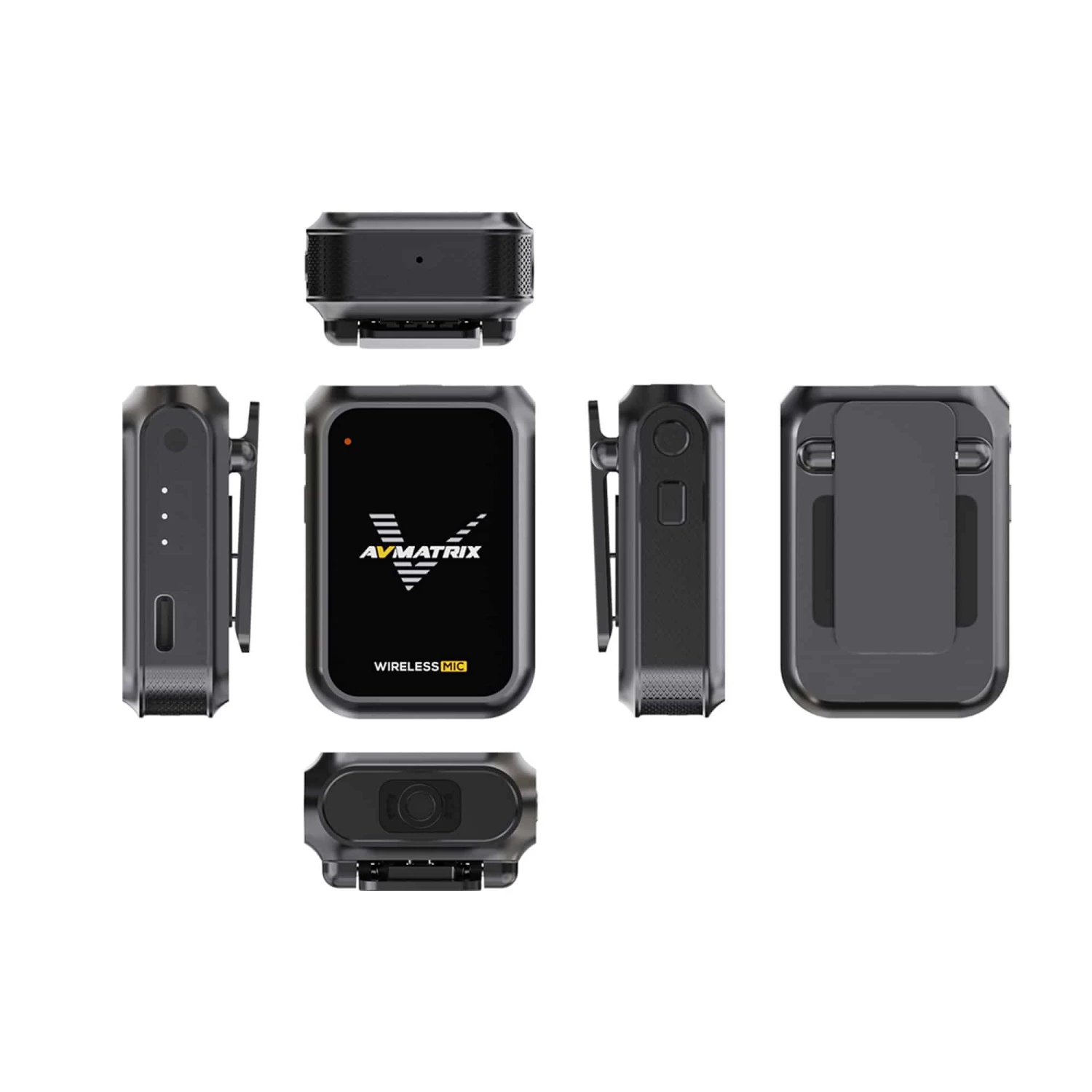

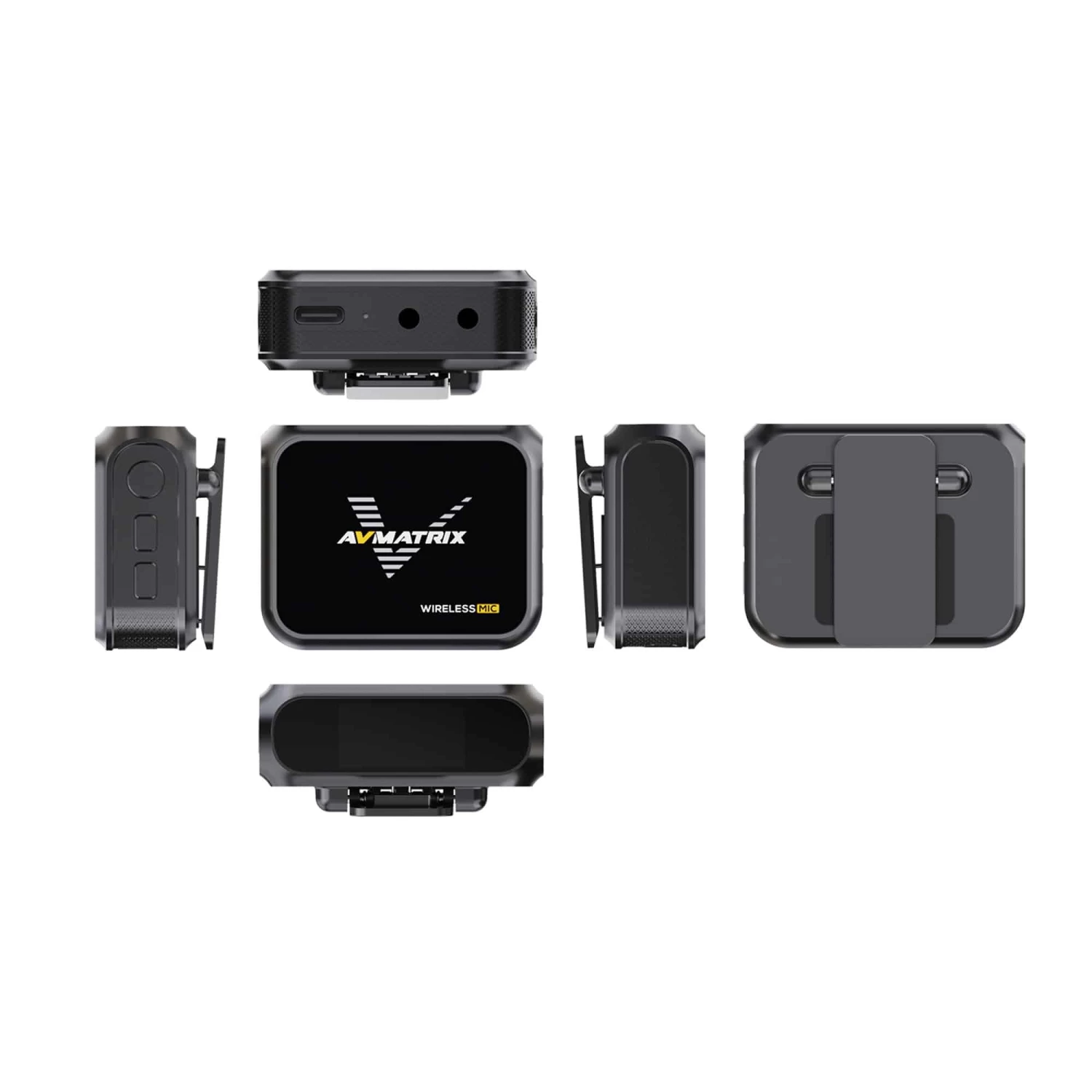

The WM12 is an extremely small, full-featured wireless microphone system. The transmitter has a built-in microphone and can be clipped directly to the collar. This product adopts 2.4G frequency band for transmission, the receiver and transmitter will be paired automatically within 2-5 seconds after powering on, and the effective use distance reaches 100 meters(Open and undisturbed environment). The receiver uses a clear TFT display to show the current input and output audio dynamic messages, etc. Use the 3.5mm TRS output to connect to camera tablets, cell phones and other devices to assist in picking up high-fidelity audio. Ideal for applications such as interviews, micro-video recording or business presentations.

KEY FEATURES

TECHNICAL SPECIFICATIONS

COMBO	WM12 Dual	2TX+1RX
	WM12 Single	1TX+1RX
TRANSMITTER	Audio In	3.5mm TRS
	Power In	USB Type-C (Power charge)
RECEIVER	Earphone Out	3.5mm TRS
	Line Out	3.5mm TRS
	Power In	USB Type-C (Power charge & Sound card)
WIRELESS	Modulation Mode	GFSK
	Operating Frequency	2.4GHz (2400M~2483 .5MHz)
	Transmission Range	100m (Open and undisturbed environment)
MIC	Frequency Range	100Hz ~ 20KHz±3dB
	Mic Polar Pattern	Omnidirectional
	Mic Sound Pressure Level	110dB SPL (Max)
	Signal-to-noise Ratio	≥90
	Sensitivity	TX: -34dB, RX: -94dB
DISPLAY	Display	0.96 inch TFT color LCD display
	Display Resolution	160 × 80
POWER	Operating current	TX: 20mA RX:70mA
	Battery Life	TX: 15h, RX: 4h
	Battery Capacity	TX: 300mAh, RX: 300mAh
	Battery Voltage	TX: 3.7V, RX: 3.7V
	Charging Time	TX: ≤1.5h (5V 1A), RX: ≤1.5h (5V 1A)
OTHER	Dimension (LWD)	TX: 34.7×50.1×20.6mm, RX: 50.1×40×23.3mm
	Weight	TX: 25g, RX: 32g, Gross Weight: 267g (2TX+RX)
	Operating Temperature	-20-60°C

INCLUDED BY DEFAULT

• WM12 Single Mini Wireless Microphone System
• Storage bag

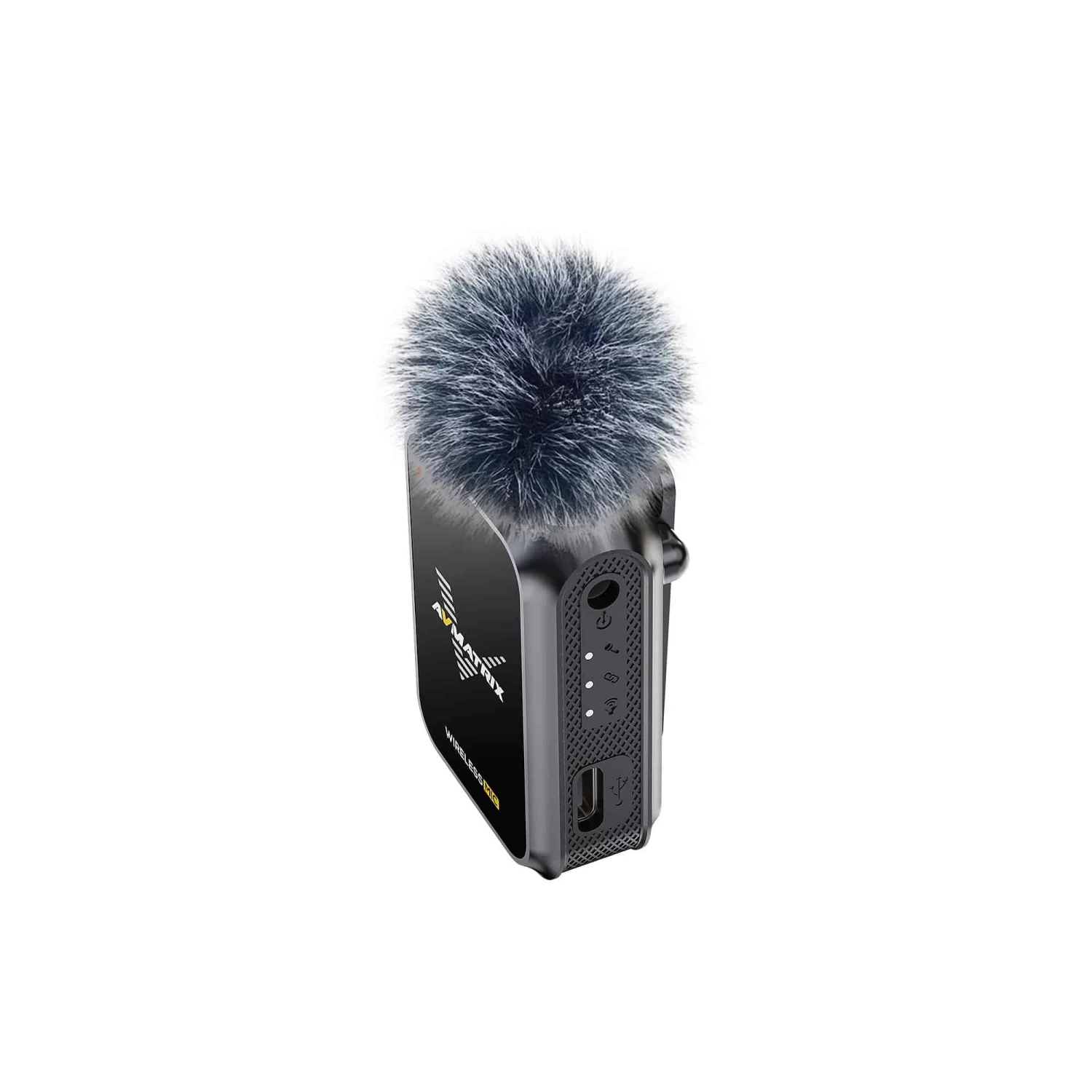

• Windproof cover
• 3.5mm to type-c cable
• 3.5mm to 3.5mm
• Three charging cable
