BirdDog 4K HDMI NDI Encoder/Decoder



BirdDog 4K HDMI NDI Encoder/Decoder

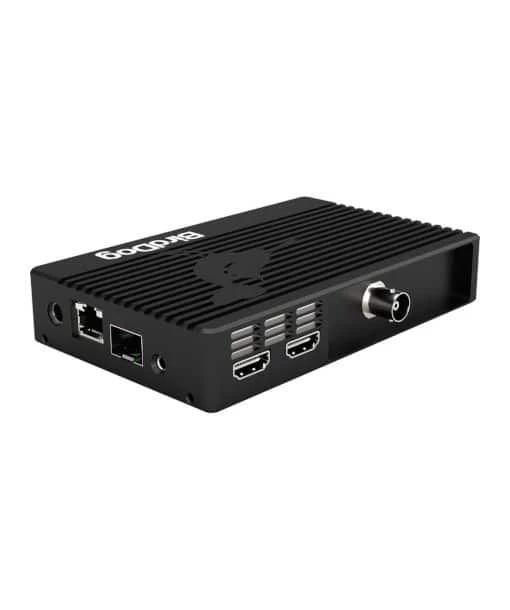

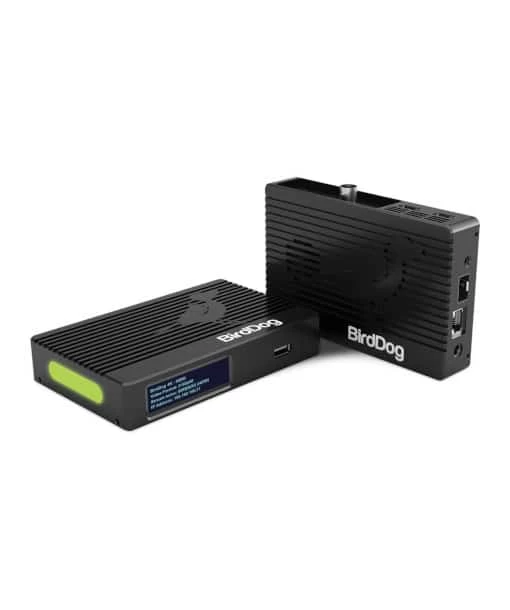

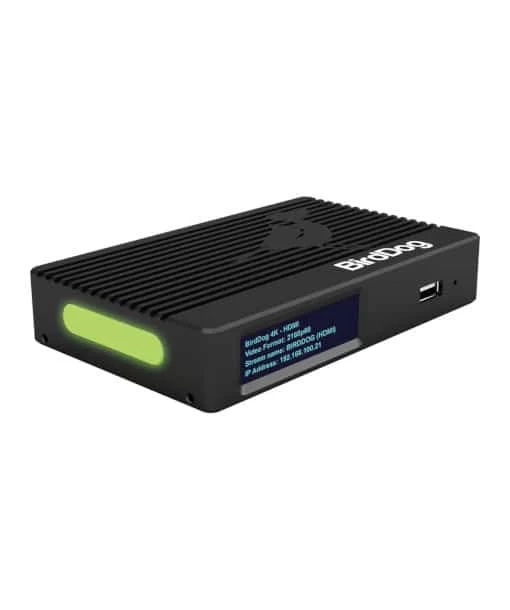

The BirdDog 4K HDMI NDI Encoder/Decoder supports up to UHD 4K/60 video input for distribution on NDI networks in full-bandwidth I-frame compression. The compact device is housed in an aircraft-grade aluminium case and features an HDMI 2.0 input and HDMI 2.0 and 12G-SDI individual outputs. It also has a built-in cross converter that allows the HDMI input to be looped out via the 12G-SDI output.

It also comes with a SFP+ expansion slot that supports SFP+ modules for fiber connectivity and Ethernet protocols from 1-10GbE. A tally system with a large bicolor tally light is built-in for indicating which camera is live to on-air talent. The tally system allows user-selectable tally borders on loop out. The device is complete with 3.5mm audio input/output, a 4-line OLED display, and USB 3.0 interface. It can be powered by a standard power supply or over PoE+.

KEY FEATURES BirdDog 4K HDMI NDI Encoder/Decoder

• Up to UHD 4K/60 video input
• Distribution on NDI networks in full-bandwidth I-frame compression
• HDMI 2.0 input
• HDMI 2.0 output
• 12G-SDI output
• 3.5mm audio input/output
• Built-in cross converter
• SFP+ expansion slot
• Bicolor tally light
• Selectable tally indicator on video loop outputs
• PoE+ support
• 4-line OLED display
• Includes BirdDog Comms Lite audio intercom software for Windows (upgradeable to the complete Comms Pro application)
• Compatible with the optional BirdDog Central software for decoding NDI back to HDMI/SDI
• Aircraft-grade aluminium housing
• Control any PTZ camera that supports NDI, NDI|HX, or Visca over IP using an optional USB-to-Ethernet dongle



SPECIFICATIONS BirdDog 4K HDMI NDI Encoder/Decoder

Model	Birddog 4K HDMI
Video Input Connectors	1 x HDMI (HDMI 2.0)
Input Video Format	HDMI UHD 4K: 23.98/25/29.97/30/50/59.94/60 fps 1080p: 23.98/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94 fps 720p: 50/59.94/60 fps
Audio Input Connectors	1 x 1/8″ / 3.5 mm TRS
Embedded Audio Input	HDMI: 2-Channel
Video Output Connectors	1 x HDMI (HDMI 2.0) 1 x BNC (12G-SDI)
Output Video Format	HDMI UHD 4K: 23.98/25/29.97/30/50/59.94/60 fps 1080p: 23.98/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94 fps 720p: 50/59.94/60 fps SDI UHD 4K: 23.98/25/29.97/30/50/59.94/60 fps 1080p: 23.98/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94 fps 720p: 50/59.94/60 fps
Audio Output Connectors	1 x 1/8″ / 3.5 mm TRS
Embedded Audio Output	HDMI: 2-Channel SDI: 2-Channel
Audio Output Connectors	1 x 1/8″ / 3.5 mm TRS
Other I/O	1 x USB Type-A PoE
Expansion Slots	1 x SFP+ Slot
Tally Light	Yes
Power Connector	1 x Barrel (12 VDC) Input 1 x RJ45 Input
PoE Support	PoH 802.3at
Power Consumption	Device: 16 W
Dimensions	5.31 x 3.35 x 0.98″ / 13.5 x 8.5 x 2.5 cm
Weight	0.57 lb / 260 g
Warranty Length	Limited 1-Year Warranty



INCLUDED BY DEFAULT

• Birddog 4K HDMI
• 12V Power Adapter
