BirdDog MAKI Ultra Box Camera with 12x Zoom (White)

Capture UHD 4K60 resolution video with this black MAKI Ultra 4K Box Camera with 20x Zoom from BirdDog. Boasting a powerful 12x zoom and a 72.8° angle of view as well as color matrix, API, and Kelvin control, the versatile MAKI Ultra offers exceptional low-light performance and support for NDI|HX2 and NDI|HX3.

Physical connectivity options include an SDI output with a maximum resolution of 1080p60, and HDMI and USB/UVC outputs with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally augments the camera’s broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.

Compact & Mighty

The MAKI Ultra boasts a compact footprint, helping you capture those unusual and engaging camera angles with ease. Deliver killer POV shots that put your audience right in the game at eSports events, or attach the camera to a band rig to capture incredible angles of your drummers or instrumentalists.

Capture Every Moment with Ultra Detail

With its 4K60 capabilities, the MAKI Ultra expands your options on what and how you capture content. From fast-moving action shots to incredible detail in low-light sets, you can get all the detail thanks to the camera’s high frame rate and advanced image processing capabilities.

Super-Fast Autofocus to Keep Pace with Your Vision

The super-fast autofocus is ideal for dynamic content and fast-paced environments. Equipped with a laser and powered by advanced automatic focusing algorithms, the MAKI Ultra ensures rapid and accurate autofocus. Whether your subjects are zipping across the frame or moving closer and further away to the camera, the MAKI Ultra keeps them sharp and in focus.

Take Control

The intuitive physical buttons allow you to make quick adjustments to zoom and focus, and quickly access the onscreen menu.

Enhanced NDI Performance

The MAKI Ultra gives you reliable performance on more networks via NDI|HX2 and NDI|HX3, giving you great quality video with a much lower demand on your network. Sending video across more varied networks, or even across campus just got a whole lot easier.

KEY FEATURES BirdDog Maki Ultra 12x

• 12x Zoom & UHD 4K60 Resolution
• NDI|HX2 & NDI|HX3 Support
• 3G-SDI, HDMI & USB/UVC Outputs
• 72.8° wide angle
• Built-In Halo Tally
• Color Matrix, API & Kelvin Control
• PoE Support
• Exceptional Low-Light Performance

SPECIFICATIONS BirdDog Maki Ultra 12x

Product	BDMKU12XW
IMAGING
Image Sensor	1/2.8 inches, CMOS
Optical Zoom	12x
Video Formats	2160p @ 60/59.94/50/30/29.97/25fps,1080p @ 60/59.94/50/30/29.97/25fps, 720p @ 60/50/30/25fps
Horizontal angle of view	72.8° ~ 6.8°
Vertical angle of view	44.1° ~ 3.8°
Aperture	F1.8~F2.68
Focus	TOF, Auto, Manual
Exposure	Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation	Yes
Digital Noise Reduction	Yes
SNR	>55dB
Effective Pixels	8.4 Megapixels
MECHANICAL
Phisical Buttons	8
	Zoom operation, focus operation, brightness adjustment, menu control, image freezing, and mode switching.

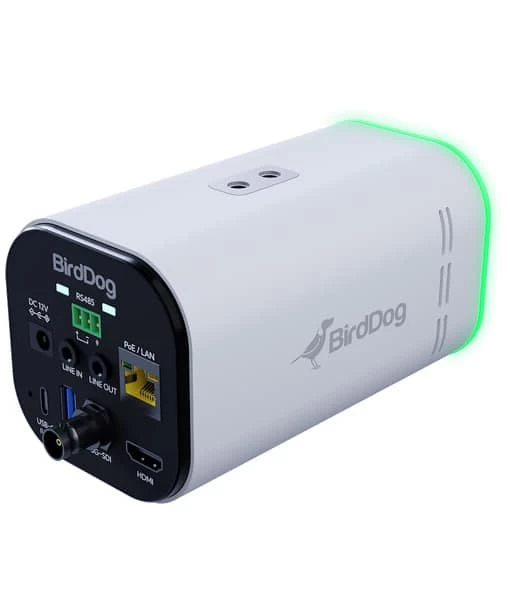

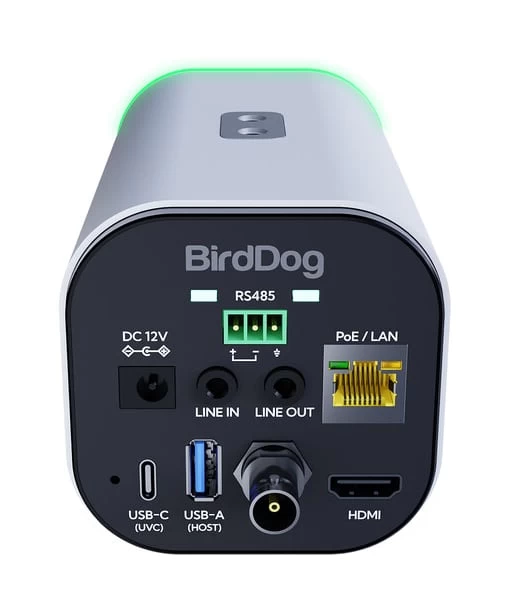

I/O INTERFACE
Video Interfaces	1 x HDMI 2.0;
	1 x 3G-SDI, USB-C UVC 1.1
Video Compression Format	H.264 / H.265
LAN	100M/1000M adaptive Ethernet Support: PoE(802.3af)
Network Protocol	NDI® | HX2, NDI® | HX3
Control Protocol	VISCA Baud Rate: 9600/4800/38400/2400, VISCA-IP, NDI®
Control Interface	RS485: 2pin phoenix port, TYPE-C(UVC1.1)
Audio I/O	1 × Line In, 3.5mm Jack; 1 × Line Out, 3.5mm Jack, Built-in Mic
USB	1 x USB3.0,Type-C (UVC 1.1)
GENERAL
Power Input	DC005-2.0mm type(DC IN 12V)
Input Voltage	DC 12V /PoE(802.3af)
Input Current	1A (Max)
Power Consumption	12W (Max)
Dimension (W*H*D)	145mm 79mm 80mm (SDI connector excluded)
Net and Gross Weight	0.8kg/1.3kg (Net/Gross weight)

INCLUDED BY DEFAULT

• BirdDog MAKI Ultra Box Camera with 12x Zoom (White)
• Remote Control
• 12 VDC Power Supply
