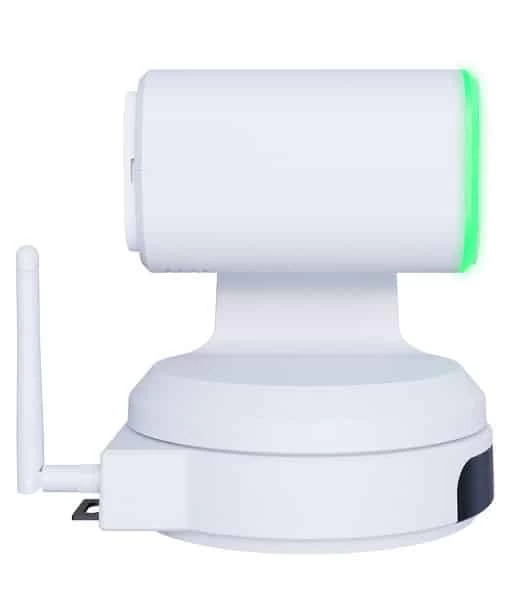

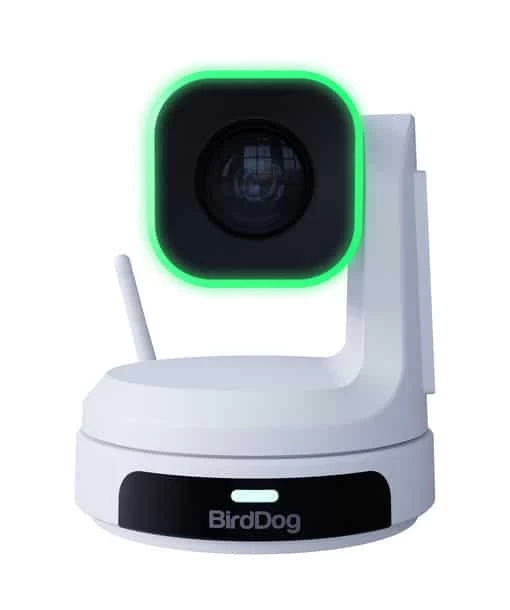

BirdDog X1 PTZ Camera with 20x Zoom (White)

Capture 1080p60 resolution video and keep your subjects in frame with AI auto framing using this black X1 PTZ Camera with 20x Zoom from BirdDog. Boasting a powerful 20x zoom as well as color matrix, API, and Kelvin control, the versatile X1 offers exceptional low-light performance and support for Wi-Fi 5 and NDI|HX3.

Physical connectivity options include an HDMI output and a USB/UVC output with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally and a 2.93″ E-Ink display augment the camera’s broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.

Integrated NDI Decoder

The camera features an NDI|HX decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. All the connectivity is contained into a single cable, radically simplifying how you interface with your equipment. Less gear. Less hassle.

AI Tracking

Keep your subject in focus with AI tracking technology, intelligently following your subject’s movements in real-time. Whether you’re orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.

Wi-Fi Connectivity

No need to use cables to capture every shot. On top of regular Ethernet with PoE, the camera boasts built-in Wi-Fi functionality. Easily capture shots from spots where it’s hard to run a cable, seamlessly integrating into any environment.

NDI|HX2 & NDI|HX3 Integration

Achieve superior network performance via NDI|HX2 and NDI|HX3 integration. You get significantly reduced network impact and excellent image quality for a more user-friendly experience in more network environments.

Built-In Halo Tally Light

A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system. Your cast and crew will always know where to look to keep you audience engaged and your look polished.

KEY FEATURES BirdDog X1

• 20x Zoom & 1080p60 Resolution
• AI Auto Framing

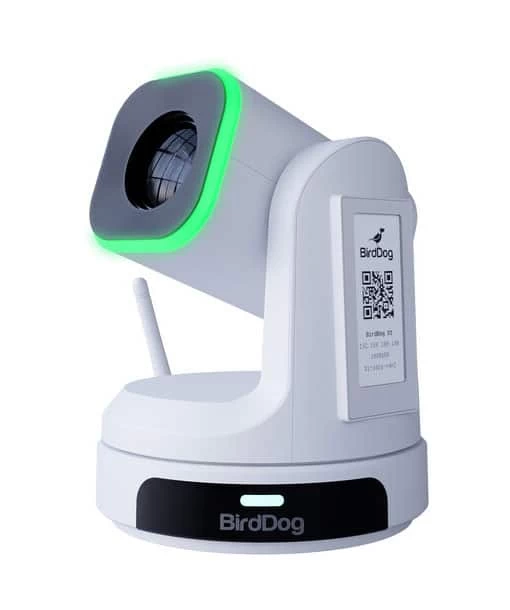

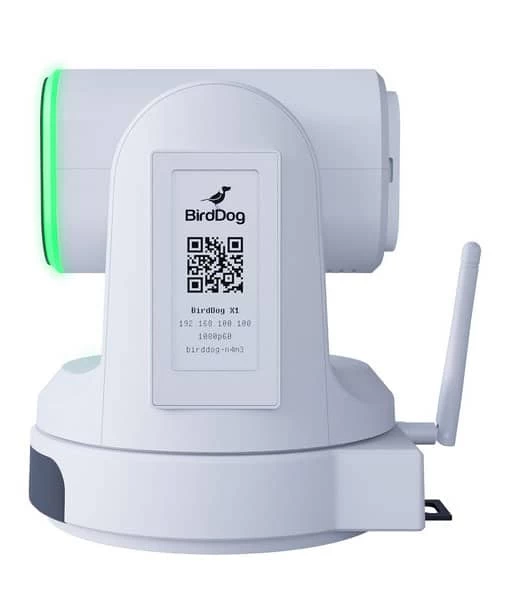

• Integrated 2.93″ E-Ink Display
• Wi-Fi 5 & NDI|HX3 Support

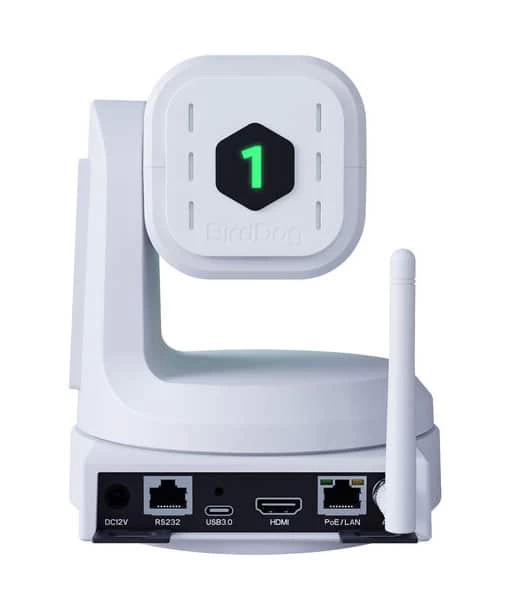

• HDMI & USB/UVC Outputs
• Built-In Halo Tally
• Color Matrix, API & Kelvin Control
• PoE Support
• Exceptional Low-Light Performance

SPECIFICATIONS BirdDog X1

Model	BDX1W
IMAGING
Image Sensor	Sony 1/2.8” CMOS – FULL HD
Lens	f=5.5mm – 110mm
Optical Zoom	20x
Video Format	1080p @ 60/59.94/50/30/29.97/25fps, 720p @ 60/50/30/25fps
Horizontal angle of view	55.8° (W) – 3.2° (T)
Vertical angle of view	32.2° (W) – 1.8° (T)
Diagonal angle of view	61° (W) – 3.64° (T)
Aperture	F1.6 ~ 3.5
Focus	Auto, Manual
Exposure	Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation	Yes
Digital Noise Reduction	2D and 3D Noise Reduction
SNR	>50dB
Effective Pixels	2.07 MP
MECHANICAL
Pan/Tilt Rotation	±175°, -90° ~ +90°
Pan Control Speed	0.1 -80°/sec
Tilt Control Speed	0.1 -60°/sec
Preset Number	255 presets
I/O INTERFACE
Video Output Interfaces	HDMI, USB-C UVC 1.1, Network
Video Compression Formats	H.264, H.265
Network Interfaces	100M adaptive Ethernet port; POE IEEE 802.3af, Wi-Fi IEEE 802.11ac
Encoder Network Protocols	NDI|HX2, NDI|HX3, RTSP, RTMP
HDMI Decoder Network Protocols	NDI|HX2, NDI|HX3
Control Interfaces	10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
Control Protocols	VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
GENERAL
Input Voltage	DC 12V,  POE IEEE 802.3af
Input Current	2.0A (Max)
Power Consumption	13W (Max)
Working Temperature	-10ºC ~ +40ºC
Working Humidity	20% ~ 80%
Dimension (W*H*D)	171.6*192.6*171.6mm/ 260*217*197mm (before / after packing)
Net and Gross Weight	1.35kg/2.05kg (Net/Gross weight)

INCLUDED BY DEFAULT

• BirdDog X1 PTZ Camera with 20x Zoom (Black)
