BirdDog X4 Ultra Wireless 4K PTZ Camera with AI Tracking (Black)

The black X4 Ultra 4K PTZ Camera with AI Tracking from BirdDog features NDI|HX3 technology, enabling high-quality, low-latency video streaming, making it an ideal solution for live productions. Equipped with Wi-Fi 6, the X4 Ultra delivers ultrafast wireless connectivity, while the built-in battery allows for shooting in any location.

The integrated HALO tally system provides clear, real-time status indicators, improving communication on set. Advanced AI controls enable smart automation, and the large 1/1.8″ CMOS sensor captures a great amount of detail for vibrant, crystal-clear images. The optional base station supports wireless connectivity of up to four cameras, enabling flexible multi-camera setups. The X4 Ultra is a valuable tool for capturing breathtaking visuals, both in the studio and on the go, to bring your stories to life.

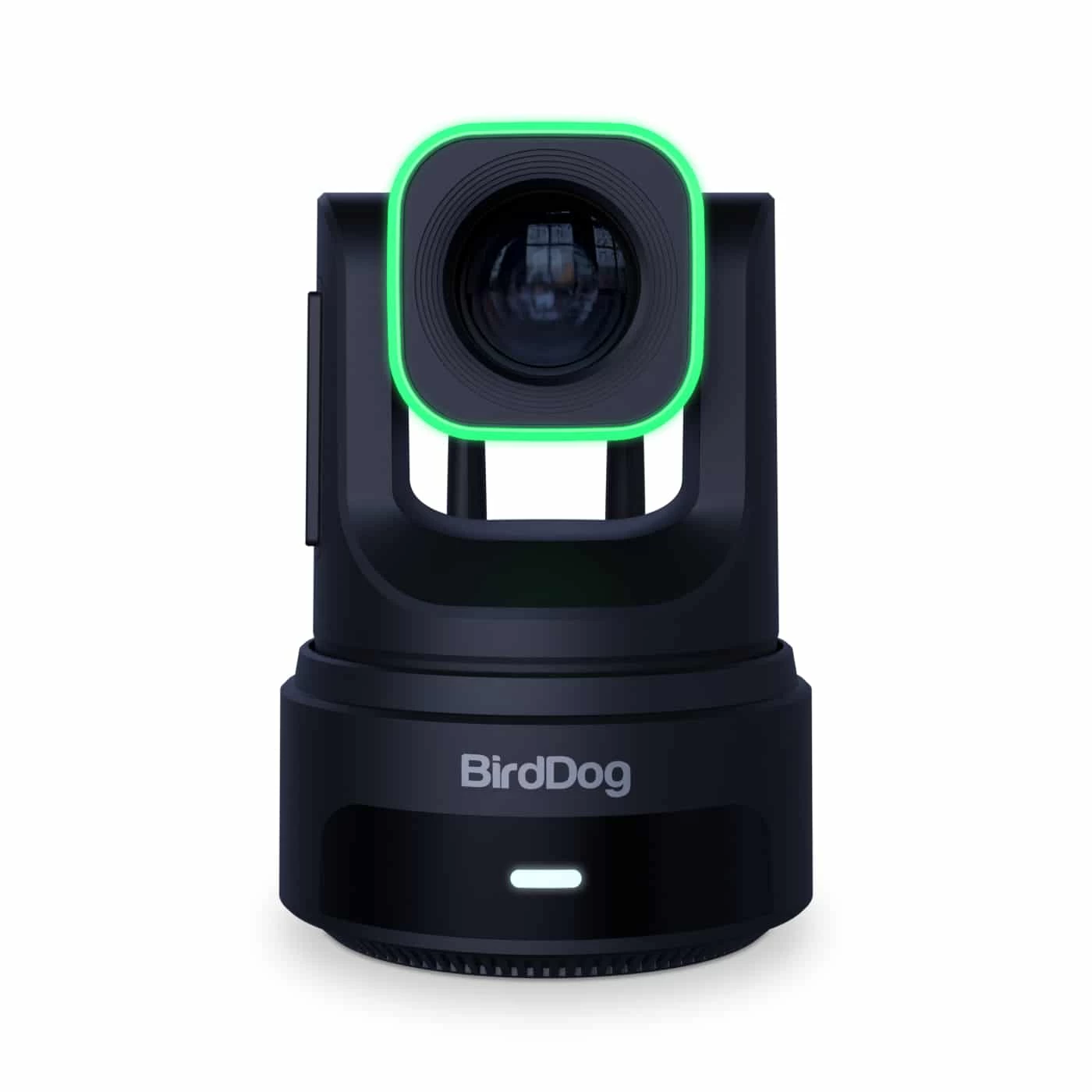

HALO Tally System

The X4 Ultra sports a visible and effective tally system. Surrounding the lens with a large, daylight-visible border, it keeps your talent looking directly at the camera. Your cast and crew will always know where to look, keeping your audience engaged.

AI Tracking

The X4 Ultra features AI controls that are designed to be easy to use, ensuring predictable and consistent performance with every shot. As your needs grow, the AI capabilities expand, adapting to deliver precise, automated control over your PTZ camera movements.

NDI|HX3

The X4 Ultra delivers superior network performance via NDI|HX3, significantly reducing network impact while maintaining superior image quality. BirdDog’s NDI|HX3 surpasses certification parameters, delivering quality and performance you can count on.

Wi-Fi Connectivity & Built-In Battery Power

The X4 Ultra features Wi-Fi 6 for fast, reliable wireless connectivity, ensuring smooth and stable streaming. Its built-in battery provides up to four hours of continuous operation, giving you the freedom to shoot on the go without worrying about power. The X4 Ultra’s battery can be quickly recharged via USB, and you can extend its operation time by connecting it to a portable power source for uninterrupted shooting.

KEY FEATURES BirdDog X4 ULTRA

• Low-Latency Video Streaming Camera
• Advanced AI for Intelligent Automation
• NDI|HX3 Support
• Sony 1/1.8″ UHD CMOS Sensor
• Supports up to UHD 4K60 Resolution
• Built-In Battery Runs for up to 4 Hours
• HALO Tally System
• Wi-Fi 6 Wireless Connectivity
• PoE Support via LAN Port

SPECIFICATIONS BirdDog X4 ULTRA

Model	BDX4UB
Image Sensor	Sony 1/1.8” CMOS
Sensor Resolution	Effective: 8.42 Megapixel
Shutter Speed	1 to 10000 Seconds
Optical Zoom	20x
External Recording Modes	HDMI / RJ45 / USB UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94 fps HD (1280 x 720) at 59.94/60.00 fps SDI/BNC HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94 fps HD (1280 x 720) at 59.94/60.00 fps
Broadcast Output	NTSC/PAL
IP Streaming	NDI|HX2, NDI|HX3, RTMP, RTSP, SRT 3840 x 2160 at 25p, 29.97p, 30p, 50p, 59.94i, 59.94p, 60p
Supported Control Protocols	ONVIF Profile S RS-232 VISCA
PoE Support	PoE+ 802.3at
Image Sensor	1/1.8″-Type CMOS
Sensor Resolution	Effective: 8.42 Megapixel
Focus Control	Autofocus Manual Focus
Shutter Speed	1 to 10000 Seconds
Signal-to-Noise Ratio	45 dB
Focal Length	6.25 to 125mm
Field of View	Horizontal: 60 to 3.5° Vertical: 35 to 2° Diagonal: 66.6 to 4°
Maximum Aperture	f/1.58 to 3.95
Presets	255
Move Speed	Pan: 1.7 to 80°/sec Tilt: 1.7 to 60°/sec
Movement Range	Pan: 340° (-170 to 170°) Tilt: 90° (-30 to 90°)
Tally Light	Yes
Video I/O	1x BNC (3G-SDI) Output 1x HDMI (Unspecified Signal) Output 1x USB-C (Unspecified Signal) Output
Audio I/O	1x 1/8″ / 3.5 mm TRS Stereo Mic/Line Input on Camera Body 1x 1/8″ / 3.5 mm TRS Stereo Line Output on Camera Body
Other I/O	1x RJ45 (Ethernet) 1x RJ45 (RS-232)
Power I/O	1x Barrel (12VDC at 5 A) Input
Operating Conditions	0 to 40°C at 20 to 80% Humidity
HDMI Decoder Network Protocols	NDI|HX2, NDI|HX3
Dimensions (W x H x D)	203.2 x 188.9 x 140.2 mm
Weight	2.19 kg (Body)

INCLUDED BY DEFAULT

• BirdDog X4 Ultra 4K PTZ Camera
