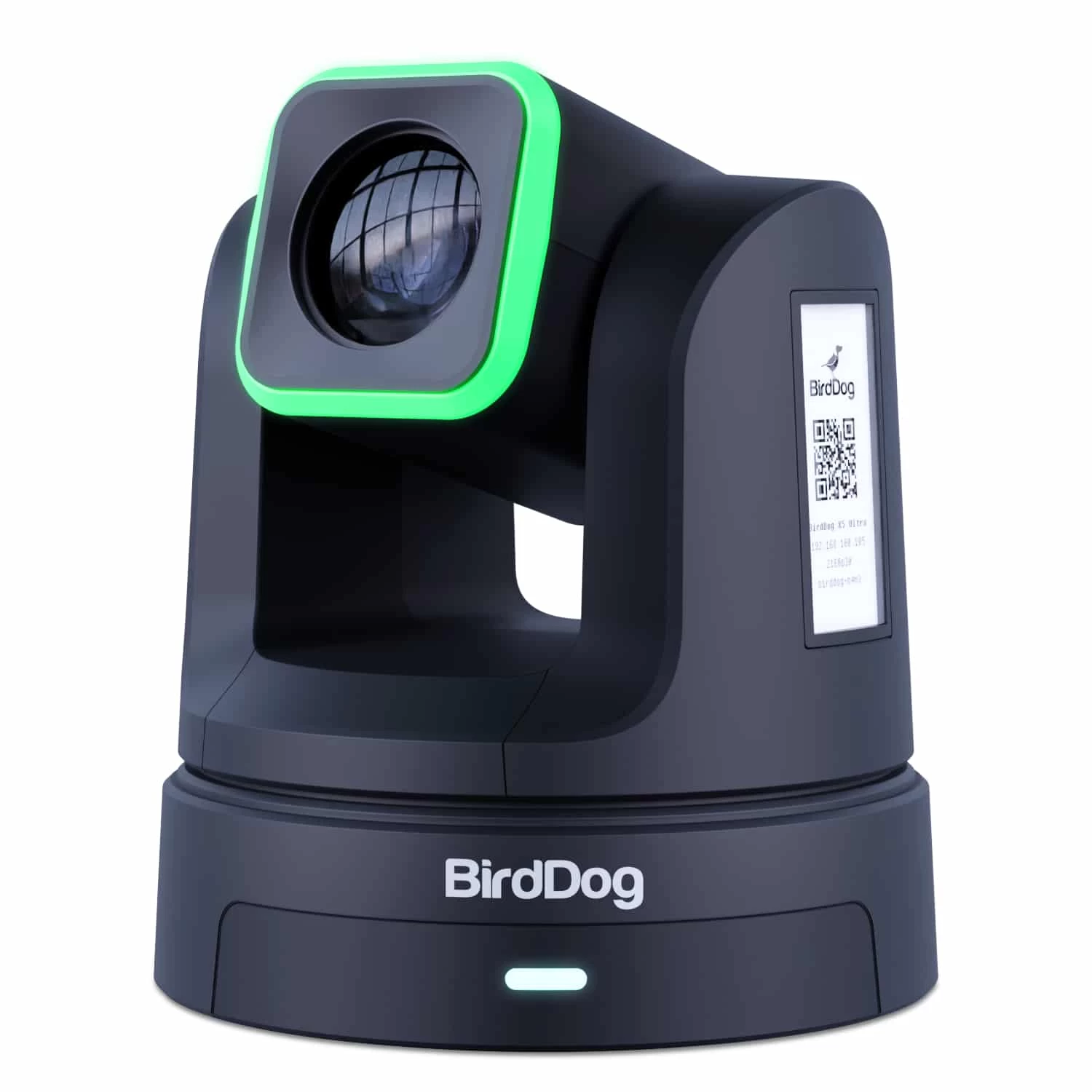

BirdDog X5 Ultra PTZ Camera with 20x Optical Zoom (Black)

The BirdDog X5 Ultra updates the X1 with 12G-SDI and HDMI 2.0 outputs for up to UHD 4K60 capture, Gigabit Ethernet, and PoE+ support as well as two 2.983″ E-Ink displays. With a powerful 20x zoom and color matrix, the versatile X5 Ultra offers high-quality, low-light performance and support for NDI|HX3.

Integrated NDI Decoder

The camera features an NDI|HX decoder designed specifically for monitoring, return feeds, or teleprompter usage. All the connectivity is contained into a single cable, simplifying how you interface with your equipment.

AI Tracking

Keep your subject in focus with AI tracking technology, intelligently following your subject’s movements in real-time. Whether you’re orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.

Connectivity Options

The X5 Ultra features 12G-SDI output, dual HDMI outputs, and support for multiple network formats, including NDI|HX3, SRT, RTMP and RTSP, and webcam connectivity over USB-C with UVC 1.1 support.

4K60 NDI|HX3 Integration

The X5 Ultra delivers superior network performance via integrated NDI|HX3. Reduce network impact while maintaining high-quality imagery across all video resolutions. NDI|HX2 is also supported in alternate resolutions.

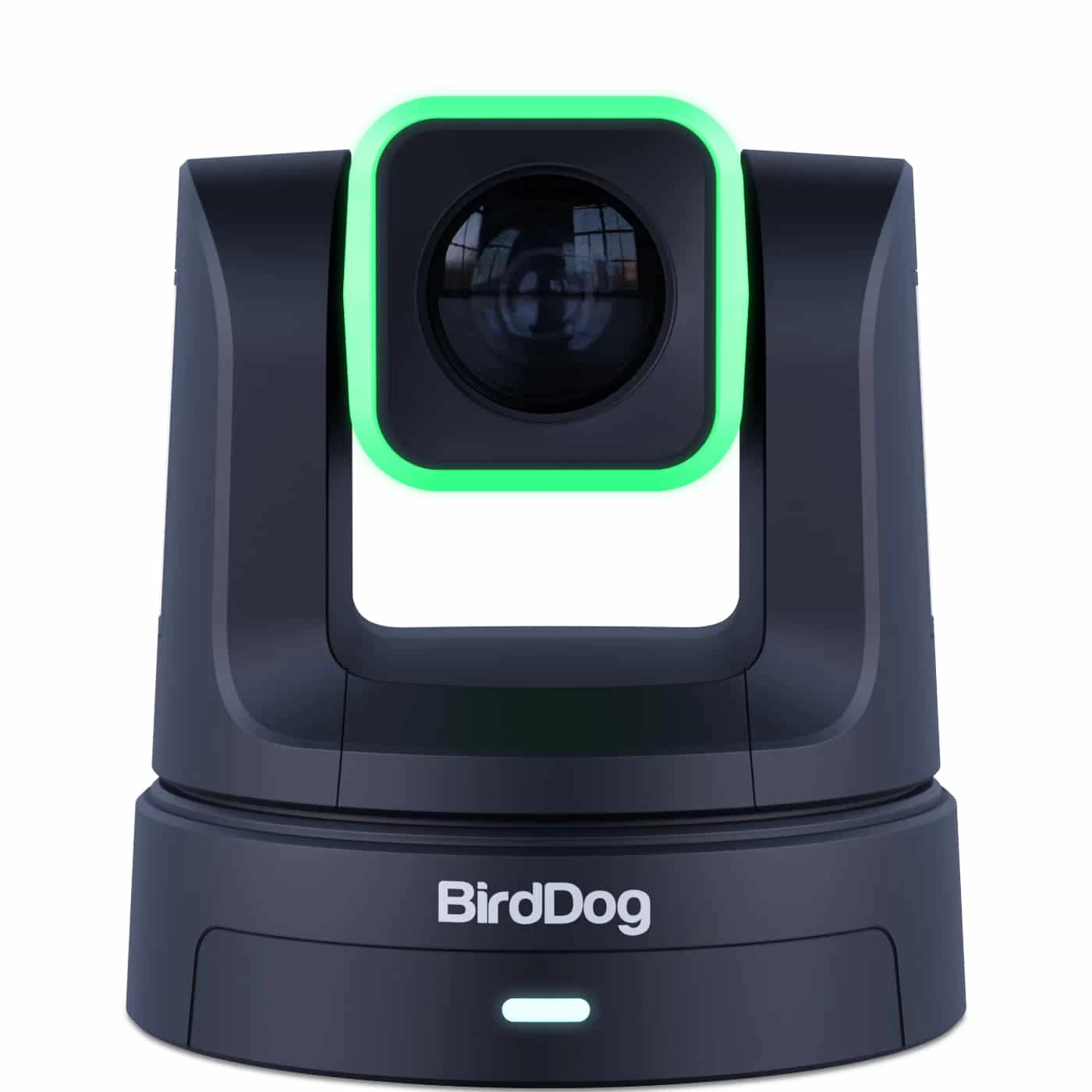

Built-In Halo Tally Light

A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system. Your cast and crew will always know where to look to keep your audience engaged and your look polished.

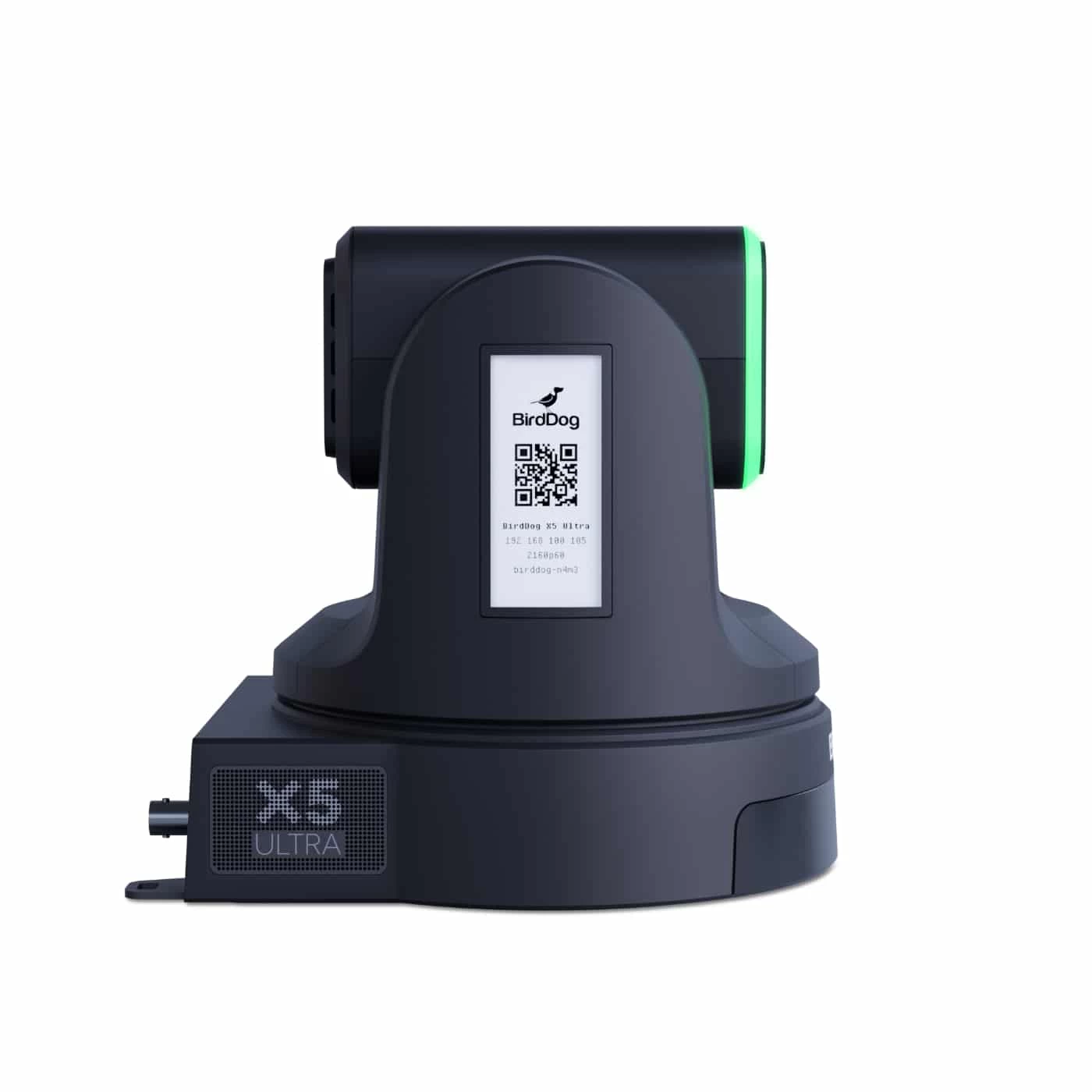

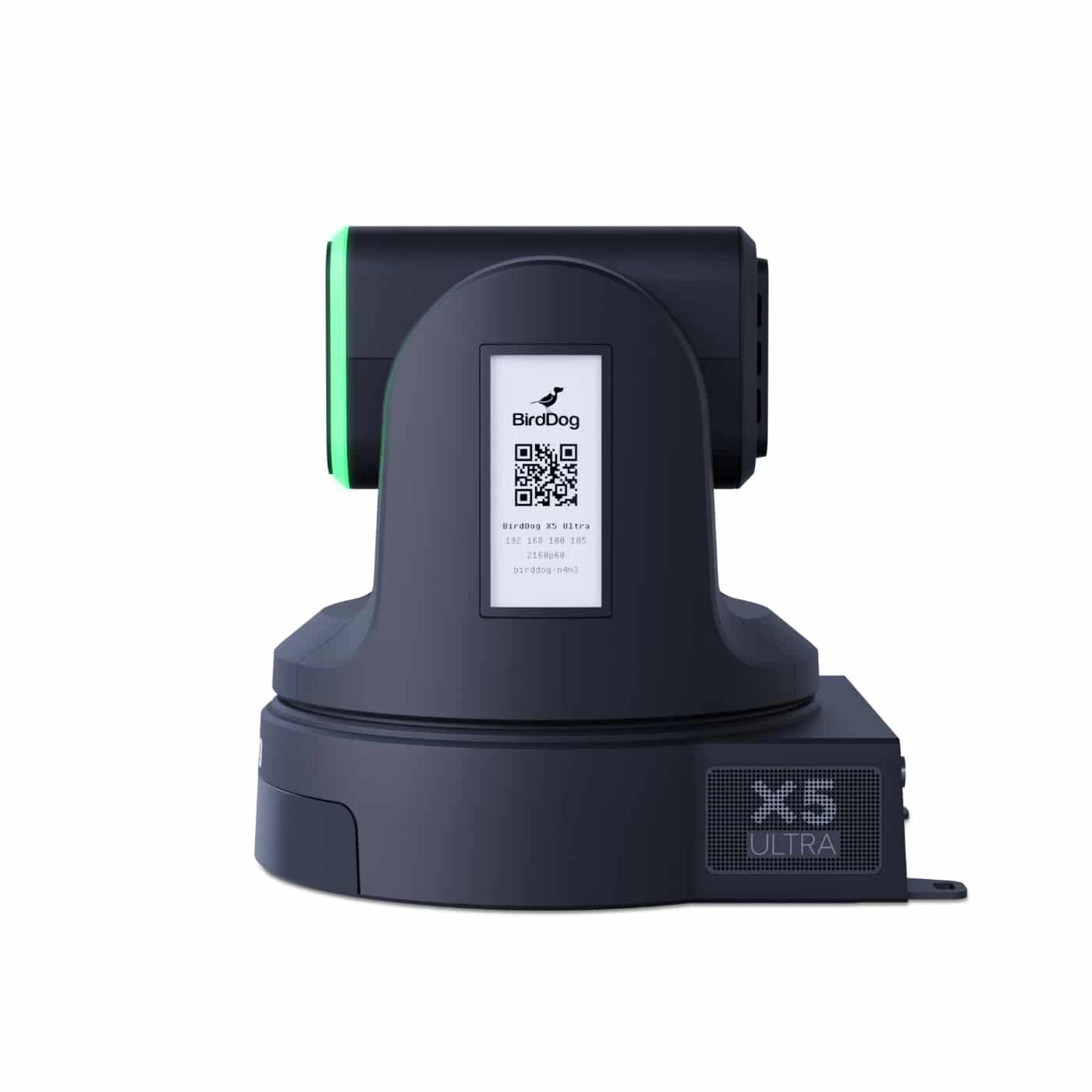

E-Ink Label

The dual, always-on e-ink label displays on the X5 Ultra allow easy access to controls and customizable logos to complement your brand image. This cool feature ensures that your setup is clear and that each camera is easily identifiable, even when the power is off.

BirdUI Advanced Features

BirdUI gives you access to every function of your X5 Ultra with an intuitive interface. As a browser-based application, it can be accessed from anywhere on the same network as the X5 Ultra. There is also a dashboard for monitoring the camera and light/dark modes to suit your production environment.



KEY FEATURES BirdDog X5 Ultra

• Capture up to UHD 4K60 Resolution Video
• 20x Zoom, AI Auto Tracking/Framing
• Built-In NDI|HX3 Support
• 12G-SDI, HDMI 2.0 & USB/UVC Outputs
• 2 x Integrated 2.93″ E-Ink Displays
• Built-In Halo Tally, PoE+ Support
• Color Matrix, High Quality in Low-Light
• Transmit Directly to Zoom/Teams
• Gigabit Ethernet

SPECIFICATIONS BirdDog X5 ULTRA

Model	BDX5UB
Image Sensor	1/2.8” CMOS
Sensor Resolution	Effective: 8.46 Megapixel (3840 x 2160)
Shutter Speed	1/1 to 1/10000 Second
Optical Zoom	20x
Video Format	2160p @ 60, 59.94, 50, 30/29.97/25fps, 1080p @ 60, 59.94, 50, 30/29.97/25fps, 720p @ 60, 59.94, 50fps
Horizontal Angle of View	56.6°(W)-3°(T)
Vertical Angle of View	32.5°(W)-1.7°(T)
Diagonal Angle of View	64.7°(W)-3.5°(T)
Aperture	F1.6(W)-F3.6(T)
Focus	Auto, Manual
Exposure	Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
Shutter Speed	1/1 – 1/10000s
Backlight Compensation	3D Noise Reduction
SNR	>50dB
Effective Pixels	8.46 MP
Filter Ring	∅49mm
AI Tracking	Presenter
Pan/Tilt Rotation	±170°, -30° ~ +90°
Pan Control Speed	0.1 -200°/sec
Tilt Control Speed	128 presets, Speed Adjustable
Integrated Tally Light	Halo style, RGB
Pan/Tilt Drive System	Ultra-fine drive
Quietness	Max 28dB at full speed pan

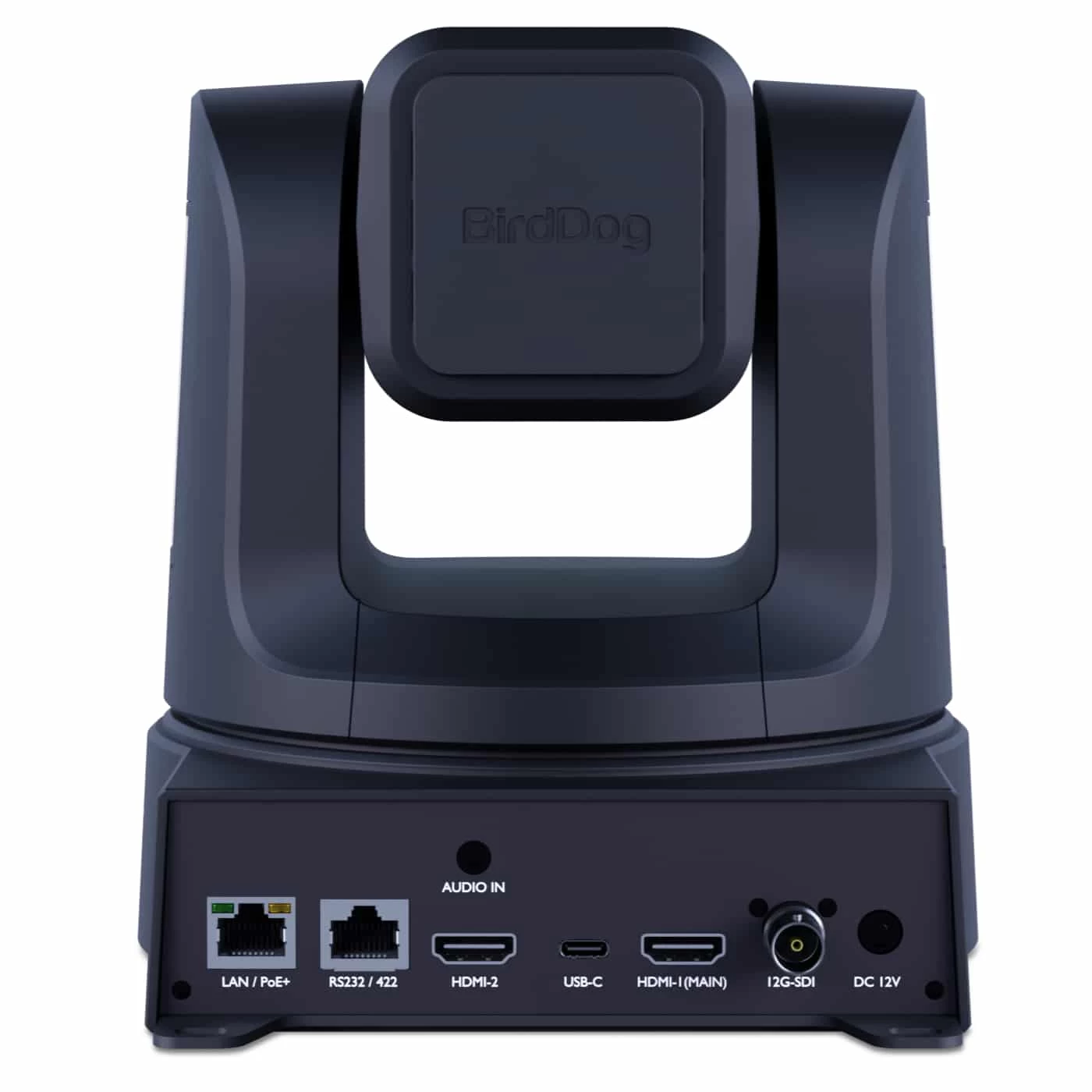

Video Output Interfaces	12G-SDI, HDMI 2.0, HDMI 1.4, USB-C UVC 1.1, 1Gb Network
Video Compression Formats	H.264, H.265
Network Interfaces	NDI®|HX2, NDI®|HX3, SRT, RTSP, RTMP
Encoder Network Protocols	NDI|HX2, NDI|HX3
HDMI Decoder Network Protocols	NDI®|HX2, NDI®|HX3
Decoder Supported Resolutions	1080p @ 60 / 59.94 / 50 /30 / 29.97 / 25fps, 720p @ 60, 59.94, 50fps
Control Interfaces	1GbE Ethernet, RS232 (input & output), RS422, TYPE-C(UVC1.1)
Control Protocols	VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®
Analogue Audio	3.5mm (1/4″) Mic In / Line In (Stereo)
Digital Audio	Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC)
Input Voltage	DC 12V, PoE+ IEEE 802.3at
Input Current	2.0A (Max)
Power Consumption	18W (Max)
Working Temperature	0ºC ~ +40ºC
Working Humidity	20% ~ 80%
Dimension (W*H*D) mm	185.7*171.9*200.90mm/ 271*275*245mm (before / after packing)
Net and Gross Weight	2.31kg/3.76kg (Net/Gross weight)

INCLUDED BY DEFAULT

• BirdDog X5 Ultra PTZ Camera
