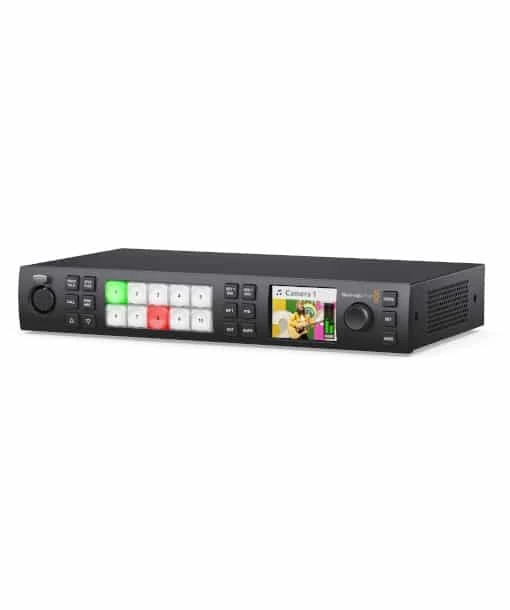

Blackmagic ATEM 1 M/E Constellation HD

The Blackmagic Design ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!

KEY FEATURES

• Supports 3G/HD-SDI at 10-Bit
• 10 x 3G-SDI Inputs, 6 x 3G-SDI Outputs
• Up to 16-Multiview Monitoring Windows
• Webcam Output via USB Type-C
• Frame Rate/Format Converter per Input
• 28-Channel Audio Mixer
• 4 x Upstream, 1 x Downstream Keyer
• Chroma/Luma Keyers
• Color/Pattern Generators
• Hardware or Software Mac/Windows Control

SPECIFICATIONS BLACKMAGIC ATEM 1 M/E CONSTELLATION HD

Available M/E Layers	1 M/E
Effect Types	4 x Chroma Key 5 x Luma Key 1 x DVE, Stinger
Downstream Keys	1 x Chroma, Luma, DVE
Generators	2 x Color 5 x Pattern
Audio Mixing	28-Channel Mixing

Processing

Switching Type	Pushbutton, Software
Processing Resolution	1080p
Color Processing	10-Bit 4:2:2

Input

Number of Video Input Sources	10
Video Input Connectors	10 x BNC (3G-SDI / HD-SDI)
Input Video Format	SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Audio Input Connectors	2 x 1/4″ TRS Stereo Analog Female
Input Audio Format	Analog

Output

Video Output Channels	6
Video Output Connectors	6 x BNC (3G-SDI / HD-SDI) 1 x USB Type-C (USB Video) (Program)
Output Video Format	SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Embedded Audio Output	SDI USB Type-C
Multiview Output	1x 3G-SDI 16-Way Multiview

Connectivity

Other I/O	1 x BNC Blackburst, Reference, Tri-Level Sync Input 1 x RJ45 Control 1 x RJ45 Talkback Input/Output 1 x XLR 5-Pin Talkback Input/Output
Video Standard Compliance	SMPTE 292M/296M/424M/425M-A/425M-B
HDCP Support	None
IP Video	1280 x 720 to 1920 x 1080 Encoding

Display

Display Size

2.2″

Hardware

OS Compatibility	macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 *As of April, 2022: Check with manufacturer for the most up-to-date compatibility
Power Connector	1 x IEC C14 Input
Power Consumption	Device: 36 W

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90% (Non-Condensing)

General

Rack Form Factor	1 RU
Dimensions	11 x 6.94 x 1.74″ / 27.9 x 17.63 x 4.42 cm
Weight	4.13 lb / 1.87 kg



DIMENSIONS



INCLUDED BY DEFAULT

• ATEM 1 M/E Constellation HD
