Blackmagic ATEM 4 M/E Constellation HD

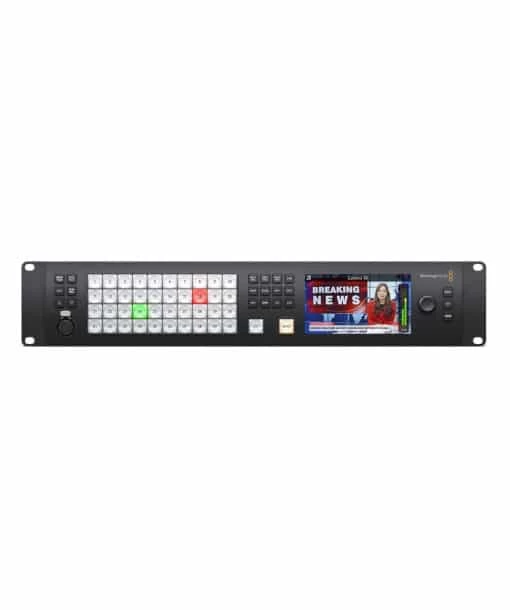

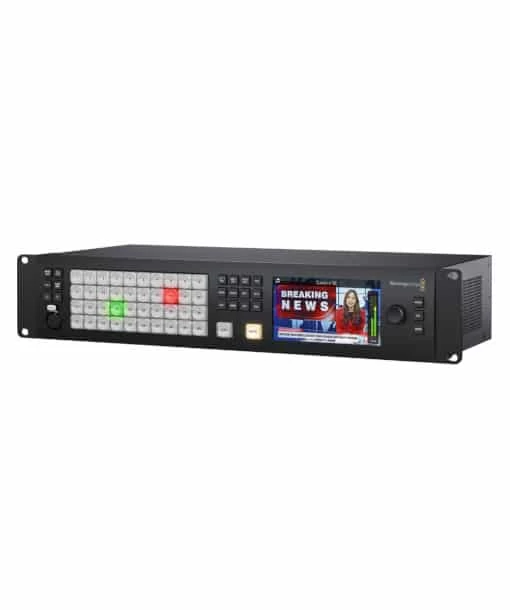

The Blackmagic Design ATEM 4 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 40 standards converted 3G‑SDI inputs and 24 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!

KEY FEATURES

• Supports 3G/HD-SDI at 10-Bit
• 40 x 3G-SDI Inputs, 24 x 3G-SDI Outputs
• 4 x 3G-SDI Multiview outputs
• Webcam Output via USB Type-C
• Frame Rate/Format Converter per Input
• 156-Channel Audio Mixer
• 16 x Upstream, 4 x Downstream Keyer
• 16 x Chroma/Luma Keyers
• Color/Pattern Generators
• Hardware or Software Mac/Windows Control

SPECIFICATIONS BLACKMAGIC ATEM 4 M/E CONSTELLATION HD

Available M/E Layers	4 M/E
Effect Types	16 x Chroma Key 21 x Luma Key 4 x DVE, Stinger
Downstream Keys	4 x Chroma, Luma, DVE
Generators	2 x Color 21 x Pattern
Audio Mixing	156-Channel Mixing

Processing

Switching Type	Pushbutton, Software
Processing Resolution	1080p
Color Processing	10-Bit 4:2:2

Input

Number of Video Input Sources	40

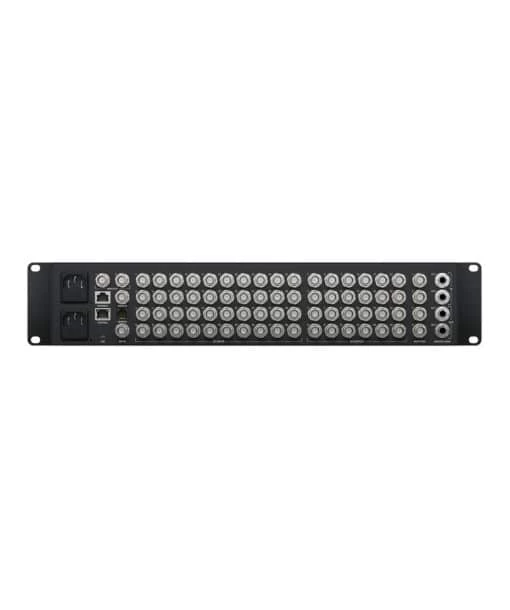

Video Input Connectors	40x BNC (3G-SDI / HD-SDI)
Input Video Format	SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Audio Input Connectors	2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out. 1 x 5 pin XLR Talkback.
Input Audio Format	Analog

Output

Video Output Channels	24
Video Output Connectors	24 x BNC (3G-SDI / HD-SDI) 1 x USB Type-C (USB Video) (Program)
Output Video Format	SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Embedded Audio Output	SDI USB Type-C
Multiview Output	4x 3G-SDI ,16-Way Multiview each

Connectivity

Other I/O	1 x BNC Blackburst, Reference, Tri-Level Sync Input 1 x RJ45 Control 1 x RJ45 Talkback Input/Output 1 x XLR 5-Pin Talkback Input/Output
Video Standard Compliance	SMPTE 292M/296M/424M/425M-A/425M-B
HDCP Support	None
IP Video	1280 x 720 to 1920 x 1080 Encoding

Display

Display Size

2.2″

Hardware

OS Compatibility	macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 *As of April, 2022: Check with manufacturer for the most up-to-date compatibility
Power Connector	1 x IEC C14 Input
Power Consumption	Device: 147 W

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90% (Non-Condensing)

General

Rack Form Factor	2 RU
Dimensions	482 (19″) x 231.3 x 88.4 mm (2U)
Weight	5.23
