Blackmagic Design ATEM Micro Panel, Live Stream Switcher

Blackmagic Design ATEM Micro Panel, Live Stream Switcher

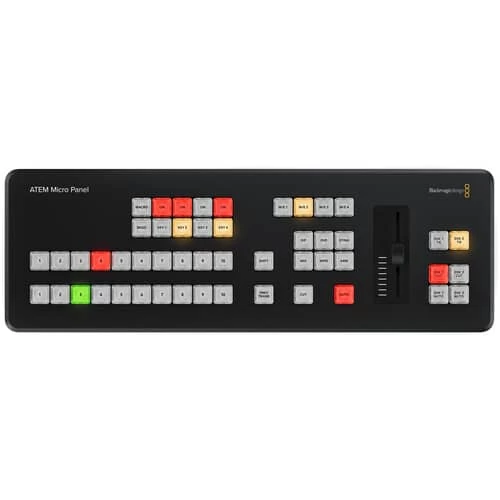

The Blackmagic Design ATEM Micro Panel turns ATEM software control interface into a physical switcher. The panel is designed to emulate the exact layout of the software with two rows of ten input buttons for both preview and program, transition controls, a macro key, and an onboard fader. This allows you to facilitate both manual and automatic control over your broadcast.

High-quality backlit buttons and a low-profile manual transition fader emulate the design of the larger ATEM Advanced Panels. The Micro Panel features a USB-C port to connect to your personal computer with ATEM Software Control. You can even wirelessly connect using the internal Bluetooth 5.1 LE signal. A large internal battery keeps the panel going for long production days and can be turned on and off with an onboard switch.

KEY FEATURES

• Works with ATEM Software Control
• Physical Switcher
• Connects via Bluetooth, USB
• 2 x 10 Input Buttons for Program/Preview
• Transition Control, Fader
• Macro Key
• 1 mix effect row
• 10 direct cross-points
• 20 shifted cross-points
• 1 preview transition
• 4 M/E select buttons
• 4 upstream key buttons
• 2 downstream key buttons
• 1 transition slider
• CUT and AUTO switching-type buttons
• DIP, DVE, STINGER, MIX, and WIPE transition-type buttons

SPECIFICATIONS ATEM Micro Panel

Model	ATEM Micro Panel
Controls	50x Pre-Labeled Key
OS Compatibility	macOS 13.0 to 14.0 Windows 10 to 11
Product Specifications

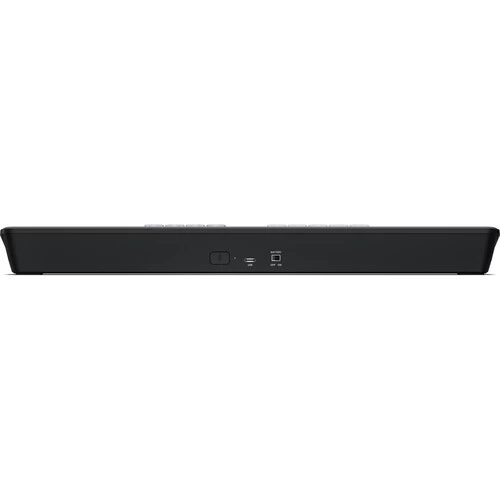

USB I/O	1x USB-C Female Input (System Connection)
Power Source	Internal battery with power switch. USB-C port for external power supply and battery charging
Operating Temperature	5 to 40°C
Dimensions	341 x 13.59 x 4.14 cm
Weight	1.05 kg
Number of Mix Effects Rows	1
Preview Transition	1
Upstream Key Buttons	4 with ON/OFF
Direct Cross Points	10
Switching Type Buttons	CUT and AUTO
Downstream Key Buttons	2 with ON/OFF
Shifted Cross Points	20
Transition Type Buttons	DIP, DVE, STINGER, MIX, WIPE
Transition Slider	1
Crosspoint Button Type	Tri-Color LED
M/E Select Buttons	4
Software Applications	ATEM Micro Panel controls ATEM Software Control Panel running on the host computer

INCLUDED BY DEFAULT

• Blackmagic Design ATEM Micro Panel
