Blackmagic Design ATEM Mini Extreme ISO Switcher

Blackmagic Design ATEM Mini Extreme ISO

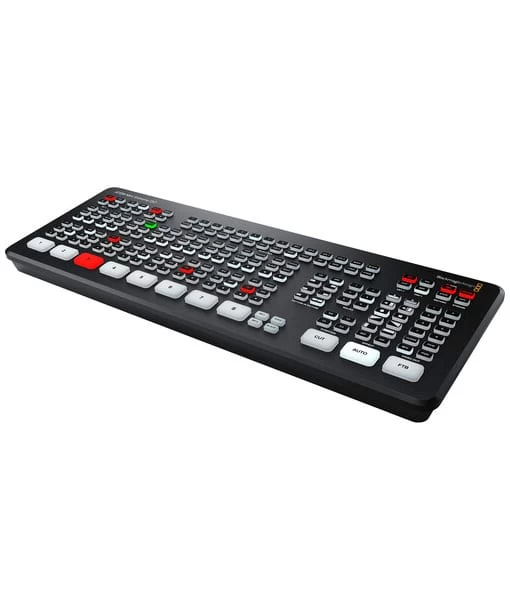

The Blackmagic Design ATEM Mini Extreme ISO is an 8-input live production switcher for live streaming. It features an integrated control panel and has advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. The switcher’s ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB Type-C ports. The switcher automatically generates a DaVinci Resolve project file, so you can clean it up and make changes later. This versatile switcher’s eight independent HDMI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.

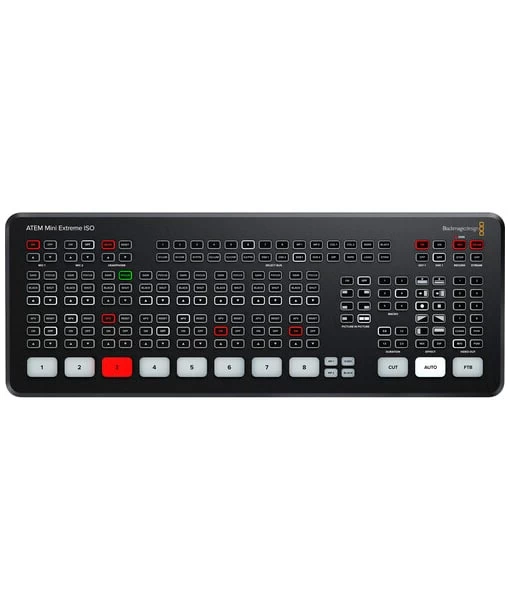

Switch, add effects, color grade, and key in real time using the control surface’s buttons, or via the software control panel. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. The ATEM Mini Extreme ISO supports up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two color generators. Designed for live streaming or webcam, the Mini Extreme ISO has HDMI outputs to feed monitors and supports up to 16-screen multiview.

KEY FEATURES

• 8-Channel HDMI Live Streaming Switcher
• Supports up to 1080p60
• RTMP Streaming via Ethernet or USB-C
• Record Program Out and Individual Inputs
• 11-Input, 2-Channel Audio Mixer
• Input Frame Rate and Format Converter
• Re-Sync on All HDMI Inputs
• HD Multiview Output with up to 16 Views
• Local and Software Switching
• 4 x Upstream, 2 x Downstream Keyers

SPECIFICATIONS BLACKMAGIC DESIGN ATEM MINI EXTREME ISO

Model	Blackmagic Design SWATEMMINICEXTISO

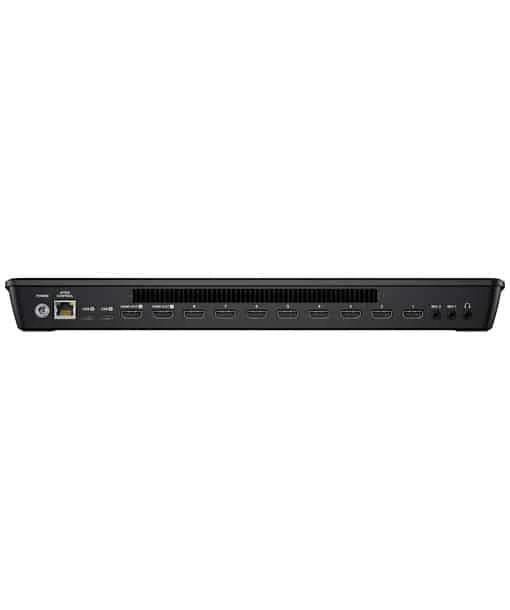

Input
Number of Video Input Sources	8
Video Input Connectors	84 x HDMI Female
Input Video Format	HDMI (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps
Audio Input Connectors	2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format	Analog
Embedded Audio Input	HDMI: 2-Channel (per Input)
Output
Video Output Channels	2
Video Output Connectors	2x HDMI
Output Video Format	HDMI / RJ45 (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output	HDMI: 2-Channel (per Output)
Multiview Output	16-Way Multiview viaHDMI
Monitor Output	2 x HDMI
Connectivity
I/O	1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output 2 x USB Type-C Firmware, Control Input/Output
IP Encoding/Decoding
IP Video	H.264: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols	RTMP
Simultaneous Streams	1 stream
Internal Recording	1920x1080p up to 60 fps (MP4)
OS Compatibility	macOS 10.14 or Later Windows 10
Power Connector	1 x Barrel (12 VDC) Input
Power Consumption	36 W
Operating Temperature	5 to 40°C
Dimensions	36.98 x 13.64 x 3.96 cm
Weight	1.23kg

INCLUDED BY DEFAULT

• ATEM Mini Extreme ISO
• External 12V DC power supply with international socket adapters
