Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher

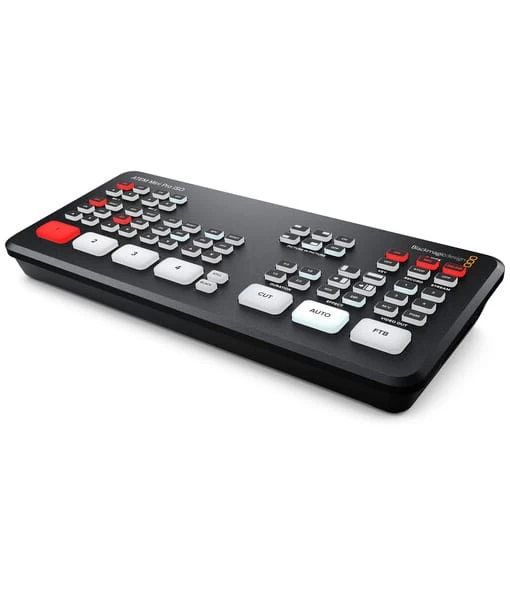

The ATEM Mini Pro ISO HDMI Live Stream Switcher from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.

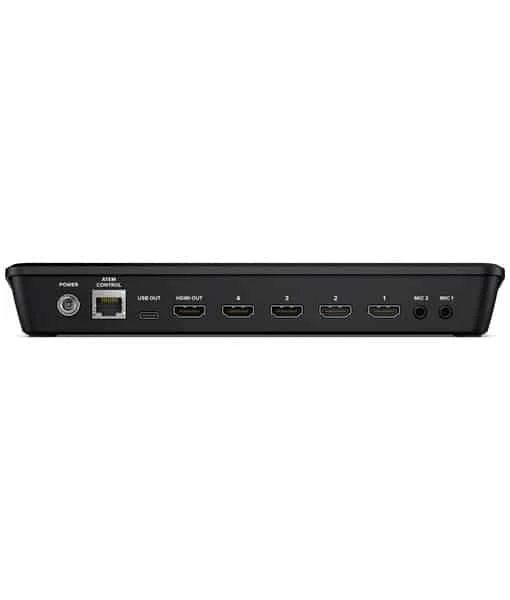

The ATEM Mini Pro ISO retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file. The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.



KEY FEATURES

• Connecting a USB drive to the ATEM Mini Pro ISO’s USB port enables capturing the switched program stream, as well as up to four isolated (ISO) recordings of input video, as well as embedded audio, analog input audio, graphics, and a DaVinci Resolve project file of your switched program
• The device has the same footprint, layout, and connections of the ATEM Mini Pro
• Stream video up to 1080p HD
• Direct Streaming using RTMP over ethernet or a shared mobile internet connection over USB‑C
• Quick stream, on-air, and record buttons
• Hardware encoder so there’s no need for additional streaming software
• Control and configure timecode, stream status
• Full support and control features for BMPCC 6K/4K cameras
• Simultaneous USB recording
• Integration with MultiDock for live hard drive switching
• Customize advanced settings with XML files
• Software multiview with program previews, graphics, record status, on-air status, and audio meters
• Program preview input and output buttons
• Tally light control for BMPCC 6K/4K cameras
• Automatic timecode sync for all cameras

SPECIFICATIONS BLACKMAGIC DESIGN ATEM MINI PRO ISO

Model	Blackmagic Design SWATEMMINIBPRISO
Input
Number of Video Input Sources	4
Video Input Connectors	4 x HDMI Female
Input Video Format	HDMI (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps
Audio Input Connectors	2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format	Analog
Embedded Audio Input	HDMI: 2-Channel (per Input)
Output
Video Output Channels	1
Video Output Connectors	1x HDMI
Output Video Format	HDMI / RJ45 (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output	HDMI: 2-Channel (per Output)
Multiview Output	Yes
Monitor Output	1 x HDMI
Connectivity
I/O	1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output 1 x USB Type-C Firmware, Control Input/Output
IP Encoding/Decoding
IP Video	H.264: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols	RTMP
Simultaneous Streams	1 stream
General
OS Compatibility	macOS 10.14 or Later Windows 10
Power Connector	1 x Barrel (12 VDC) Input
Power Consumption	36 W
Operating Temperature	5 to 40°C
Dimensions	23.75 x 10.34 x 3.51 cm
Weight	550 g

INCLUDED BY DEFAULT

• ATEM Mini Pro ISO
• External 12V DC power supply with international socket adapters
