Blackmagic Design DaVinci Resolve Mini Panel with Resolve Studio Software

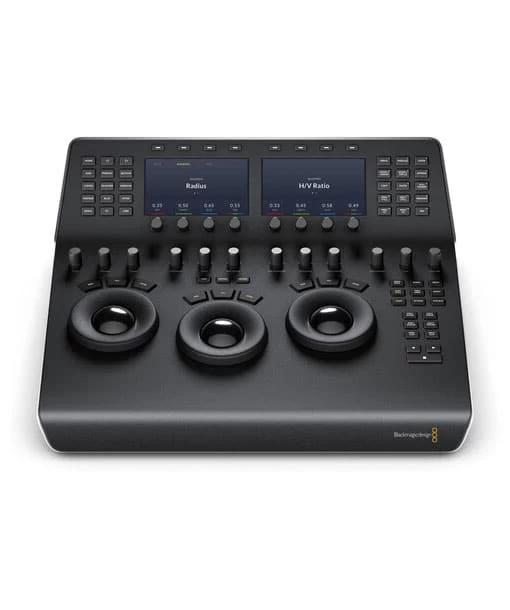

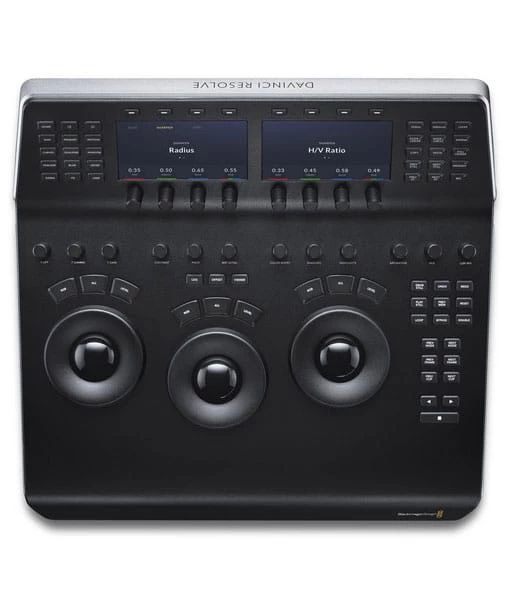

The Blackmagic DaVinci Resolve Mini Panel is a step up in functionality from the Micro panel but without all the features of the Advanced panel, and it includes DaVinci Resolve Studio software. It is a portable control surface suitable for those that need to switch between editing and color grading. It can sit on your desktop or in a rack or can be bolted to a surface. As with the Micro panel, it features three high-resolution, weighted trackballs and 12 control knobs for accessing essential primary color-correction tools in the Resolve software. Eighteen dedicated keys on the right side also give you access to the most commonly used grading features and playback controls.

However, the Mini Panel also features two LCD screens that allow you to display menus or the parameters of the tools you are working with. Eight customizable soft knobs provide precise control and a quick reset by pushing the knob. Dedicated feature buttons allow you to change tools without needing to use the mouse. The Mini panel incorporates both USB-C and Ethernet interfaces. It is compatible with Mac, Windows, and select Linux systems. You can power the panel via an AC power source, a 4-pin XLR connector, or PoE. For the panel to work with Resolve, your computer must be running DaVinci Resolve 14.3 or DaVinci Resolve Studio 14.3 or later.

KEY FEATURES

• 3 x High-Resolution Trackballs
• 12 x Primary Correction-Control Knobs
• 18 x Navigation and Transport Keys
• Dedicated Feature Buttons
• 2 x LCD Information Display Screens
• Backlit and Illuminated Buttons
• USB-C and Ethernet Interface
• Supports Mac and Windows
• Supports Select Linux Installations

SPECIFICATIONS

Controls	68x Pre-Labeled Key 20x Dial 3x Trackball
Display	2x 5″ Color LCD
OS Compatibility	macOS 10.15 or Later Windows 10 or Later CentOS 7.3 or Later
USB I/O	1x USB-C Female Input
Network I/O	1x Gigabit Ethernet (Supports PoE) 1x Gigabit Ethernet

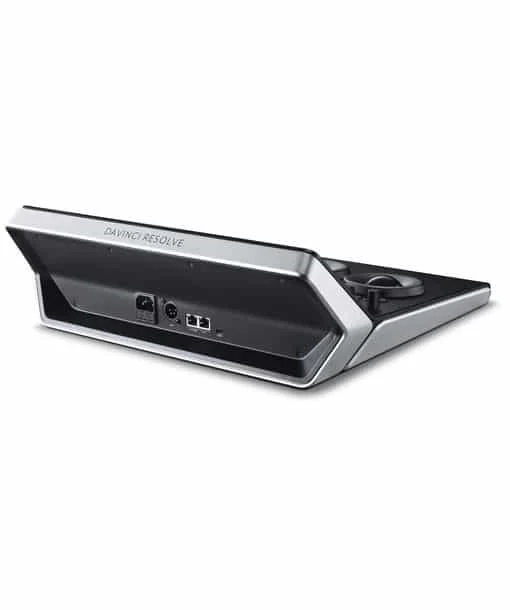

Power I/O	1x IEC-14 Input 1x XLR 4-Pin Input
Power Source	AC Adapter with Power Brick, PoE
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 1.5 A
DC Input Power	12 VDC
Power Consumption	17 W (Maximum)
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Operating Humidity	0 to 90%

INCLUDED BY DEFAULT

• Blackmagic Design DaVinci Resolve Mini Panel with Resolve Studio Software
• Blackmagic Design DaVinci Resolve Studio (Activation Key)
