Blackmagic Design DeckLink Duo 2 Mini

Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card

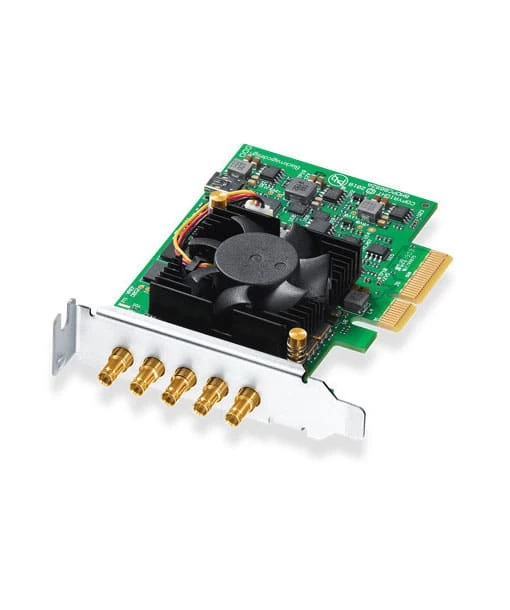

The Blackmagic Design DeckLink Duo 2 Mini is a low-profile PCIe card that features four bidirectional mini BNC SDI inputs/outputs. These multi-rate connections accept 3G/HD/SD-SDI input and output signals, providing support for resolutions from SD to HD 1080p60. Additionally, the DeckLink Duo 2 Mini includes a reference input and supports 16 channels of 48 kHz 24-bit audio.

The DeckLink Duo 2 Mini offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. The DeckLink Duo 2 Mini is compatible with macOS, Windows, and Linux-based workstations. Drivers and utility software are included on an SD card for the supported platforms.

KEY FEATURES

• 4x Mini 3G/HD/SD-SDI Input/Output
• Low-profile PCIe x4 capture/playback card
• Compatible with 4, 8 and 16 Lane PCI Express Slots
• Up to 1080p60 capture/playback
• 8-/10-bit 4:2:2 in all modes up to 1080p30
• 12-bit 4:4:4 up to 1080p30 in playback mode
• HD to SD downconversion
• SD to HD upconversion
• Hardware cross conversion between 720p and 1080p on playback
• Rec. 601 and Rec. 709 color space
• BNC reference input
• Blackburst and tri-sync
• Supports 16 channels of embedded 24-bit 48 kHz SDI audio in HD and SD resolutions
• macOS, Windows, and Linux Compatible

SPECIFICATIONS BLACKMAGIC DESIGN DECKLINK DUO 2 MINI

Model	BDLKDUO2LP
Host Connection	PCIe x4 (PCIe 2.0)
Shared Input/Output Connectors	4 x Mini BNC 3G-SDI (Bidirectional, 12-Bit SD/HD)
Video Format	HD: 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF: 23.98, 24, 25, 29.97, 30 1080i: 50, 59.94, 60 720p: 50, 59.94, 60SD: 525i: 59.94 NTSC 625i: 50 PAL
Input Audio Format	24-Bit, 48 kHz
Embedded Audio Input	16 x Embedded, HD and SD (Input and Output)
Video Standard Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
Other I/O	1 x Reference In – Tri-Sync or Black Burst
OS Compatibility	Windows 8.1.10 or Later macOS 10.14.15 or Later Linux
Power Consumption	10 W
Operating Temperature	5 to 40°C
Length	9.9 cm, Low-Profile Form Factor
Weight	87 g

INCLUDED BY DEFAULT

• Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card
