Blackmagic Design DeckLink Mini Monitor

Blackmagic Design DeckLink Mini Monitor

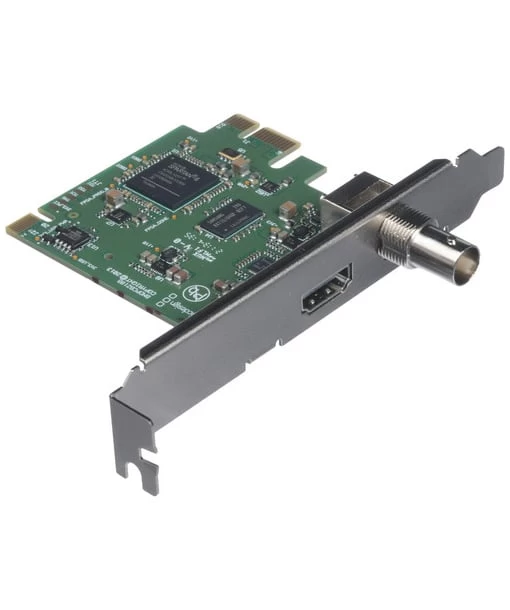

The Blackmagic Design Decklink Mini Monitor is a 1-lane PCIe slot playback card with SDI and HDMI outputs, compatible with 1-, 4-, 8-, and 16-lane PCIe slots. In contrast to a full capture and playback input/output card, the DeckLink Mini Monitor provides you with just the playback and monitoring functionality for performing color-correction and delivering client presentations on high-resolution HDMI or SDI monitors. The card supports up to 1080p30 formats and it outputs up to 10-bit uncompressed video.

You can output via both the SDI and HDMI connections simultaneously or just one of them. The outputs are active and begin functioning right away when you plug into them. The card also automatically switches between SD and HD formats, so it’ll handle all common video formats. Two PCIe shields are included for both full-height and low-profile PCIe slots.

KEY FEATURES

• Playback and monitoring functionality for color-correction and client presentations on high-resolution monitors
• SDI output, 10-bit SD/HD switchable, supports 8 channels of embedded audio
• HDMI output, supports 8 channels of embedded audio
• Supports up to 1080p30 resolution
• Outputs up to 10-bit uncompressed video
• Support for YUV 4:2:2 sampling and 48 kHz/24-bit audio sampling
• REC 601/709 color space support
• Hardware-based real-time color space conversion
• Software-based down conversion during video playback
• Software-based cross conversion from 720p to 1080 HD on playback

SPECIFICATIONS BLACKMAGIC DESIGN MINI MONITOR

Model	BDLKMINIMON
Host Connection	PCIe x1 (PCIe 1.0)
Video Output Connectors	1 x HDMI (HDMI 1.4a) 1 x BNC (SD-SDI)
Output Video Format	HDMI (8/10-Bit 4:2:2 YUV) NTSC: 59.94 fps PAL (768 x 576): 50 fps 720p: 50/59.94/60 fps 1080p: 23.98/24/25/29.97/30 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps
Audio Output Connectors	No
OS Compatibility	Windows 8.1 or Later macOS 10.14 or Later Linux
Power Consumption	4 W
Operating Temperature	5 to 40°C
Dimensions / Weight	10.01 cm / 56 g

INCLUDED BY DEFAULT

• Blackmagic Design DeckLink Mini Monitor
• SD Card with Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows; Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
• Full-Height PCIe Shield
• Low-Profile PCIe Shield
