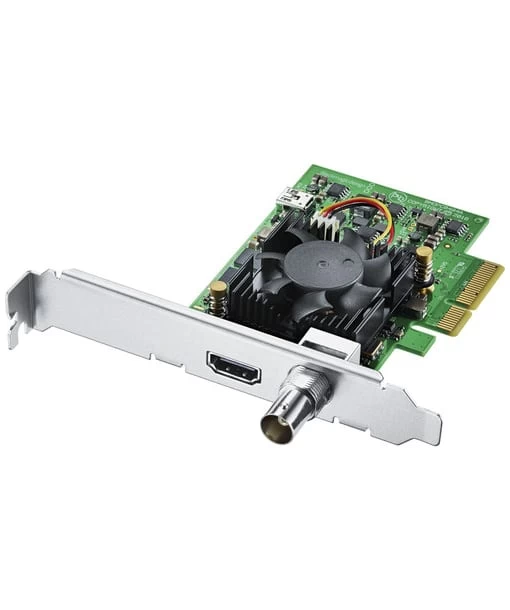

Blackmagic Design DeckLink Mini Monitor 4K

Blackmagic Design DeckLink Mini Monitor 4K

With the DeckLink Mini Monitor 4K from Blackmagic Design you can play out 4K content to high-resolution monitors and recorders in real-time from your compatible edit system. A 6G-SDI (backward compatible with SD, HD, and 3G variants) and HDMI 2.0 terminals are on the output panel of the card, so you can connect to professional broadcast equipment and displays or consumer monitors and televisions, respectively.

Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution output of nearly any project. Wide software support including Blackmagic Design’s own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple’s Final Cut Pro X, Avid’s Media Composer, and Adobe’s Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.

The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.

KEY FEATURES

• Color Space Conversion: Hardware-based, real-time color space conversion
• HD Down-Conversion: Software-based down-conversion during video playback
• Real-Time Effects: Supports real-time effects from Final Cut Pro X, Premiere Pro CC Mercury Playback Engine, and Avid Media Composer Effects
• SD/HD/3G/6G-SDI Output
• HDMI Output
• PCI-Express 2.0 x4 Interface
• DCI 4K, UHD, HD, and SD Video Support
• 10-Bit Processing
• Hardware Color Space Conversion
• Software HD Down-Conversion
• MacOS X, Windows, and Linux Compatible

SPECIFICATIONS BLACKMAGIC DESIGN MINI MONITOR 4K

Model	BDLKMINIMON4K
Host Connection	PCIe x4 (PCIe 2.0)
Video Output Connectors	1 x BNC (6G-SDI) Female 1 x HDMI (HDMI 2.0a) Female
Output Video Format	SDI (8/10-Bit 4:2:2 YUV) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps PAL (768 x 576) NTSC HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps PAL (768 x 576) NTSC
Audio Embedded Output	SDI: 16-Channel HDMI: 8-Channel
OS Compatibility	Windows 8.1 or Later macOS 10.14 or Later Linux
Power Consumption	10 W
Operating Temperature	0 to 40°C
Dimensions / Weight	11.49 cm / 90 g

INCLUDED BY DEFAULT

• Blackmagic Design DeckLink Mini Monitor 4K
• Low-Profile Bracket
